Positioning Accuracy ±0.008 HMC 800 CNC Horizontal Machining Center for Smooth Milling
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $38,800.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | Horizontal |
| Dimension(L*W*H): | 6200x4800x3800 | Weight (T): | 15 T |
| Table Size (mm): | 800x800 | CNC Control System: | GSK, FANUC, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1600 |
| Table Travel (Y) (mm): | 1000 | Table Travel (Z) (mm): | 1100 |
| Positioning Accuracy (mm): | ±0.008 | Repeatability (X/Y/Z) (mm): | ±0.005 |
| Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m | Spindle Motor Power(kW): | 15/18.5 |
| Max. Table Load(kg): | 2500 Kg | Min. Time Of Tool Change(s): | 5 |
| Tool Magazine Capacity: | 40 | Key Selling Points: | High-accuracy |
| Warranty: | 1 Year | Voltage: | 380V/50H |
| Marketing Type: | Hot Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | Horizontal Machining Center | Machine Type: | HMC CNC Milling Machine |
| Application: | Metal Machining | Keywords: | Horizontal Machine Center HMC |
| Product Type: | Machining Center Cnc Mill Machine | CNC Or Not: | CNC Systemn |
| Processing: | Metal Cutting Cnc Milling Machine | Longitudinal Travel (X): | 1600mm |
| Cross Travel (Y): | 1000mm | Vertical Travel (Z): | 1100mm |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining | Showroom Location: | Egypt, Canada, Turkey, Brazil, Indonesia, India, Thailand, Chile, Romania, Bangladesh, South Africa, Malaysia, Australia |
| Core Components: | Motor | Rapid Feed Speed(m/min): | 24/24/24 |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description

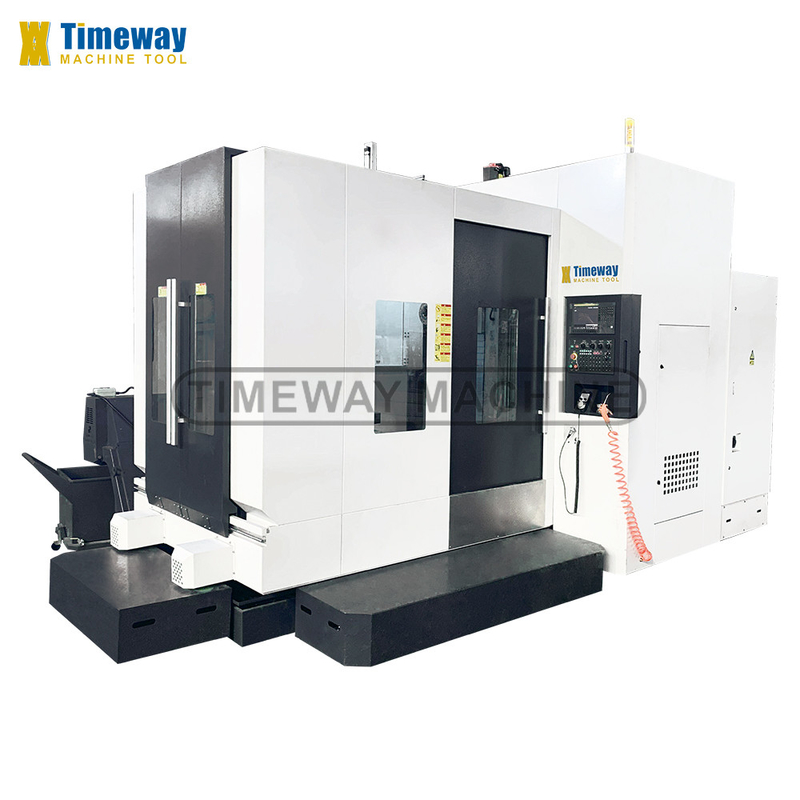

Horizontal Machining Center HMC800
Specification
Specification | Unit | HMC800 |

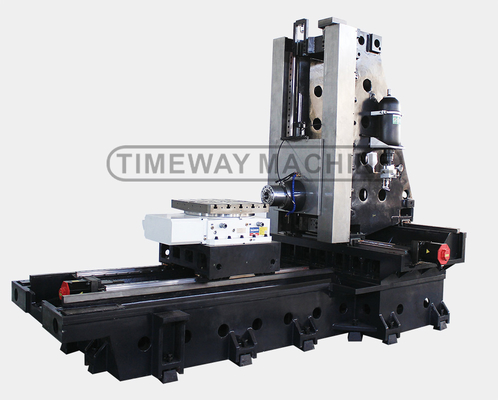

Machine structure | - | Positive T-type |
X-axis travel | mm | 1600 |
Y-axis travel | mm | 1000 |
Z-axis travel | mm | 1100 |
B-axis servo motor torque (FANUC) | - | Bis22 |

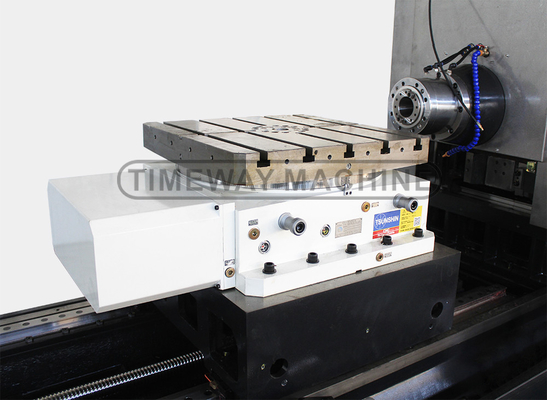

Table size | mm | 800×800 |
Table indexing | ° | 1°×360 |
T-slots (No./width/pitch) | - | 6-22-125 |
Table rotation speed | rpm | 11.1 |
Loading capacity | kg | 2500 |
Locking force (35kg / cm2) | kg/m | 5000 |
Distance spindle center to table | mm | 0-1000 |
Distance spindle nose to table center | mm | 180-1180 |

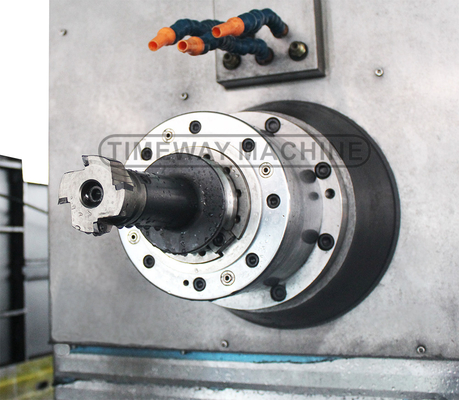

Spindle taper | - | BT-50 |
Spindle speed | rpm | 6000 |
Main motor power | kw | 15/18.5 |
X/Y/Z-axis servo motor (FANUC) | - | Bis40/Bis40/Bis40 |
X/Y/Z-axis cutting feed speed | mm/min | 1-8000 |
X/Y/Z-axis rapid feed speed | m/min | 24/24/24 |
X/Y/Z-axis rails type | - | Linear |
X/Y/Z-axis positioning accuracy | mm | ±0.008 |
X/Y/Z-axis repeat positioning accuracy | mm | ±0.005 |
B-axis positioning accuracy | " | ±10" |
ATC capacity (style) | tools | 40 (Chain) |
Tool change time (tool to tool) | sec | 5 |
Max. tool weight | kg | 20 |
Max. tool diameter | mm | Φ125/Φ230 |
Max. tool length | mm | 300 |
Power supply | Kva | 50 |
Air pressure require | kg/cm2 | 8 |
Machine weight | kg | 15000 |
Machine dimension (LxWxH) | mm | 6200×4800×3800 |
