ExchangeTable HMC630 APC CNC Horizontal Machining Center for Your Machining Needs
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,660.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | Horizontal |
| Weight (T): | 11 T | Table Size (mm): | 630x630 |
| CNC Control System: | GSK, FANUC, Siemens | Number Of Axes: | 3 |
| Table Travel (X) (mm): | 1050 | Table Travel (Y) (mm): | 750 |
| Table Travel (Z) (mm): | 900 | Positioning Accuracy (mm): | ±0.01 |
| Repeatability (X/Y/Z) (mm): | ±0.006 | Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m |
| Spindle Motor Power(kW): | 15/22 | Max. Table Load(kg): | 950 Kg |
| Min. Time Of Tool Change(s): | 5 | Tool Magazine Capacity: | 60(Chain) |
| Key Selling Points: | Competitive Price | Warranty: | 1 Year |
| Voltage: | 380V/50H | Marketing Type: | Hot Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | Horizontal Machining Center |
| Machine Type: | HMC CNC Milling Machine | Application: | Metal Machining |
| Keywords: | Horizontal Machine Center HMC | Product Type: | Machining Center Cnc Mill Machine |
| CNC Or Not: | CNC Systemn | Processing: | Metal Cutting Cnc Milling Machine |
| Longitudinal Travel (X): | 1050mm | Cross Travel (Y): | 750mm |
| Vertical Travel (Z): | 900mm | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining |
| Showroom Location: | Egypt, Canada, Turkey, Viet Nam, Brazil, Indonesia, India, Thailand, Morocco, Chile, Romania, South Africa, Malaysia, Australia | Core Components: | Motor |
| Rapid Feed Speed(m/min): | 45/45/45 | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description

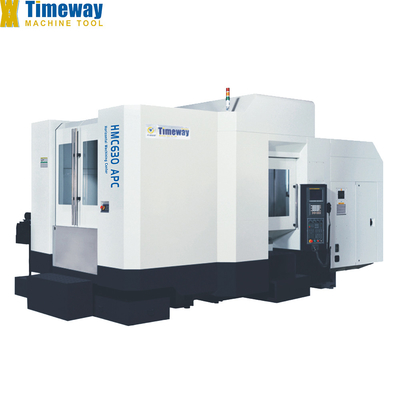

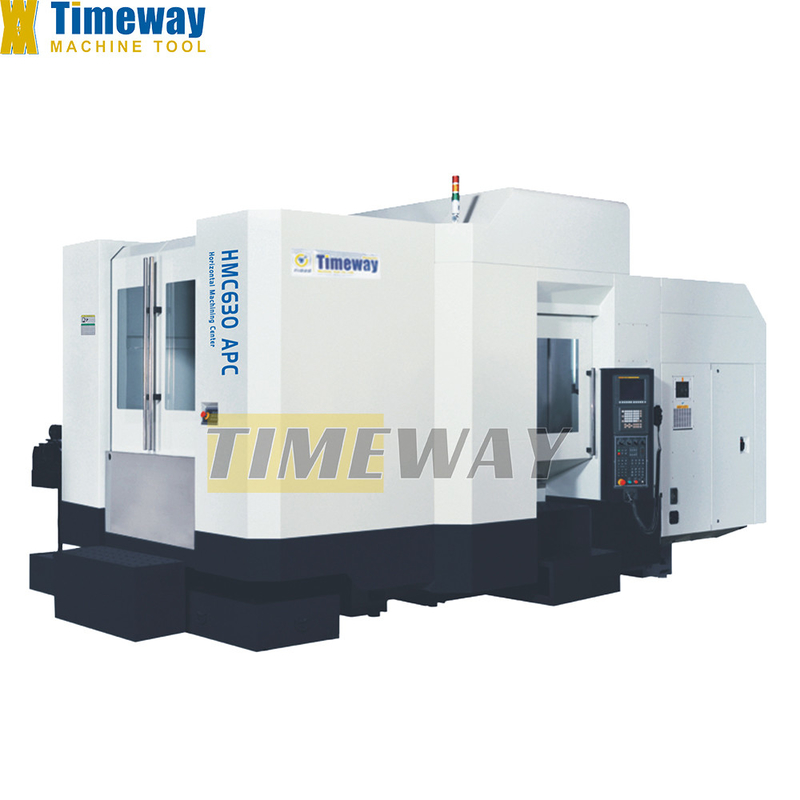

Horizontal Machining Center HMC630 APC
Specification
Specification | Unit | HMC630 APC |
Wortable size | mm | 630x630 |
Worktable number | pcs | 2 |
Worktable indexing | ° | 0.001° |
T-slot of worktable (No.-sizexdistance) | - | 24xM16 |
Max. swing of workpiece | mm | 820 |
Worktable rotation speed (B) | rpm | 10 |
Worktable gear ratio | - | 160 |
Pallet exchange gear ratio | - | 240 |
Pallet exchange style | - | Rotating type |
Pallet exchange time | s | 24 |
Worktable loading capacity | kg | 950 |
X axis travel | mm | 1050 |
Y axis travel | mm | 750 |
Z axis travel | mm | 900 |
Distance from spindle center to worktable | mm | 0-750 |
Distance from spindle nose to wortable center | mm | 130-1030 |
Spindle taper | - | BT50 |
Max. spindle speed | rpm | 6000 |
ATC style/station | - | 60 (Chain) |
X/Y/Z-axis rapid feed speed | m/min | 45/45/45 |
X/Y/Z-axis guideway type | - | Linear |
X/Y/Z-axis positioning accuracy | mm | 0.01 |
X/Y/Z-axis repositioning accuracy | mm | 0.006 |
B-axis positioning accuracy | " | 10" |
B-axis repositioning accuracy | " | 5" |
Main motor power | kw | 15/22 |
X/Y/Z-axis feed motor torque | NM | 30/30/30 |
B-axis feed motor torque | NM | 12 |
APC servo motor torque | NM | 8 |
Machine weight | kg | 11000 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction

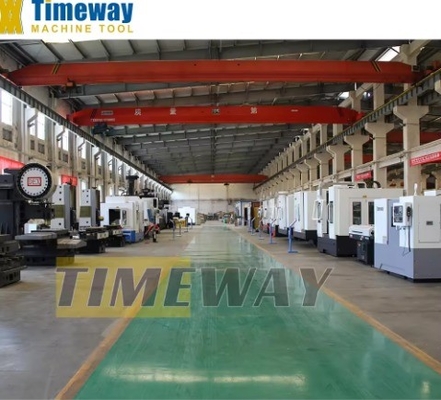

Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
