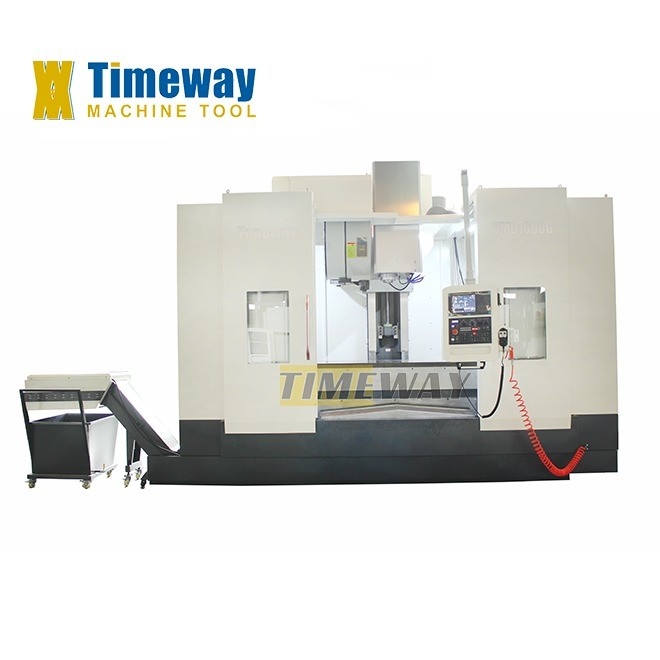

4300 2920 3710mm Worktable Size VMC1690G Vertical Machining Center CNC Milling Machine
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $22,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Weight (T): | 13 T | Table Size (mm): | 1800*900 |

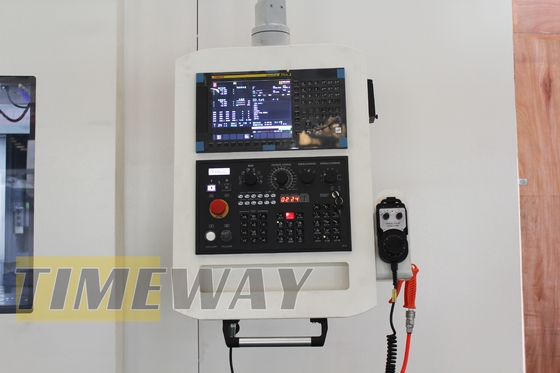

| CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens | Number Of Axes: | 3 |
| Table Travel (X) (mm): | 1600 | Table Travel (Y) (mm): | 900 |
| Table Travel (Z) (mm): | 800 | Positioning Accuracy (mm): | ±0.003 |
| Repeatability (X/Y/Z) (mm): | ±0.003 | Range Of Spindle Speed(r.p.m): | 6000 - 20000 R.p.m |
| Spindle Motor Power(kW): | 18.5/22 | Max. Table Load(kg): | 1600 Kg |
| Min. Time Of Tool Change(s): | 6 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | High-accuracy | Warranty: | 1 Year |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | 3-axis Vertical Cnc Machining Center | Machine Type: | Vertical CNC Milling Machine |
| Keywords: | Vmc Machine Center | CNC Or Not: | CNC Systemn |
| Application: | General Machinery Processing | Precision: | High Precision Vertical Milling Center |
| Longitudinal Travel (X): | 1600mm | Cross Travel (Y): | 900mm |
| Vertical Travel (Z): | 800mm | Worktable Size: | 4300 2920 3710mm |
| Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa | Rapid Feed Speed(m/min): | 20 |
| Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other | Core Components: | Other |
Product Description
Product Description
Specification
Specifications | VMC1690G |

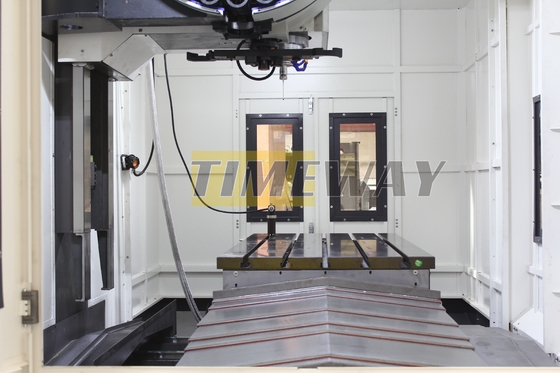

Worktable size (LxW) | 1800×900mm |
T-slot (No./width/pitch) | 5-22-165mm |
Loading capacity | 1600kg |
Longitudinal travel (X) | 1600mm |
Cross travel (Y) | 900mm |
Vertical travel (Z) | 800mm |
Distance from spindle nose to table | 160-960mm |
Distance from spindle center to column | 960mm |
Spindle taper | BT50 (190) |
Spindle speed | 6000rpm |
X/Y/Z-axis rapid feed speed | 20/20/20m/min |
X/Y/Z-axis servo motor (FANUC) | β40/β40/β40 |
X/Y/Z-axis positioning accuracy | ±0.003/300mm |
X/Y/Z-axis repositioning accuracy | ±0.003/300mm |
Main motor power | 18.5/22kw |
Air pressure source | 6-8kg/cm2 |
Power capacity | 40Kva |

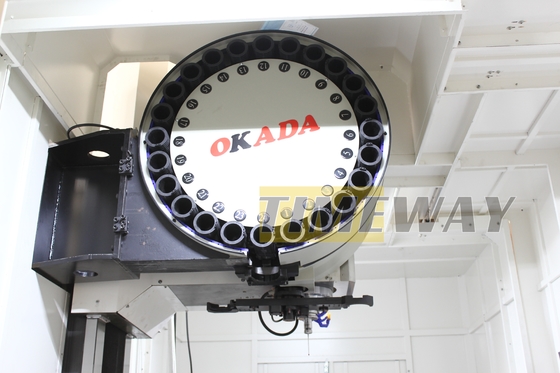

Tool magazine capacity | 24 (Disc) Tools |
Guideway type | Linear |
Machine weight | 13000kg |
Machine dimensions (LxWxH) | 4300×2920×3710mm |
MAIN CONFIGURATION & ACCESSORIES:
1. Resin sand casting;
2. X, Y, Z rails adopts imported linear guideway;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
7. Imported bearings for leadscrews;
2. X, Y, Z rails adopts imported linear guideway;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
7. Imported bearings for leadscrews;
OPTIONAL CONFIGURATION & ACCESSORIES:
1. The 4th axis wiring;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
