High Precision VMC1890 Vertical CNC Machining Center with 0.008mm Repeatability X/Y/Z
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,600.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT-50 (190) |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | VERTICAL |
| Dimension(L*W*H): | 4590x3960x3440 | Weight (T): | 15 T |

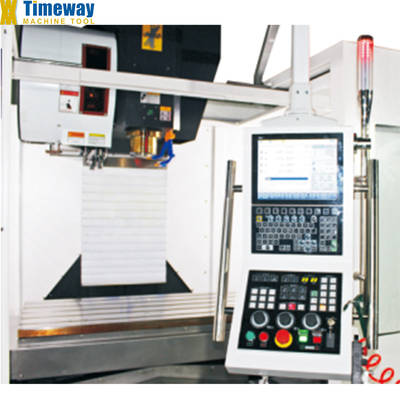

| Table Size (mm): | 2000x900 | CNC Control System: | GSK, FANUC, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1800 |
| Table Travel (Y) (mm): | 900 | Table Travel (Z) (mm): | 680 |
| Positioning Accuracy (mm): | 0.01 | Repeatability (X/Y/Z) (mm): | 0.008 |
| Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m | Spindle Motor Power(kW): | 18.5/22 |
| Max. Table Load(kg): | 1600 Kg | Min. Time Of Tool Change(s): | 2 |
| Tool Magazine Capacity: | 24 (Disc) | Key Selling Points: | Competitive Price |
| Warranty: | 1 Year | Voltage: | 380V/50H |
| Marketing Type: | Hot Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | CNC Vertical Machining Center | Machine Type: | VMC CNC Milling Machine |
| Application: | Metal Machining | Keywords: | Vertical Machine Center VMC |
| Product Type: | Machining Center Cnc Mill Machine | CNC Or Not: | CNC Systemn |
| Processing: | Metal Cutting Cnc Milling Machine | Longitudinal Travel (X): | 1800mm |
| Cross Travel (Y): | 900mm | Vertical Travel (Z): | 680mm |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Energy & Mining | Showroom Location: | Egypt, Canada, Turkey, Brazil, Peru, India, Spain, Romania, South Africa, Malaysia, Australia |
| Core Components: | Motor | Rapid Feed Speed(m/min): | 15/15/15 |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Summary
1.This is a vertical machining center.lt has a high-edge configuration and can work automatically.lt can provide high precision operation with Taiwan Precision Spindle,Taiwan Carousel ATC,Cross-type,Table,Full closed protection.
3.Standard with belt driven spindle, optional for direct driven spindle, gear head for all models.

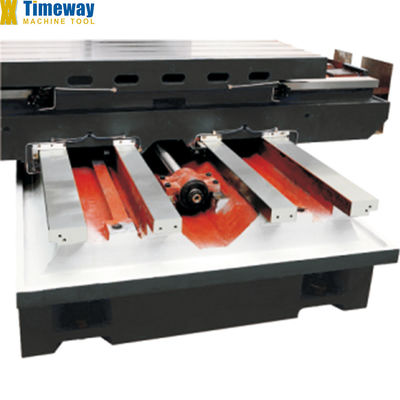

2.X, Y, Z rails are quenching - plastic sliding guide rail pair; X, Y, Z rails adopt stainless steel telescopic cover;
3.Standard with belt driven spindle, optional for direct driven spindle, gear head for all models.
Product Description
Vertical Machining Center VMC1890
Specification
Specification | Unit | VMC1890 |

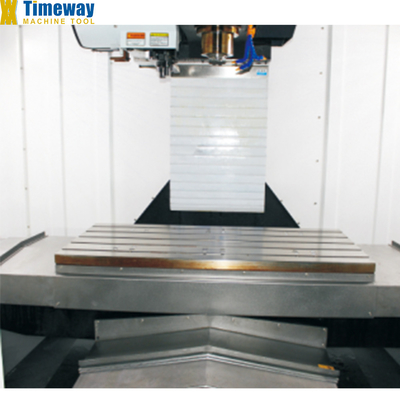

Worktable size (LxW) | mm | 2000×900 |
T-slot (No./width/pitch) | mm | 5-22-165 |
Loading capacity | kg | 1600 |
Longitudinal travel (X) | mm | 1800 |
Cross travel (Y) | mm | 900 |
Vertical travel (Z) | mm | 680 |
Distance from spindle nose to table | mm | 160-840 |
Distance from spindle center to column | mm | 950 |
Spindle taper | - | BT-50 (190) |
Spindle speed | rpm | 6000 |
X/Y/Z-axis rapid feed speed | m/min | 15/15/15 |
X/Y/Z-axis servo motor (FANUC) | - | β40/β40/β40 |
X/Y/Z-axis positioning accuracy | mm | ±0.01 |
X/Y/Z-axis repositioning accuracy | mm | ±0.008 |
Main motor power | kw | 18.5/22 |
Air pressure source | kg/cm2 | 6-8 |
Power capacity | Kva | 40 |

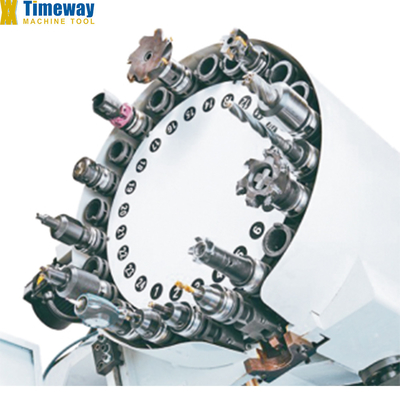

Tool magazine capacity | T | 24 (Disc) |
Guideway type | - | Sliding |
Machine weight | kg | 15000 |
Machine dimensions (LxWxH) | mm | 4590×3960×3440 |
