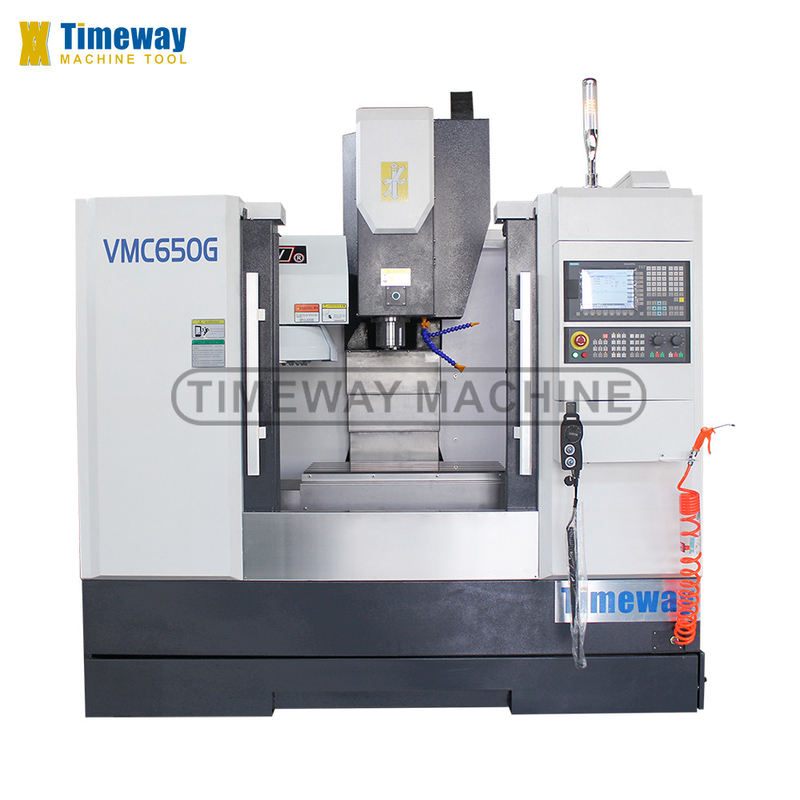

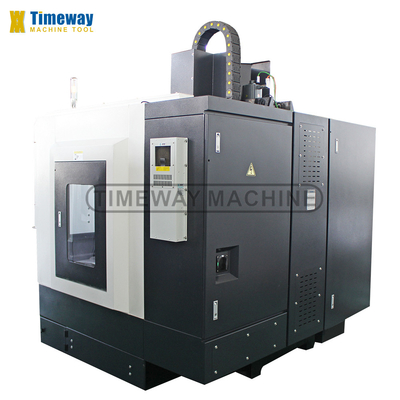

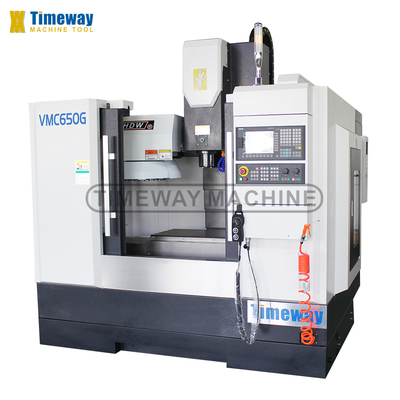

General Machinery Processing VMC650G CNC Milling Machine with 450mm Table Travel Z
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Weight (T): | 4.2 T | Table Size (mm): | 1000 420 |
| CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens | Number Of Axes: | 3, 4 |
| Table Travel (X) (mm): | 700 | Table Travel (Y) (mm): | 450 |
| Table Travel (Z) (mm): | 450 | Positioning Accuracy (mm): | ±0.003/300 |
| Repeatability (X/Y/Z) (mm): | ±0.003/300 | Range Of Spindle Speed(r.p.m): | 8000 - 20000 R.p.m |
| Spindle Motor Power(kW): | 7.5/11 | Max. Table Load(kg): | 400 Kg |
| Min. Time Of Tool Change(s): | 6 | Tool Magazine Capacity: | 12 |
| Key Selling Points: | High Safety Level | Warranty: | 1 Year |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | 3-axis Vertical Cnc Machining Center | Machine Type: | Vertical CNC Milling Machine |
| CNC Or Not: | CNC Systemn | Application: | General Machinery Processing |
| Precision: | High Precision High Accuracy | After-sales Service Provided: | Online Support |
| Guideways: | Linear Guideway | Keywords: | Vmc Machine Center |
| Spindle Speed: | 8000rpm | T-slot (No./width/pitch): | 5-18-80mm |
| Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other |
| Core Components: | Other | ||
Product Description
Product Description
Specification
Specification | vmc650G |
Worktable size (LxW) | 1000×420mm |
T-slot (No./width/pitch) | 5-18-80mm |
Loading capacity | 5-18-80kg |
Longitudinal travel (X) | 700mm |
Cross travel (Y) | 450mm |
Vertical travel (Z) | 450 |
Vertical travel (Z) | 130-630mm |
Distance from spindle center to column | 495mm |
Spindle taper | BT-40 |
Spindle speed | 8000rpm |
X/Y/Z-axis rapid feed speed | 48/48/48m/min |
X/Y/Z-axis servo motor (FANUC) | β12/β12/β22 |
X/Y/Z-axis positioning accuracy | ±0.003/300mm |
X/Y/Z-axis repositioning accuracy | ±0.003/300mm |
Main motor power | ±0.003/300kw |
Air pressure source | 7.5/11kw |
Power capacity | 6-8kg/cm2 |
Tool magazine capacity | 12 (Crousel)tools |
Guideway type | Linear |
Machine weight | 3500kg |
Machine dimensions (LxWxH) | 2400×1900×2400mm |
MAIN CONFIGURATION & ACCESSORIES:
1. Resin sand casting;
2. X, Y, Z rails adopts imported linear guideway;

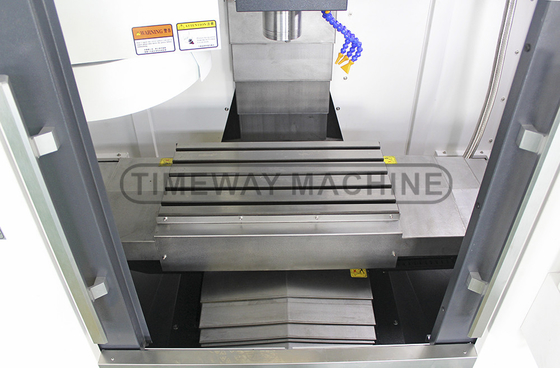

3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle, gear head for VMC1060, VMC1270;
5. Taiwan production pneumatic cylinder;

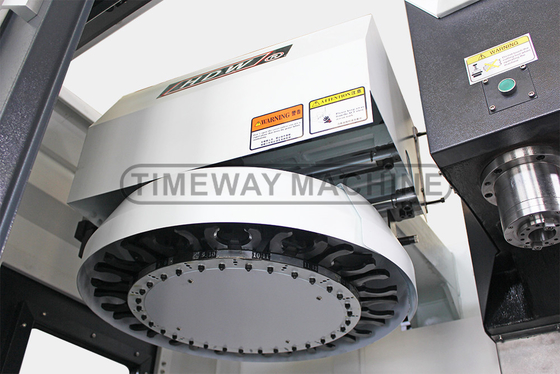

6. Taiwan ATC, carousel type and disc type are available as option;
2. X, Y, Z rails adopts imported linear guideway;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle, gear head for VMC1060, VMC1270;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
etc.
OPTIONAL CONFIGURATION & ACCESSORIES:
1. The 4th axis wiring;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
