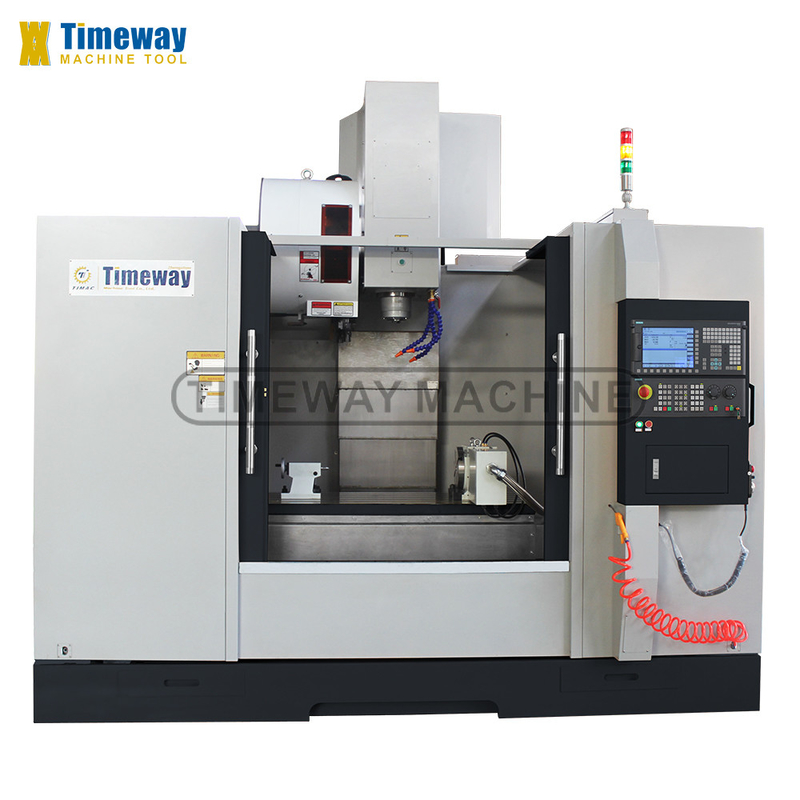

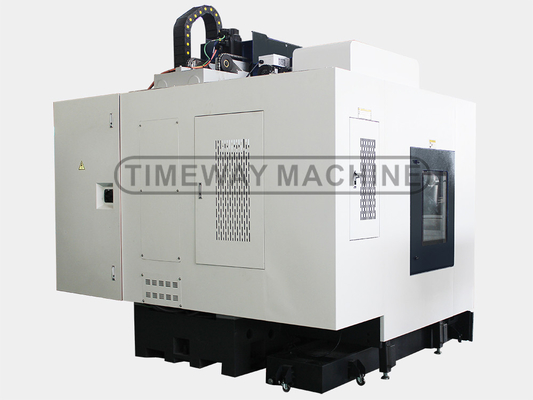

700mm Table Travel VMC1270L High Rigidity Vertical Milling Machine for CNC Machining
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $26,666.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Weight (T): | 10 T | Table Size (mm): | 1360x700 |

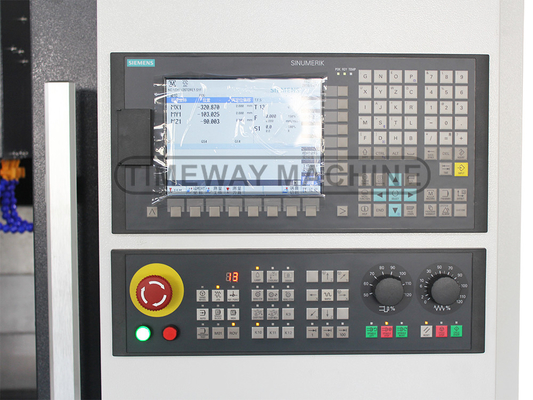

| CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens | Number Of Axes: | 3 |
| Table Travel (X) (mm): | 1200 | Table Travel (Y) (mm): | 700 |
| Table Travel (Z) (mm): | 700 | Positioning Accuracy (mm): | ±0.008 |
| Repeatability (X/Y/Z) (mm): | ±0.006 | Range Of Spindle Speed(r.p.m): | 6000 - 20000 R.p.m |
| Spindle Motor Power(kW): | 15/18.5 | Max. Table Load(kg): | 1200 Kg |
| Min. Time Of Tool Change(s): | 6 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | High-accuracy | Warranty: | 1 Year |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | 3-axis Vertical Cnc Machining Center | Machine Type: | Vertical CNC Milling Machine |
| Keywords: | Vmc Machine Center | CNC Or Not: | CNC Systemn |
| Application: | General Machinery Processing | Product Type: | Cnc Milling Machine Metal |
| After-sales Service Provided: | Online Support | Longitudinal Travel (X): | 1200mm |
| Cross Travel (Y): | 700mm | Vertical Travel (Z): | 700mm |
| Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa, Australia | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other |
| Core Components: | Other | ||
Product Description
Product Description
Specification
Worktable size (LxW) | 1360×700mm |
T-slot (No./width/pitch) | 5-18-152.5mm |
Loading capacity | 1200kg |
Longitudinal travel (X) | 1200mm |
Cross travel (Y) | 700mm |
Vertical travel (Z) | 700mm |
Distance from spindle nose to table | 140-840mm |
Distance from spindle center to column | 785mm |

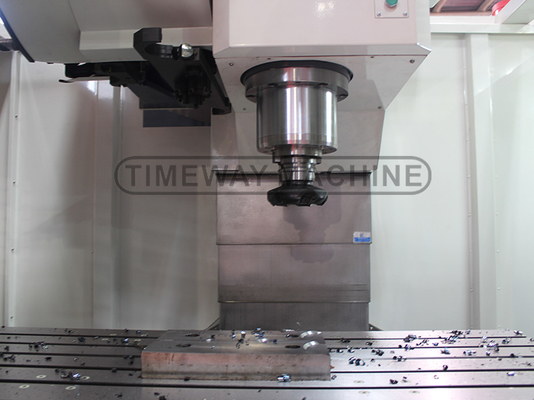

Spindle taper | BT-50 (155) |
Spindle speed | 6000rpm |
X/Y/Z-axis rapid feed speed | 24/24/15m/min |
X/Y/Z-axis servo motor (FANUC) | 24/24/15 |
X/Y/Z-axis positioning accuracy | ±0.008mm |
X/Y/Z-axis repositioning accuracy | ±0.006mm |
Main motor power | 15/18.5kw |
Air pressure source | 6-8kg/cm2 |
Power capacity | 30Kva |
Tool magazine capacity | 30Tools |
Guideway type | X/Y: Linear; Z: Sliding |
Machine dimensions (LxWxH) | 3820×2600×3100mm |
Machine weight | 10000kg |
MAIN CONFIGURATION & ACCESSORIES:
1. Resin sand casting;
2. X, Y rails adopts imported linear guideway; Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;

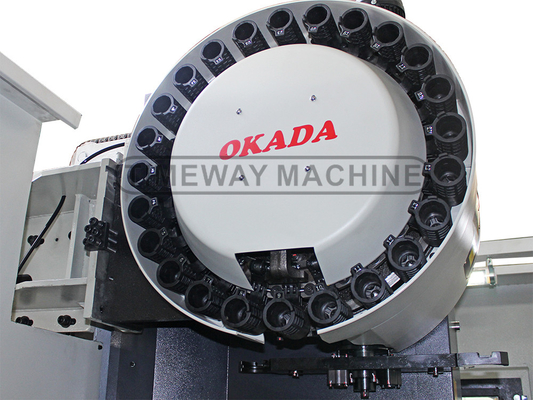

6. Taiwan ATC, carousel type and disc type are available as option;
2. X, Y rails adopts imported linear guideway; Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
OPTIONAL CONFIGURATION & ACCESSORIES:
1. The 4th axis wiring;

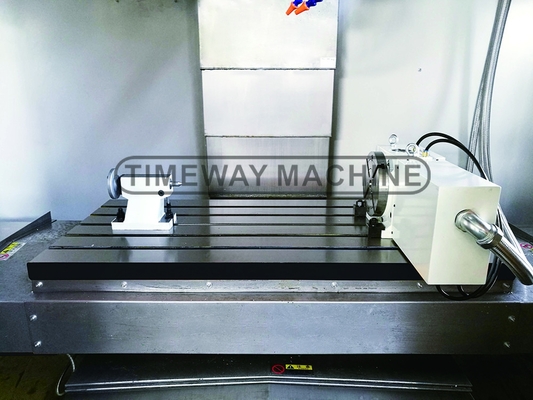

2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
