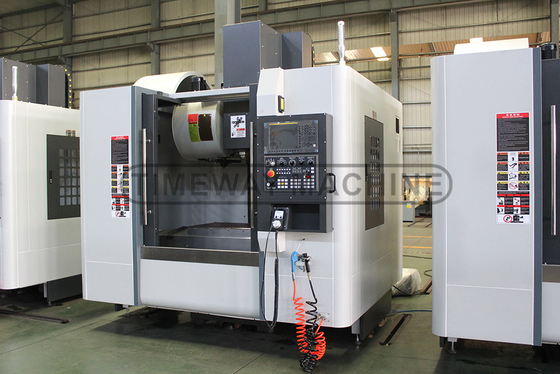

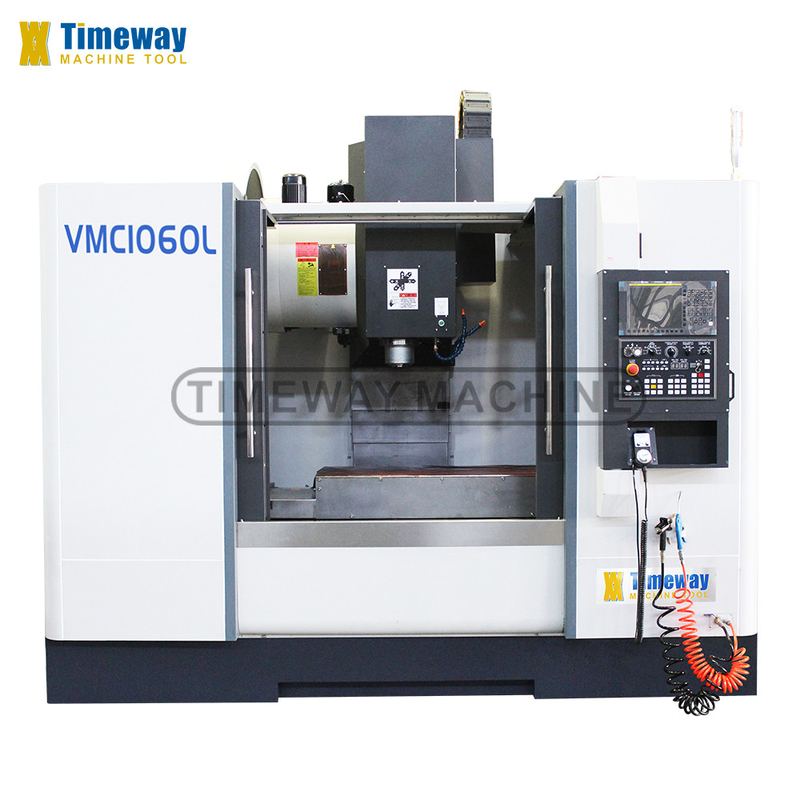

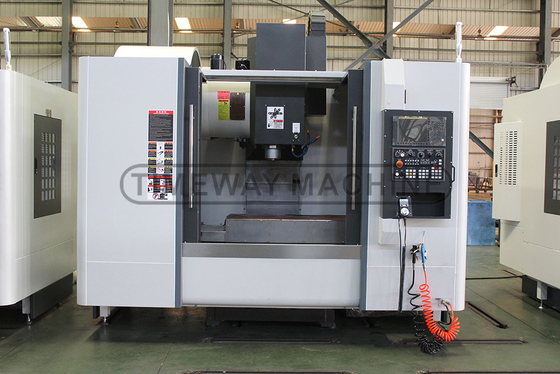

600mm Table Travel VMC1060L CNC Vertical Milling Machine with 24 Tool Magazine Capacity
Product Details:
| Place of Origin: | China |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,666.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Weight (T): | 6.3 T | Table Size (mm): | 1200x600 |

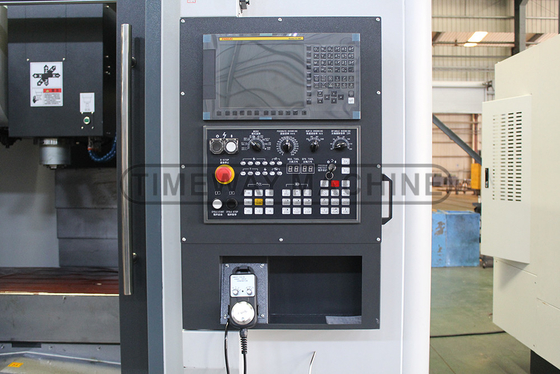

| CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens | Number Of Axes: | 3, 4 |
| Table Travel (X) (mm): | 1100 | Table Travel (Y) (mm): | 600 |
| Table Travel (Z) (mm): | 600 | Positioning Accuracy (mm): | ±0.008 |
| Repeatability (X/Y/Z) (mm): | ±0.006 | Range Of Spindle Speed(r.p.m): | 8000 - 20000 R.p.m |
| Spindle Motor Power(kW): | 11/15 | Max. Table Load(kg): | 800 Kg |
| Min. Time Of Tool Change(s): | 6 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | High Rigidity | Warranty: | 1 Year |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | 3-axis Vertical Cnc Machining Center | Machine Type: | Vertical CNC Milling Machine |
| Keywords: | Vmc Machine Center | CNC Or Not: | CNC Systemn |
| Application: | General Machinery Processing | Processing: | Metal Cutting Cnc Milling Machine |
| After-sales Service Provided: | Online Support | Precision: | High Precision High Accuracy |
| Guideways: | X/Y:LinearGuideway,Z:SlidingGuideway | Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa, Australia |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other | Core Components: | Other |
Product Description
Product Description
Specification
Specifications | Unit | VMC1060L |
Table size | mm | 600x1300 |
T-slot (No./width/pitch) | mm | 5/18/100 |
Loading capacity | kg | 800 |
Longitudinal travel (X) | mm | 1000 |
Cross travel (Y) | mm | 600 |
Vertical travel (Z) | mm | 600 |
Distance from spindle nose to table | mm | 70-670 |
Distance from spindle center to column | mm | 655 |
Spindle taper | - | BT40 |
Spindle speed | rpm | 8000 |
X/Y/Z-axis rapid feed speed | m/min | 24/24/18 |
X/Y/Z-axis feed motor torque | N.m | 15/15/15 |
X/Y/Z-axis positioning accuracy | mm | 0.008 |
X/YZ-axis repetability accuracy | mm | 0.005 |
Main motor power | kw | 11/15 |
Air pressure source | kg/cm2 | 8 |
Total power | Kva | 20 |
Tool magazine capacity | T | 24 (Disc) |
Guideway type | - | X/Y: Linear; Z: Slinding |
Machine weight | kg | 6300 |
Machine dimensions (LxWxH) | mm | 3200×2560×2960 |
MAIN CONFIGURATION & ACCESSORIES:
1. Resin sand casting;

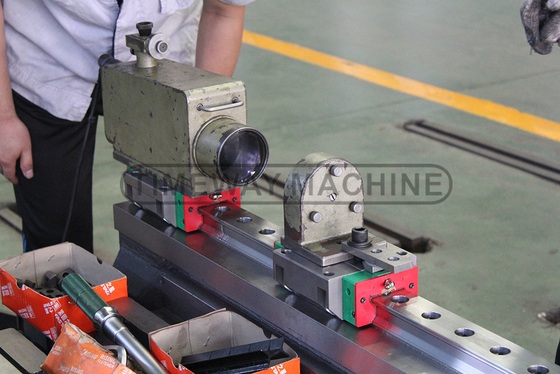

2. X, Y rails adopts imported linear guideway; Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
2. X, Y rails adopts imported linear guideway; Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
OPTIONAL CONFIGURATION & ACCESSORIES:
1. The 4th axis wiring;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction

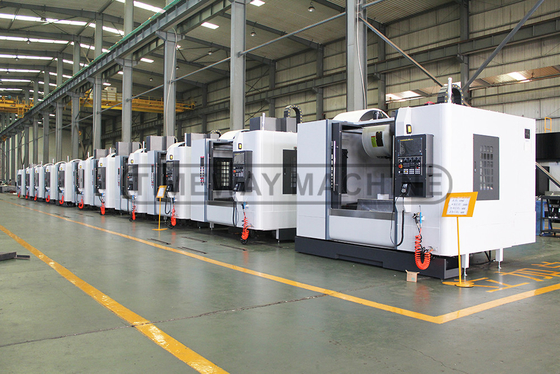

Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
