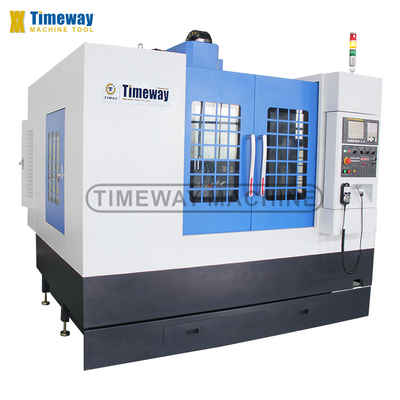

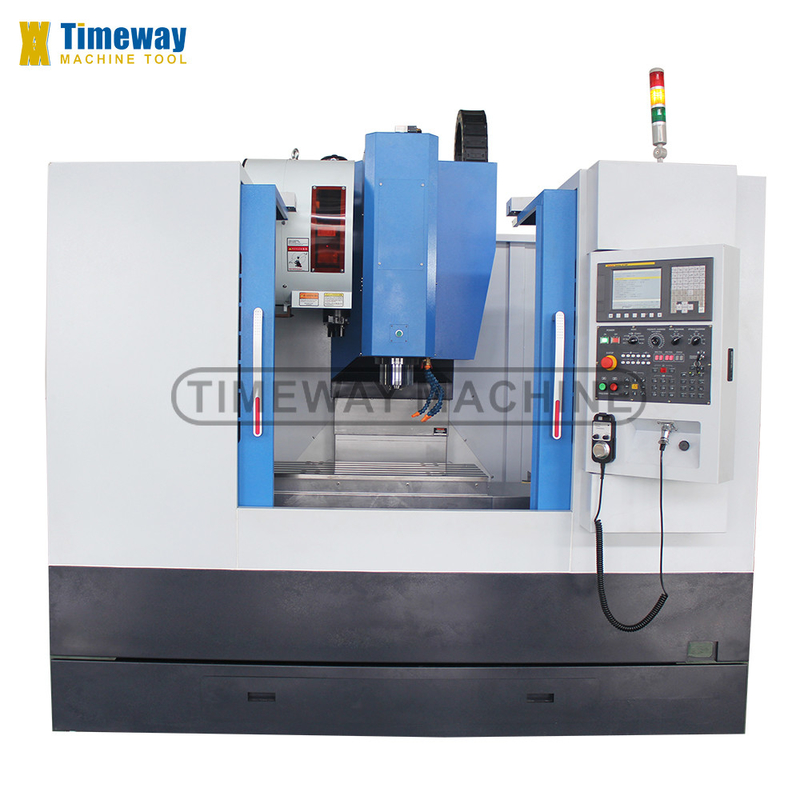

600 kg Max. Table Load VMC850 Vertical Machining Center with 500mm Table
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $26,666.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 1000 500 | Weight (T): | 4.6 T |
| Table Size (mm): | 1000x500 | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3, 4 | Table Travel (X) (mm): | 800 |
| Table Travel (Y) (mm): | 500 | Table Travel (Z) (mm): | 500 |
| Positioning Accuracy (mm): | ±0.01 | Repeatability (X/Y/Z) (mm): | ±0.008 |
| Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m | Spindle Motor Power(kW): | 7.5/11 |
| Max. Table Load(kg): | 600 Kg | Min. Time Of Tool Change(s): | 6 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | Automatic |
| Warranty: | 1 Year | Marketing Type: | Hot Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | 3-axis Vertical Cnc Machining Center |
| Machine Type: | Vertical CNC Milling Machine | Keywords: | Vmc Machine Center |
| CNC Or Not: | CNC Systemn | Application: | General Machinery Processing |
| Processing: | Metal Cutting Cnc Milling Machine | Precision: | High Precision High Accuracy |
| After-sales Service Provided: | Online Support | Function: | Machining Metal |
| Guideways: | Sliding Guideways | Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa, Australia |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other | Core Components: | Other |
Product Description
Product Description
Specification
|
Specifications
|
Unit
|
VMC850
|
|
Table size
|
mm
|
500x1000
|
|
T-slot (No./width/pitch)
|
mm
|
3/18/150
|
|
Loading capacity
|
kg
|
500
|
|
Longitudinal travel (X)
|
mm
|
800
|
|
Cross travel (Y)
|
mm
|
500
|
|
Vertical travel (Z)
|
mm
|
500
|
|
Distance from spindle nose to table
|
mm
|
150-650
|
|
Distance from spindle center to column
|
mm
|
550
|
|
Spindle taper
|
-
|
BT40
|
|
Spindle speed
|
rpm
|
8000
|
|
X/Y/Z-axis rapid feed speed
|
m/min
|
15/15/15
|
|
X/Y/Z-axis feed motor torque
|
N.m
|
15/15/15
|
|
X/Y/Z-axis positioning accuracy
|
mm
|
0.01
|
|
X/YZ-axis repetability accuracy
|
mm
|
0.008
|
|
Main motor power
|
kw
|
7.5/11
|
|
Air pressure source
|
kg/cm2
|
8
|
|
Total power
|
Kva
|
15
|
|

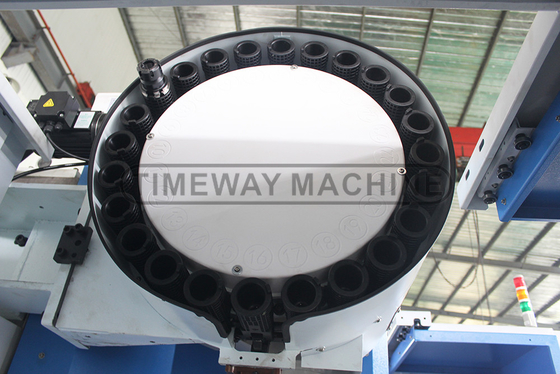

Tool magazine capacity
|
T
|
24 (Disc)
|
|
Guideway type
|
-
|
Sliding
|
|
Machine weight
|
kg
|
4600
|
|
Machine dimensions (LxWxH)
|
mm
|
2800×2350×2600
|
MAIN CONFIGURATION & ACCESSORIES:
1. Resin sand casting;
2. X, Y, Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;

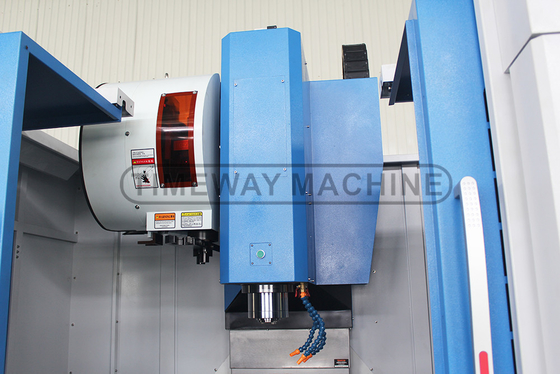

4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
2. X, Y, Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
OPTIONAL CONFIGURATION & ACCESSORIES:
1. The 4th axis wiring;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
