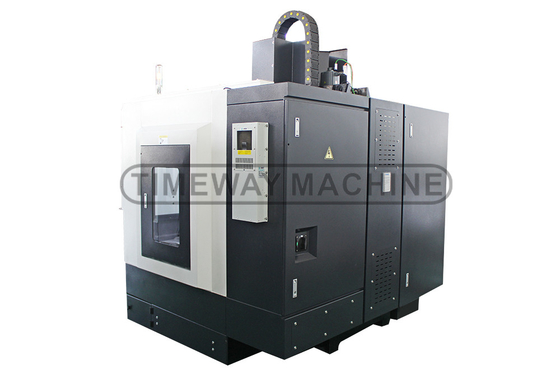

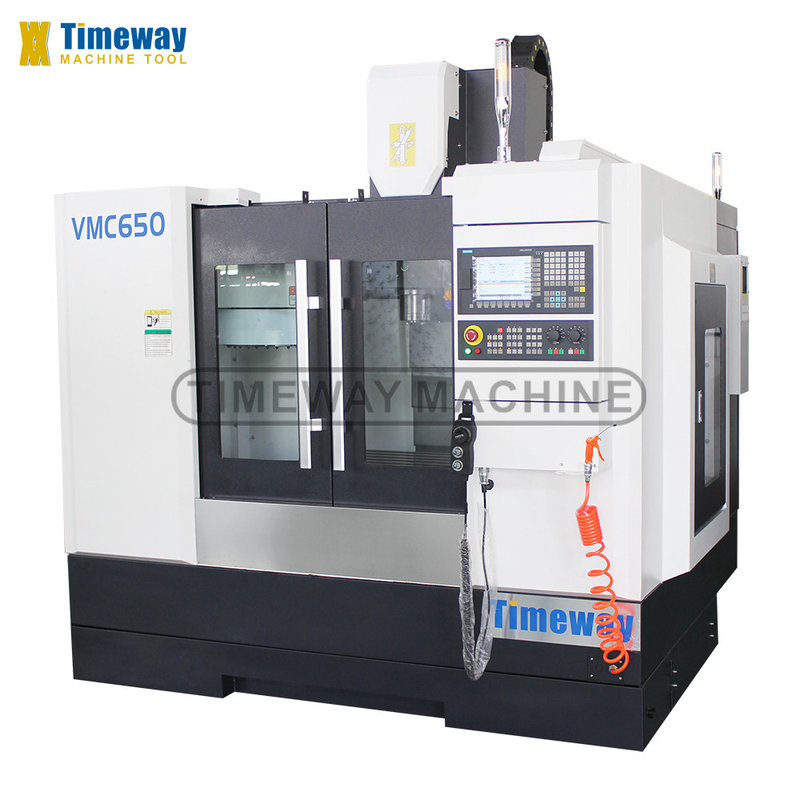

VMC650 Vertical Machining Center CNC Milling Machine with ±0.01mm Positioning Accuracy
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,666.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | No. Of Spindles: | Single |
|---|---|---|---|
| Type: | VERTICAL | Weight (T): | 3.5 T |

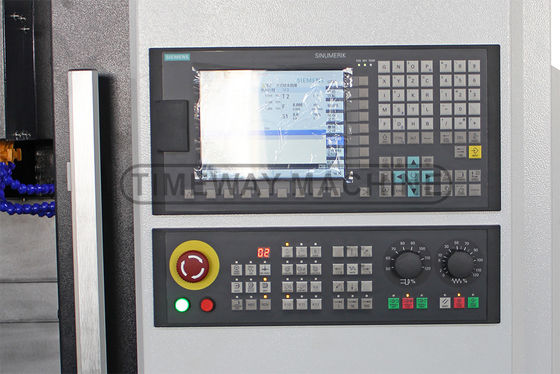

| Table Size (mm): | 1000x420 | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3, 4 | Table Travel (X) (mm): | 700 |
| Table Travel (Y) (mm): | 450 | Table Travel (Z) (mm): | 450 |
| Positioning Accuracy (mm): | ±0.01 | Repeatability (X/Y/Z) (mm): | ±0.008 |
| Range Of Spindle Speed(r.p.m): | 8000 - 20000 R.p.m | Spindle Motor Power(kW): | 7.5/11 |
| Max. Table Load(kg): | 400 Kg | Min. Time Of Tool Change(s): | 6 |
| Tool Magazine Capacity: | 12 | Key Selling Points: | Automatic |
| Warranty: | 1 Year | Marketing Type: | Hot Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Vertical CNC Milling Machine |
| Keywords: | Vmc Machine Center | CNC Or Not: | CNC Systemn |
| Application: | General Machinery Processing | Processing: | Metal Cutting Cnc Milling Machine |
| Precision: | High Precision High Accuracy | After-sales Service Provided: | Online Support |
| Function: | Machining Metal | Guideways: | Sliding Guideways |
| Model: | Vmc650 | Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa, Australia |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other | Core Components: | Other |
Product Description
Product Description
Specification
Specifications | Unit | VMC650 |
Table size | mm | 1000×420 |

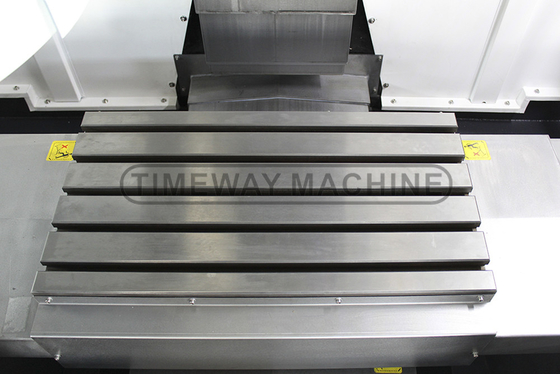

T-slot (No./width/pitch) | mm | 5/18/130 |
Loading capacity | kg | 400 |
Longitudinal travel (X) | mm | 700 |
Cross travel (Y) | mm | 450 |
Vertical travel (Z) | mm | 450 |
Distance from spindle nose to table | mm | 130-630 |
Distance from spindle center to column | mm | 495 |
Spindle taper | - | BT40 |
Spindle speed | rpm | 8000 |
X/Y/Z-axis rapid feed speed | m/min | 15/15/15 |
X/Y/Z-axis servo motor (FANUC) | β12/β12/β22 | |
X/Y/Z-axis positioning accuracy | mm | 0.01/0.008 |
X/YZ-axis repetability accuracy | mm | 0.008/0.005 |
Main motor power | kw | 7.5/11 |
Air pressure source | kg/cm2 | 8 |
Total power | Kva | 18 |

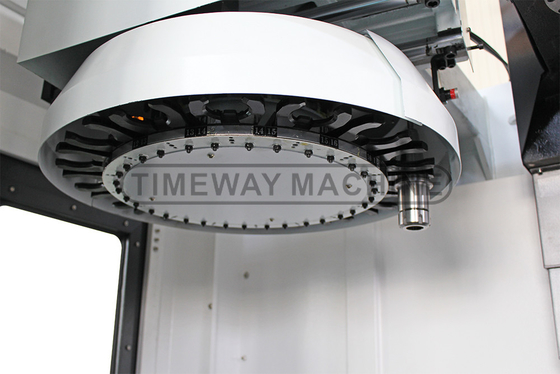

Tool magazine capacity | T | 12(Crousel) |
Guideway type | - | Sliding |
Machine weight | kg | 3500 |
Machine dimensions (LxWxH) | mm | 2400×1900×2400 |
MAIN CONFIGURATION & ACCESSORIES:
1. Resin sand casting;
2. X, Y, Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;

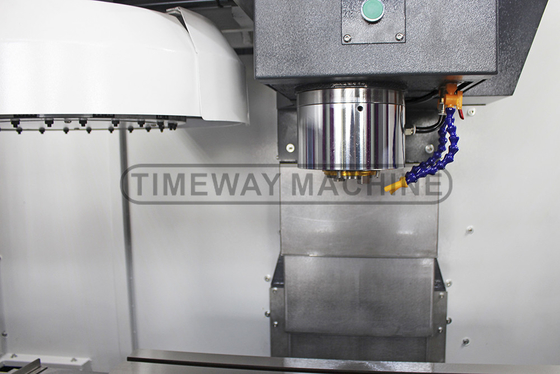

4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
2. X, Y, Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
OPTIONAL CONFIGURATION & ACCESSORIES:
1. The 4th axis wiring;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
