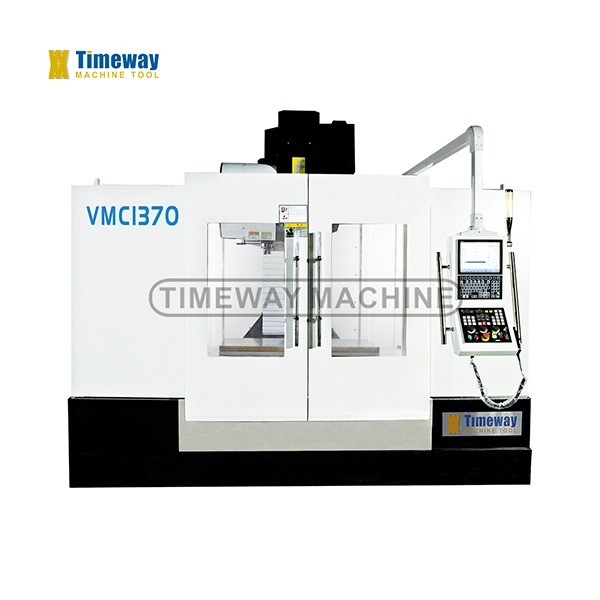

VMC1370 Large Vertical Machining Center CNC Milling Machine with 1300mm Table Travel
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $29,666.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Weight (T): | 10 T | Table Size (mm): | 1360x700 |

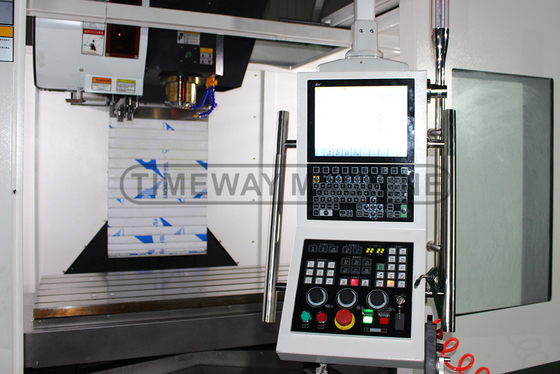

| CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens | Number Of Axes: | 3, 4 |
| Table Travel (X) (mm): | 1300 | Table Travel (Y) (mm): | 700 |
| Table Travel (Z) (mm): | 700 | Positioning Accuracy (mm): | ±0.01 |
| Repeatability (X/Y/Z) (mm): | ±0.008 | Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m |
| Spindle Motor Power(kW): | 15/18.5 | Max. Table Load(kg): | 1200 Kg |
| Min. Time Of Tool Change(s): | 6 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Automatic | Warranty: | 1 Year |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | 3-axis Vertical Cnc Machining Center | Machine Type: | Vertical CNC Milling Machine |
| Keywords: | Vmc Machine Center | CNC Or Not: | CNC Systemn |
| Application: | General Machinery Processing | Processing: | Metal Cutting Cnc Milling Machine |
| After-sales Service Provided: | Online Support | Precision: | High Precision High Accuracy |
| Function: | Machining Metal | Guideways: | Sliding Guideways |
| Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa, Australia | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other |
| Core Components: | Other | ||
Product Description
Product Description
Specification
Specification | Unit | VMC1370 |
Table size | mm | 1360×700 |
T-slot (No./width/pitch) | mm | 5/18/152.5 |
Loading capacity | kg | 1200 |
Longitudinal travel (X) | mm | 1300 |
Cross travel (Y) | mm | 700 |
Vertical travel (Z) | mm | 700 |
Distance from spindle nose to table | mm | 140-840 |
Distance from spindle center to column | mm | 785 |
Spindle taper | - | BT50 |
Spindle speed | rpm | 6000 |
X/Y/Z-axis rapid feed speed | m/min | 15/15/15 |
X/Y/Z-axis feed motor torque | β22/β22/β30 | |
X/Y/Z-axis positioning accuracy | mm | ±0.01 |
X/YZ-axis repetability accuracy | mm | ±0.008 |
Main motor power | kw | 15/18.5 |
Air pressure source | kg/cm2 | 8 |
Total power | Kva | 30 |
Tool magazine capacity | T | 24 (Disc) |
Guideway type | - | Sliding |
Machine weight | kg | 10000 |
Machine dimensions (LxWxH) | mm | 3820×2600×3100 |
MAIN CONFIGURATION & ACCESSORIES:
1. Resin sand casting;

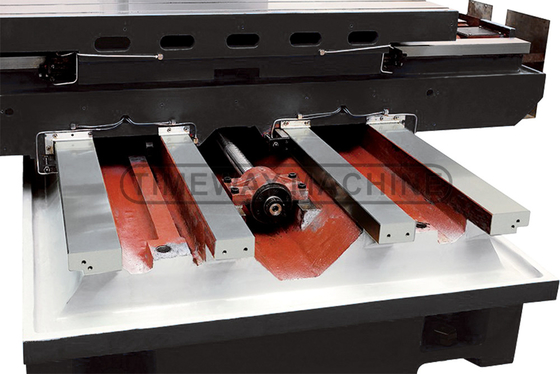

2. X, Y, Z rails are quenching - plastic sliding guide rail pair;

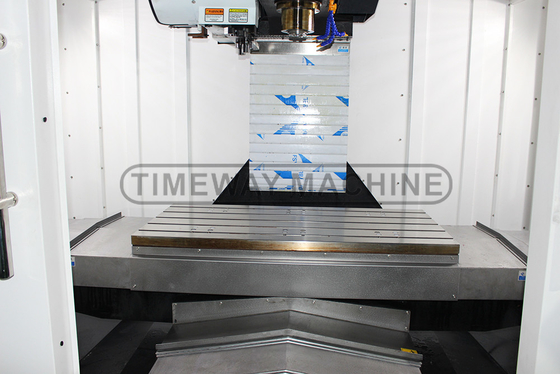

3. X, Y, Z rails adopt stainless steel telescopic cover;

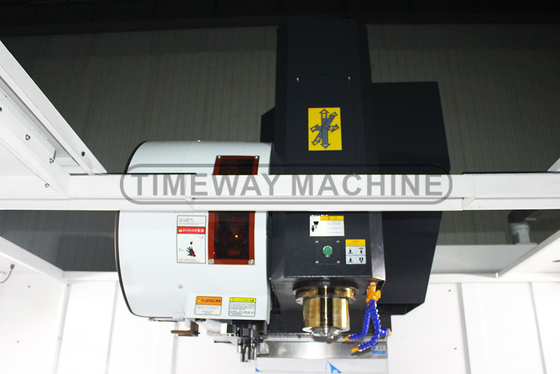

4. Standard with belt driven spindle, optional for direct driven spindle, gear head for all models;
5. Taiwan production pneumatic cylinder;

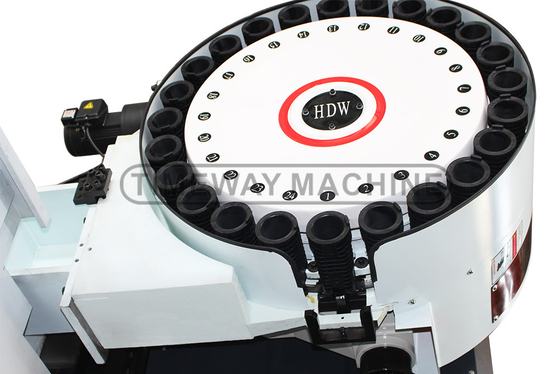

6. Taiwan ATC, carousel type and disc type are available as option;
2. X, Y, Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle, gear head for all models;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
OPTIONAL CONFIGURATION & ACCESSORIES:
1. The 4th axis wiring;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Gearbox head (for all models)
5. Circular Coolant Nozzle;
6. Coolant through spindle (CTS);
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Gearbox head (for all models)
5. Circular Coolant Nozzle;
6. Coolant through spindle (CTS);
