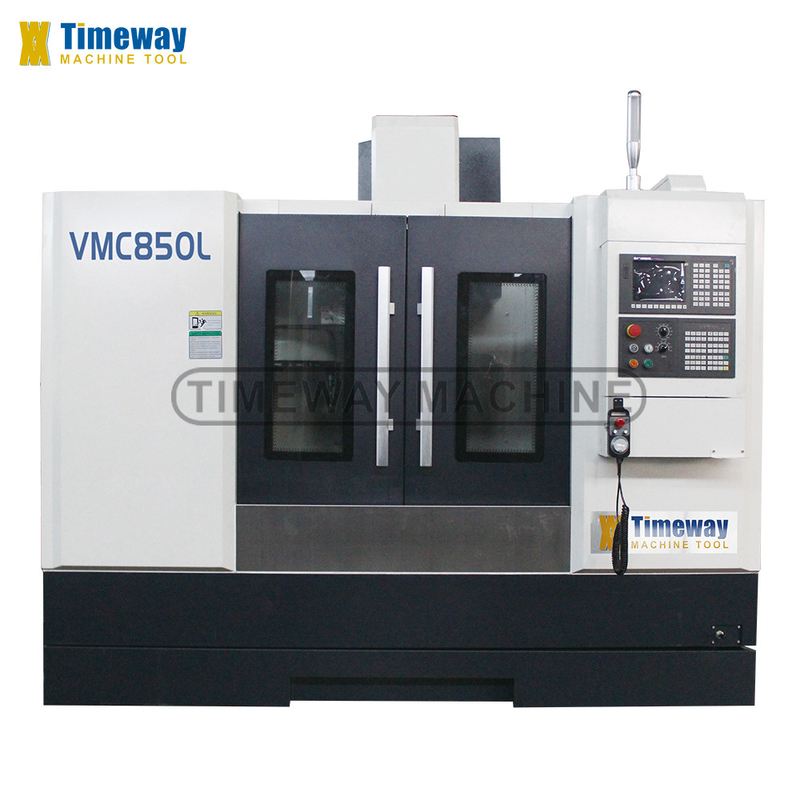

VMC850L Vertical Machining Center CNC Machine with Table Travel Y mm 500 Technology
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,666.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Weight (T): | 4.6 T | Table Size (mm): | 1000x500 |
| CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens | Number Of Axes: | 3, 4 |
| Table Travel (X) (mm): | 850 | Table Travel (Y) (mm): | 500 |
| Table Travel (Z) (mm): | 500 | Positioning Accuracy (mm): | ±0.008 |
| Repeatability (X/Y/Z) (mm): | ±0.006 | Range Of Spindle Speed(r.p.m): | 8000 - 20000 R.p.m |
| Spindle Motor Power(kW): | 7.5/11 | Max. Table Load(kg): | 500 Kg |
| Min. Time Of Tool Change(s): | 6 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | High Safety Level | Warranty: | 1 Year |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | 3-axis Vertical Cnc Machining Center | Machine Type: | Vertical CNC Milling Machine |
| Keywords: | Vmc Machine Center | CNC Or Not: | CNC Systemn |
| Application: | General Machinery Processing | Processing: | Metal Cutting Cnc Milling Machine |
| Precision: | High Precision High Accuracy | After-sales Service Provided: | Online Support |
| Function: | Machining Metal | Guideways: | X/Y:LinearGuideway,Z:SlidingGuideway |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other | Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa |
| Core Components: | Other | ||
Product Description
Product Description
Specification
Specifications | Unit | VMC850L |
Table size | mm | 500x1000 |
T-slot (No./width/pitch) | mm | 5/18/100 |
Loading capacity | kg | 500 |
Longitudinal travel (X) | mm | 800 |
Cross travel (Y) | mm | 500 |
Vertical travel (Z) | mm | 500 |
Distance from spindle nose to table | mm | 110-610 |
Distance from spindle center to column | mm | 524 |
Spindle taper | - | BT40 |
Spindle speed | rpm | 8000 |
X/Y/Z-axis rapid feed speed | m/min | 48/48/15 |
X/Y/Z-axis feed motor torque | β12/β12/β22 | |
X/Y/Z-axis positioning accuracy | mm | ±0.008 |
X/YZ-axis repetability accuracy | mm | ±0.006 |
Main motor power | kw | 7.5/11 |
Air pressure source | kg/cm2 | 8 |
Total power | Kva | 20 |
Tool magazine capacity | T | 24 (Disc) |
Guideway type | - | X/Y: Linear; Z: Sliding |
Machine weight | kg | 4600 |
Machine dimensions (LxWxH) | mm | 2800×2350×2600 |
MAIN CONFIGURATION & ACCESSORIES:
1. Resin sand casting;
2. X, Y rails adopts imported linear guideway; Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;

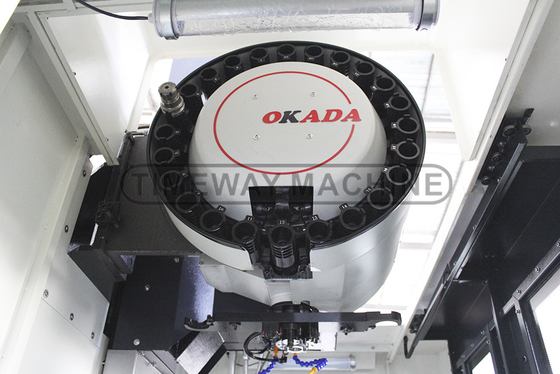

6. Taiwan ATC, carousel type and disc type are available as option;
2. X, Y rails adopts imported linear guideway; Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
OPTIONAL CONFIGURATION & ACCESSORIES:
OPTIONAL CONFIGURATION & ACCESSORIES:
1. The 4th axis wiring;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
1. The 4th axis wiring;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
