VMC1160G Vertical Machining Center VMC CNC Milling Machine for Your Requirements
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,600.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT-40 |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | VERTICAL |
| Dimension(L*W*H): | 3300x2280x2550mm | Weight (T): | 7 T |
| Table Size (mm): | 1200x600 | CNC Control System: | GSK, FANUC, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1100 |
| Table Travel (Y) (mm): | 600 | Table Travel (Z) (mm): | 600 |
| Positioning Accuracy (mm): | ±0.005 | Repeatability (X/Y/Z) (mm): | ±0.003 |
| Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m | Spindle Motor Power(kW): | 7.5/11 |
| Max. Table Load(kg): | 800 Kg | Min. Time Of Tool Change(s): | 2 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | Competitive Price |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | CNC Vertical Machining Center |
| Machine Type: | VMC CNC Milling Machine | Application: | Metal Machining |
| Keywords: | Vertical Machine Center VMC | Product Type: | Machining Center Cnc Mill Machine |
| CNC Or Not: | CNC Systemn | Worktable Size (LxW): | 1200x600mm |
| Longitudinal Travel (X): | 1100mm | Cross Travel (Y): | 600mm |
| Vertical Travel (Z): | 600mm | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Canada, Turkey, Italy, Brazil, Peru, Indonesia, India, Morocco, Romania, South Africa, Malaysia, Australia | Core Components: | Motor |
| Rapid Feed Speed(m/min): | 36/36/36 | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description

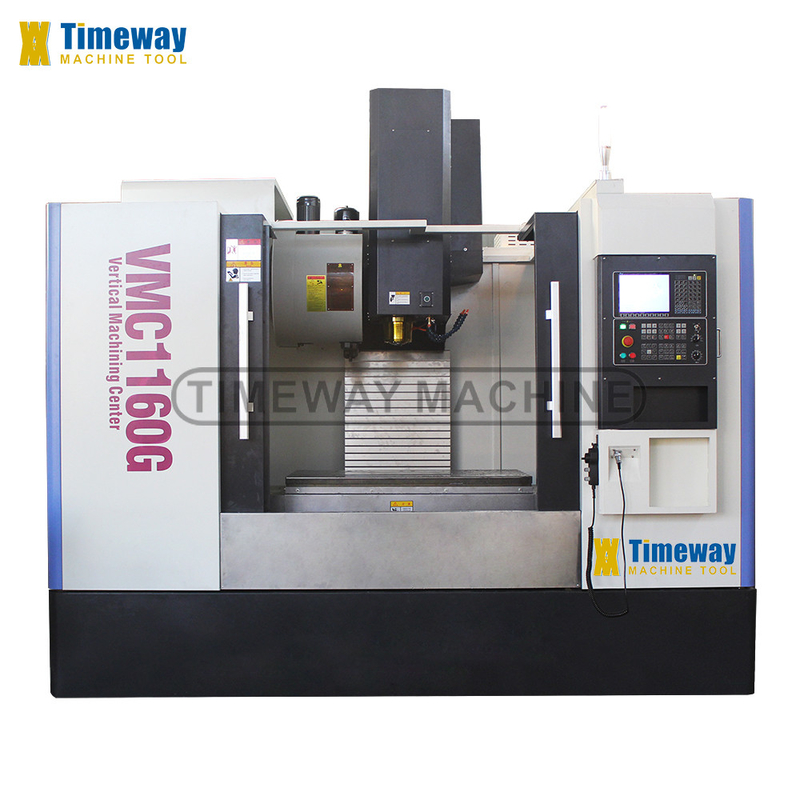

Vertical Machining Center VMC1160G
MAIN CONFIGURATION & ACCESSORIES:
1. Resin sand casting;
2. X, Y rails adopts imported linear guideway; Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;

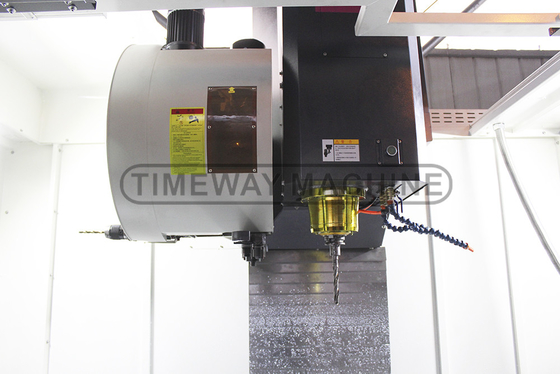

4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;

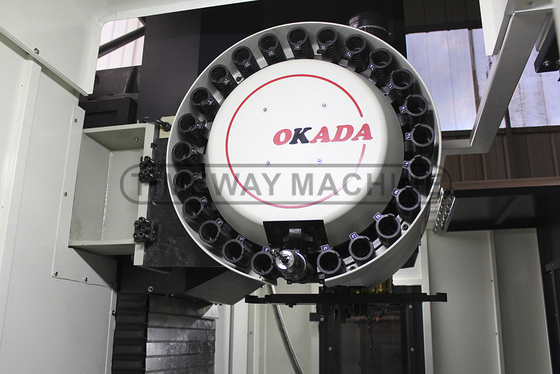

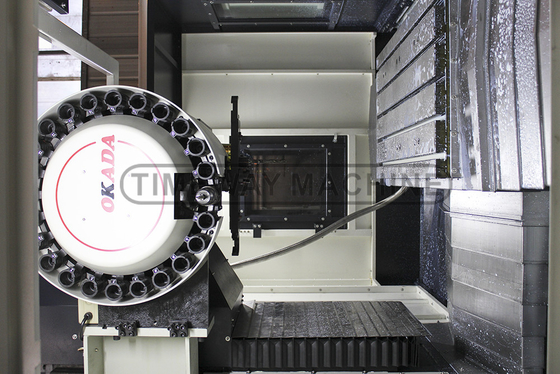

6. Taiwan ATC, carousel type and disc type are available as option;
7. Imported bearings for leadscrews;
8. Import coupling;
9. Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosure;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and LAN interface;
16. Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
18. Cooling system.
19. Heat exchanger for electrical cabinet ;
20. Leveling blocks & bolts;
21. Toolbox and tools;

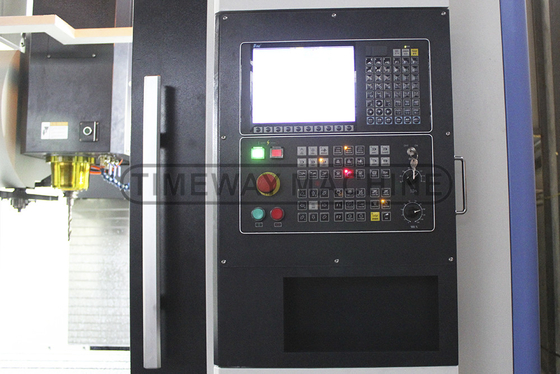

22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
2. X, Y rails adopts imported linear guideway; Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
7. Imported bearings for leadscrews;
8. Import coupling;
9. Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosure;
11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp;
14. Pilot lamp;
15. USB and LAN interface;
16. Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
18. Cooling system.
19. Heat exchanger for electrical cabinet ;
20. Leveling blocks & bolts;
21. Toolbox and tools;
22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
OPTIONAL CONFIGURATION & ACCESSORIES:
1. The 4th axis wiring;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
7. Air conditioner (A/C) for electrical cabinet;
8. Auto. Tool length measurement system;
9. Auto. Workpiece measurement systems;
10. Screw type chip conveyor;
11. Chain type chip conveyor;
12. High pressure water flush system;
13. Safety door;
14. Oil skimmer.
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
7. Air conditioner (A/C) for electrical cabinet;
8. Auto. Tool length measurement system;
9. Auto. Workpiece measurement systems;
10. Screw type chip conveyor;
11. Chain type chip conveyor;
12. High pressure water flush system;
13. Safety door;
14. Oil skimmer.
Specification
Specification | Unit | VMC1160G |
X-axis travel | mm | 1100 |
Y-axis travel | mm | 600 |
Z-axis travel | mm | 600 |
Distance from spindle nose to table | mm | 120-720 |
Distance from spindle center to column | mm | 672 |

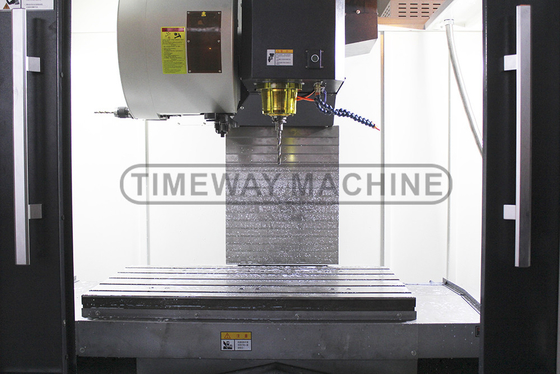

Table size | mm | 1200x600 |
Loading capacity | kg | 800 |
Spindle taper | - | BT-40 |
Spindle speed | r/min | 8000 |
Main motor power | kw | 11/15 |
X/Y/Z-axis rapid feed speed | m/min | 36/36/36 |
X/Y/Z-axis positioning accuracy | mm | ±0.005/300 |
X/Y/Z-axis repeat positioning accuracy | mm | ±0.003/300 |
ATC style | - | Disc |
ATC capacity | tools | 24 |
Machine weight | kg | 7000 |
Machine dimensions (LxWxH) | mm | 3300x2280x2550 |
