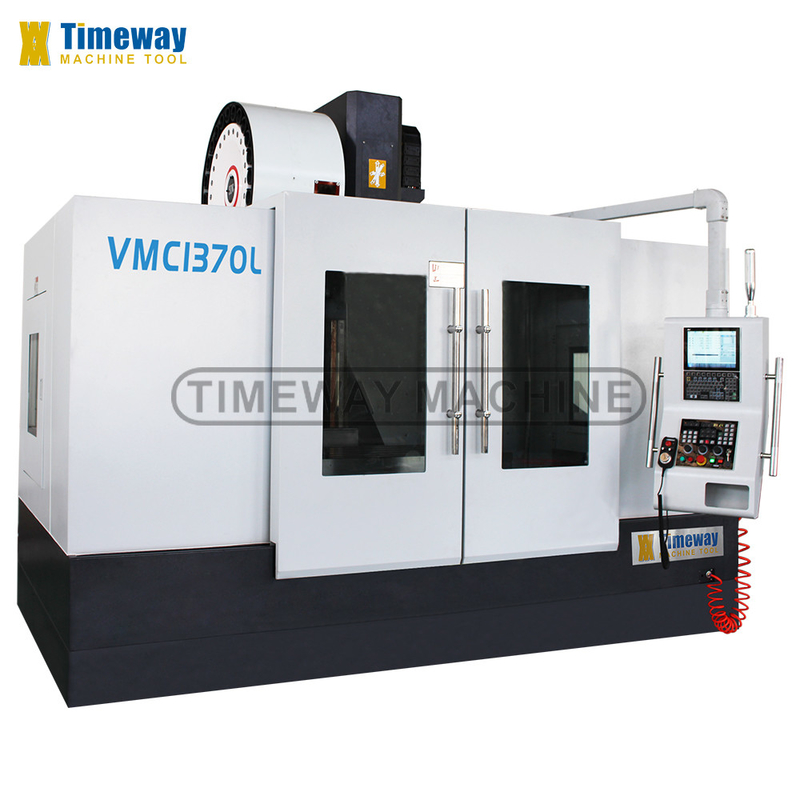

6s Min. Tool Change Time VMC1370L 3-axis Vertical Machining Center with CNC System
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,666.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | VERTICAL |
| Dimension(L*W*H): | 3820 2600 3100 | Weight (T): | 10000 T |

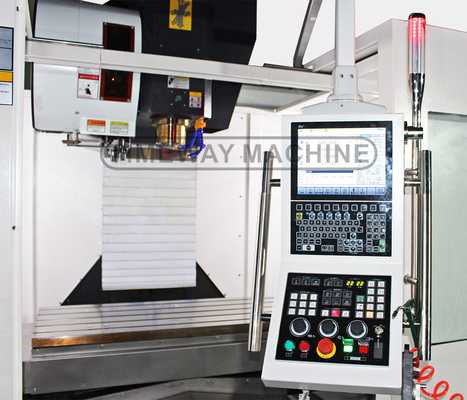

| Table Size (mm): | 1360x700 | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3, 4, 5 | Table Travel (X) (mm): | 1300 |
| Table Travel (Y) (mm): | 700 | Table Travel (Z) (mm): | 700 |
| Positioning Accuracy (mm): | ±0.008 | Repeatability (X/Y/Z) (mm): | ±0.006 |
| Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m | Spindle Motor Power(kW): | 15/18.5 |
| Max. Table Load(kg): | 1200 Kg | Min. Time Of Tool Change(s): | 6 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | Automatic |
| Warranty: | 1 Year | Marketing Type: | Hot Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Vertical CNC Milling Machine |
| Product Name: | 3-axis Vertical Cnc Machining Center | Keywords: | Vmc Machine Center |
| CNC Or Not: | CNC Systemn | Application: | General Machinery Processing |
| Product Type: | Cnc 3 Axis Machine | Processing: | Metal Cutting Cnc Milling Machine |
| Precision: | High Precision High Accuracy | After-sales Service Provided: | Online Service |
| Cnc O: | CNC Systemn | Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa, Australia |
| Rapid Feed Speed(m/min): | 24/24/15 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other |
| Core Components: | Other | ||
Product Description
Product Description
Specification
Specifications | Unit | VMC1370L |

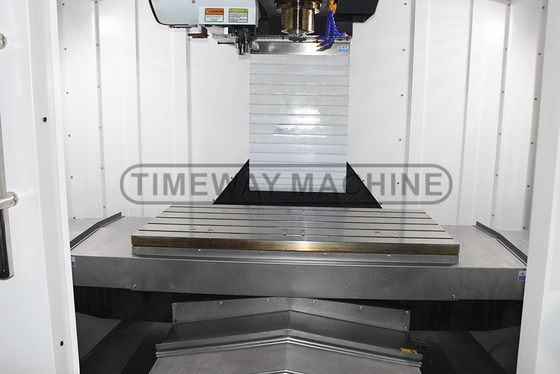

Table size | mm | 700x1360 |
T-slot (No./width/pitch) | mm | 5/18/122 |
Loading capacity | kg | 1200 |
Longitudinal travel (X) | mm | 1300 |
Cross travel (Y) | mm | 700 |
Vertical travel (Z) | mm | 600 |
Distance from spindle nose to table | mm | 150-750 |
Distance from spindle center to column | mm | 785 |
Spindle taper | - | BT50 |
Spindle speed | rpm | 8000 |
X/Y/Z-axis rapid feed speed | m/min | 24/24/18 |
X/Y/Z-axis feed motor torque | N.m | 23/23/23 |
X/Y/Z-axis positioning accuracy | mm | 0.008 |
X/YZ-axis repetability accuracy | mm | 0.005 |
Main motor power | kw | 15/18.5 |
Air pressure source | kg/cm2 | 8 |
Total power | Kva | 30 |
Tool magazine capacity | T | 24 (Disc) |
Guideway type | X: Linear; Y: Linear, four rails; Z: Slinding | |
Machine weight | kg | 10000 |
Machine dimensions (LxWxH) | mm | 3820×2600×3100 |
MAIN CONFIGURATION & ACCESSORIES:
1. Resin sand casting;

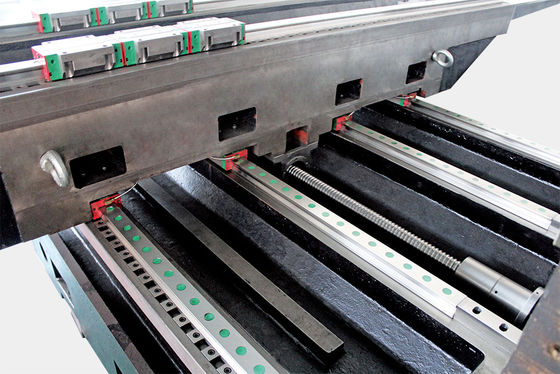

2. X, Y rails adopts imported linear guideway; Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;

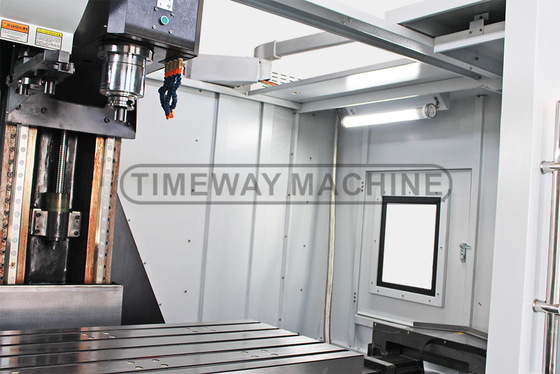

4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;

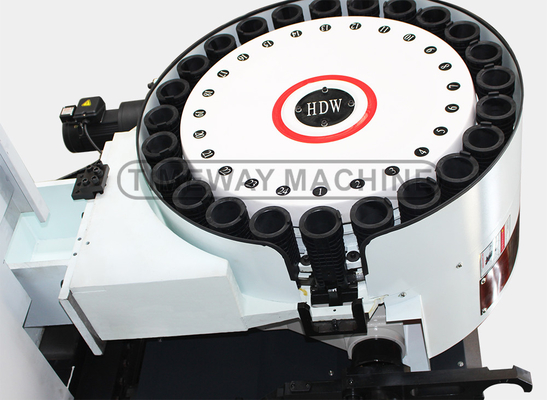

6. Taiwan ATC, carousel type and disc type are available as option;
7. Imported bearings for leadscrews;
8. Import coupling;
9. Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosure;
2. X, Y rails adopts imported linear guideway; Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
7. Imported bearings for leadscrews;
8. Import coupling;
9. Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosure;
OPTIONAL CONFIGURATION & ACCESSORIES:
1. The 4th axis wiring;
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
