1400mm Table Travel Cross Type HMC800S CNC Horizontal Machining Center for CNC Milling
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,600.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT-50 |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | Horizontal |
| Dimension(L*W*H): | 6200x4800x3800 | Weight (T): | 12 KG |
| Table Size (mm): | 800x800 | CNC Control System: | GSK |
| Table Travel (X) (mm): | 1800 | Table Travel (Y) (mm): | 1400 |
| Table Travel (Z) (mm): | 900 | Positioning Accuracy (mm): | ±0.008 |
| Repeatability (X/Y/Z) (mm): | ±0.005 | Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m |
| Max. Table Load(kg): | 2000 Kg | Feed Speed(mm/min): | 1 - 8000 Mm/min |
| Min. Time Of Tool Change(s): | 2 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Competitive Price | Warranty: | 1 Year |
| Marketing Type: | Hot Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machining Capacity: | Medium Duty | Spindle Bore(mm): | 58 |
| Cutting Torque: | 20 N.m | Rapid Feed Speed(mm/min): | 0 - 2400 Mm/min |
| Product Name: | Horizontal Machining Center | Table Size: | 800x800mm |
| Machine Type: | Horizontal Machine Centers | Loading Capacity: | 2000kg |
| Spindle Speed: | 6000rpm | Main Motor Power: | 15/18.5kw |
| ATC Capacity (style): | 24 (Disc) Tools | Processing: | Metal Cutting Cnc Milling Machine |
| Color: | Custom-made | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
MAIN CONFIGURATION & ACCESSORIES:
1. Resin sand casting;
2. X, Y, Z rails adopts imported linear guideway, Y-axis adopts quenching - plastic sliding guide rail pair for HMC630S, HMC800S;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle;
5. Taiwan production pneumatic cylinder;

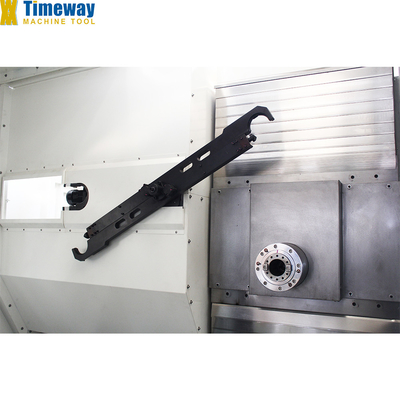

6. Taiwan ATC,disc type and chain type are available as option;
7. Imported bearings for leadscrews;
8. Imported coupling;
9. Headstock balancing system have nitrogen balance system or hydraulic balance system as option;

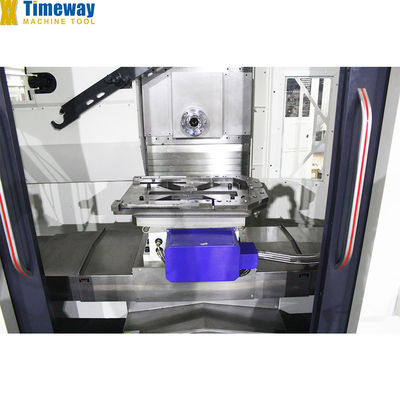

10. NC rotary worktable (B axis);
11. Work lamp;
12. Pilot lamp;
13. USB and LAN interface;

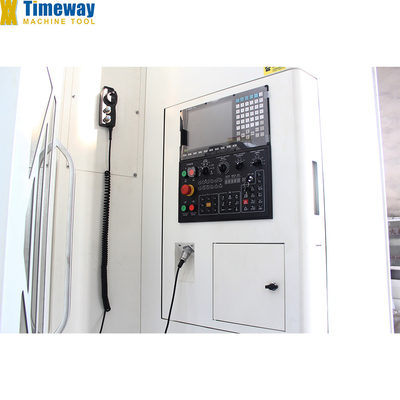

14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
16. Cooling system.
17. Heat exchanger for electrical cabinet ;
18. Leveling blocks & bolts;
19. Toolbox and tools;
20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
2. X, Y, Z rails adopts imported linear guideway, Y-axis adopts quenching - plastic sliding guide rail pair for HMC630S, HMC800S;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC,disc type and chain type are available as option;
7. Imported bearings for leadscrews;
8. Imported coupling;
9. Headstock balancing system have nitrogen balance system or hydraulic balance system as option;
10. NC rotary worktable (B axis);
11. Work lamp;
12. Pilot lamp;
13. USB and LAN interface;
14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
16. Cooling system.
17. Heat exchanger for electrical cabinet ;
18. Leveling blocks & bolts;
19. Toolbox and tools;
20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
OPTIONAL CONFIGURATION & ACCESSORIES:
1. ZF or BF reducer;
2. Circular Coolant Nozzle;
3. Coolant through spindle (CTS);
4. Spindle oil cooler;
5. Air conditioner (A/C) for electrical cabinet;
6. Auto. Tool length measurement system;
7. Auto. Workpiece measurement systems;
8. Optional with sprial type chip conveyor and chain type chip conveyor.
2. Circular Coolant Nozzle;
3. Coolant through spindle (CTS);
4. Spindle oil cooler;
5. Air conditioner (A/C) for electrical cabinet;
6. Auto. Tool length measurement system;
7. Auto. Workpiece measurement systems;
8. Optional with sprial type chip conveyor and chain type chip conveyor.
Specification
SPECIFICATION | UNIT | HMC800S |
Machine structure | - | Cross-type |
X-axis travel | mm | 1800 |
Y-axis travel | mm | 1400 |
Z-axis travel | mm | 900 |
B-axis servo motor torque (FANUC) | - | 20 |
Table size | mm | 800×800 |
Table indexing | ° | 1°×360 |
T-slots (No./width/pitch) | - | 5-22-165 |
Table rotation speed | rpm | 11.1 |
Loading capacity | kg | 2000 |
Locking force (35kg / cm2) | kg/m | 5000 |
Distance spindle center to table | mm | 305-1105 |
Distance spindle nose to table center | mm | 250-1100 |
Spindle taper | - | BT-50 |
Spindle speed | rpm | 6000 |
Main motor power | kw | 15/18.5 |
X/Y/Z-axis servo motor (FANUC) | - | Bis30/Bis40/Bis40 |
X/Y/Z-axis cutting feed speed | mm/min | 1-8000 |
X/Y/Z-axis rapid feed speed | m/min | 24/12/18 |
X/Y/Z-axis rails type | - | X/Z: Linear/Y: sliding |
X/Y/Z-axis positioning accuracy | mm | ±0.008 |
X/Y/Z-axis repeat positioning accuracy | mm | ±0.005 |
B-axis positioning accuracy | " | ±10" |
ATC capacity (style) | tools | 40 (Chain) |
Tool change time (tool to tool) | sec | 5 |
Max. tool weight | kg | 20 |
Max. tool diameter | mm | Φ125/Φ230 |
Max. tool length | mm | 300 |
Power supply | Kva | 50 |
Air pressure require | kg/cm2 | 8 |
Machine weight | kg | 12000 |
Overall dimension (LxWxH) | mm | 6200×4800×3800 |
