800mm Longitudinal Travel VMC850L Vertical Machining Center for CNC Milling Needs
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT-40 (150) |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | VERTICAL |
| Dimension(L*W*H): | 2800x2350x2600 | Weight (T): | 4.6 T |
| Table Size (mm): | 1000x500 | CNC Control System: | GSK, FANUC, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 800 |
| Table Travel (Y) (mm): | 500 | Table Travel (Z) (mm): | 500 |
| Positioning Accuracy (mm): | ±0.008 | Repeatability (X/Y/Z) (mm): | ±0.006 |
| Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m | Spindle Motor Power(kW): | 7.5/11 |
| Max. Table Load(kg): | 500 Kg | Min. Time Of Tool Change(s): | 2 |
| Tool Magazine Capacity: | 24 (Disc) | Key Selling Points: | Competitive Price |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | CNC Vertical Machining Center |
| Color: | Custom-made | Application: | Metal Machining |
| Keywords: | Vertical Machine Center VMC | Product Type: | Machining Center Cnc Mill Machine |
| CNC Or Not: | CNC Systemn | Processing: | Metal Cutting Cnc Milling Machine |
| Longitudinal Travel (X): | 800mm | Cross Travel (Y): | 500mm |
| Vertical Travel (Z): | 500mm | Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Energy & Mining |
| Showroom Location: | Egypt, Canada, Turkey, Viet Nam, Brazil, Peru, Indonesia, India, Thailand, Morocco, South Korea, Romania, South Africa, Malaysia, Australia | Core Components: | Motor |
| Rapid Feed Speed(m/min): | 48/48/15 | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Summary

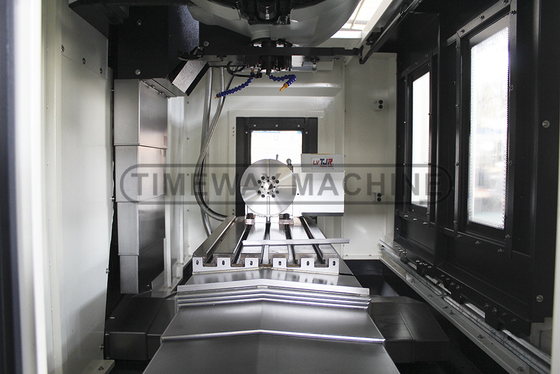

This is a vertical machining center.lt has a high-edge configuration and can work automatically.lt can provide high precision operation with Taiwan PrecisionSpindle,Taiwan Carousel ATC,Cross-type,Table,Full closed protection.
Product Description

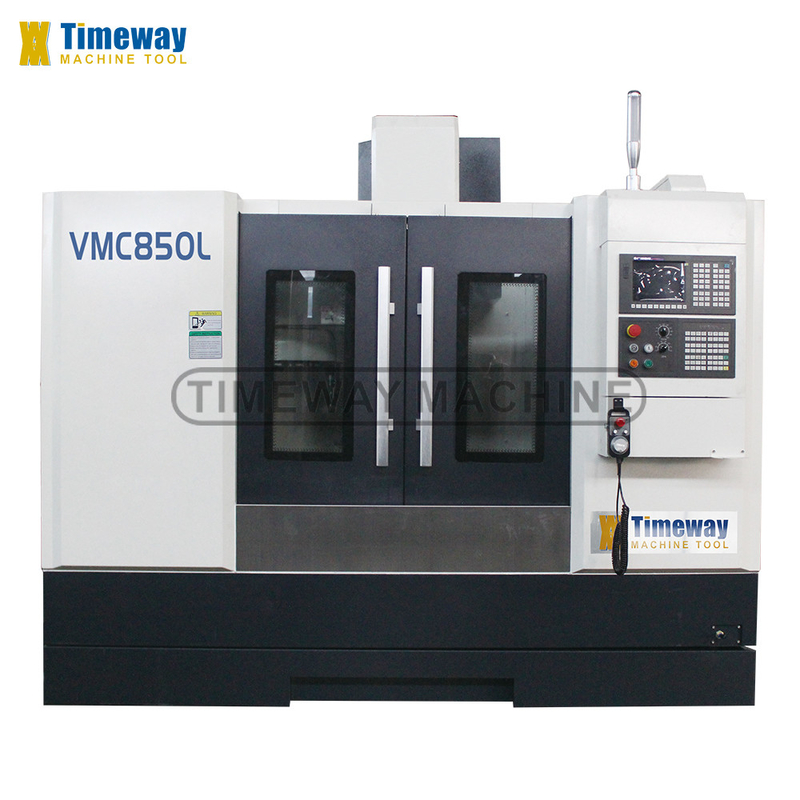

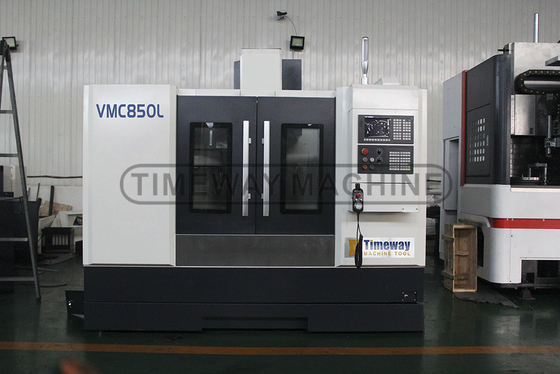

Vertical Machining Center VMC850L
Specification
Specification | Unit | VMC850L |

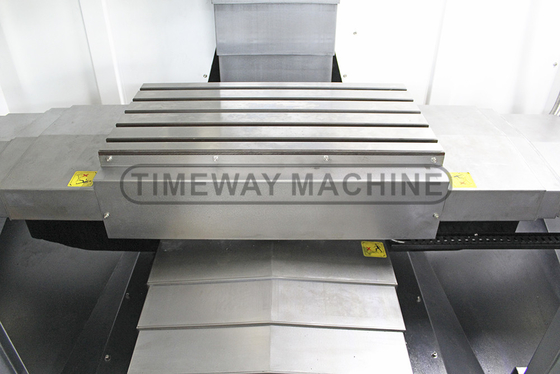

Worktable size (LxW) | mm | 1000×500 |
T-slot (No./width/pitch) | mm | 5-18-100 |
Loading capacity | kg | 500 |
Longitudinal travel (X) | mm | 800 |
Cross travel (Y) | mm | 500 |
Vertical travel (Z) | mm | 500 |
Distance from spindle nose to table | mm | 110-610 |
Distance from spindle center to column | mm | 524 |
Spindle taper | - | BT-40 (150) |
Spindle speed | rpm | 8000 |
X/Y/Z-axis rapid feed speed | m/min | 48/48/15 |
X/Y/Z-axis servo motor (FANUC) | - | β12/β12/β22 |
X/Y/Z-axis positioning accuracy | mm | ±0.008 |
X/Y/Z-axis repositioning accuracy | mm | ±0.006 |
Main motor power | kw | 7.5/11 |
Air pressure source | kg/cm2 | 6-8 |
Power capacity | Kva | 20 |
Tool magazine capacity | T | 24 (Disc) |
Guideway type | - | X/Y: Linear; Z: Sliding |
Machine weight | kg | 4600 |
Machine dimensions (LxWxH) | mm | 2800×2350×2600 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
