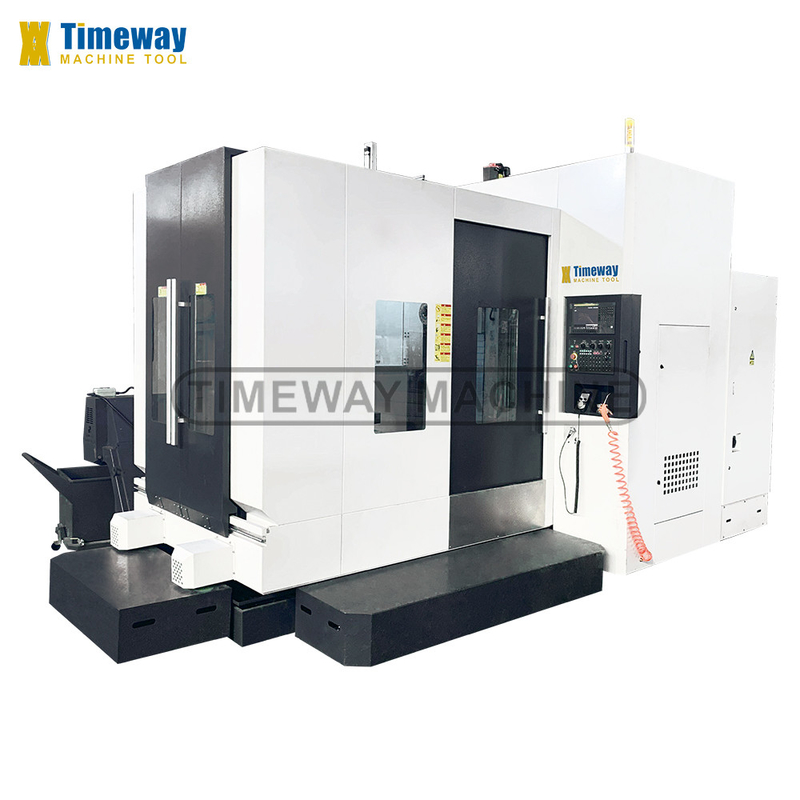

T-Type HMC630 Horizontal Machining Center 1100mm Table Travel and 1-8000mm/min Feed Speed
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,500.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT-50 |
|---|---|---|---|
| No. Of Spindles: | 4 | Type: | Horizontal |
| Weight (T): | 12 T | Table Size (mm): | 630x630 |
| CNC Control System: | FANUC | Number Of Axes: | 4 |
| Table Travel (X) (mm): | 1100 | Table Travel (Y) (mm): | 900 |
| Table Travel (Z) (mm): | 1100 | Positioning Accuracy (mm): | ±0.008 |
| Repeatability (X/Y/Z) (mm): | ±0.005 | Spindle Motor Power(kW): | 15/18.5 |
| Max. Table Load(kg): | 1500 Kg | Feed Speed(mm/min): | 1 - 8000 Mm/min |
| Min. Time Of Tool Change(s): | 5 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | High-accuracy | Warranty: | 1 Year |
| Marketing Type: | New Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Structure: | Positive T-type | X-axis Travel: | 1100 Mm |
| Y-axis Travel: | 900 Mm | Z-axis Travel: | 1100 Mm |
| Worktable Size: | 630x630 Mm | Number Of Pallet: | 1 Pcs |
| Worktable Indexing: | 0.001°/1° | Table Rotation Speed: | 11.1 Rpm |
| Loading Capacity: | 1500 Kg | Applicable Industries: | Manufacturing Plant, Retail, Construction Works , Energy & Mining, Other |
| Showroom Location: | Philippines, Pakistan, Thailand, Chile, Romania | Core Components: | Motor |
| Rapid Feed Speed(m/min): | 24 | ||
Product Description
Product Description
Specification
Specification | HMC630 |
Machine structure | Positive T-type |
X-axis travel | 1100 mm |
Y-axis travel | 900 mm |
Z-axis travel | 1100 mm |
Worktable size | 630×630 mm |
Number of pallet | 1 pcs |
Worktable indexing | 0.001°/1° |
Table rotation speed | 11.1 rpm |
Loading capacity | 1500 kg |
Spindle taper | BT-50 |
Spindle speed | 6000 rpm |
Main motor power | 15/18.5 kw |
X/Y/Z-axis cutting feed speed | 1-8000 mm/min |
X/Y/Z-axis rapid feed speed | 24/24/24 m/min |
X/Y/Z-axis positioning accuracy | ±0.008 mm |
X/Y/Z-axis repeat positioning accuracy | ±0.005 mm |
B-axis positioning accuracy | ±10" |
ATC style | Disc |
ATC capacity | 24 tools |
Machine weight | 12000 kg |
Overall dimension (LxWxH) | 5160×4600×3460 mm |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
