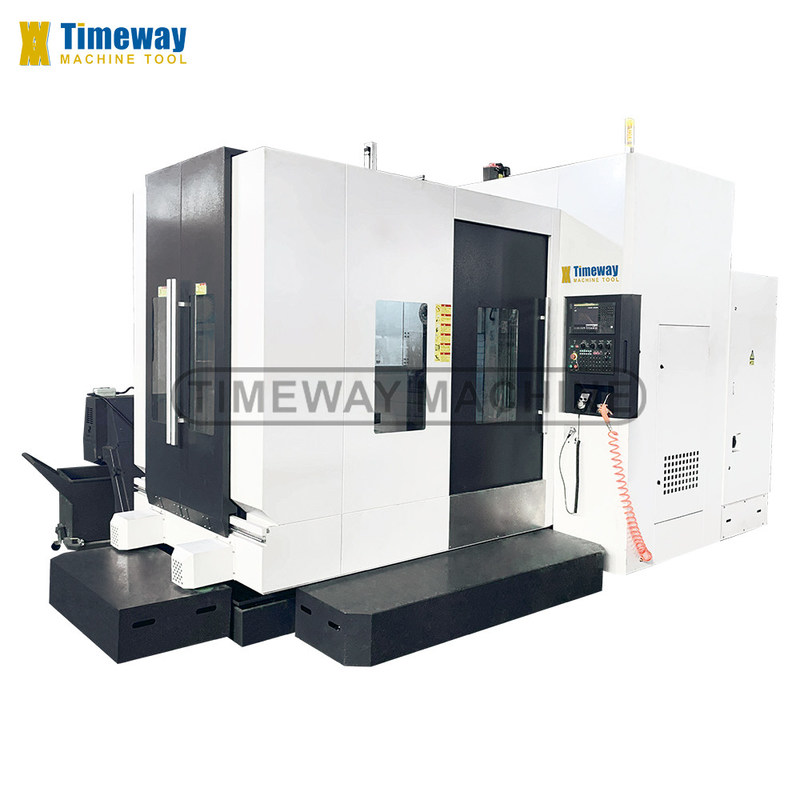

12T Weight Three-axis CNC Horizontal Machining Center HMC630 for and Metal Machining
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $76,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Horizontal |
| Dimension(L*W*H): | 5160x4600x3460mm | Weight (T): | 12 T |
| Table Size (mm): | 630x630 | CNC Control System: | GSK, FANUC, MITSUBISHI, KND, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1100 |
| Table Travel (Y) (mm): | 900 | Table Travel (Z) (mm): | 1100 |
| Positioning Accuracy (mm): | ±0.008 | Repeatability (X/Y/Z) (mm): | ±0.005 |
| Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m | Spindle Motor Power(kW): | 15/18.5 |
| Max. Table Load(kg): | 1500 Kg | Feed Speed(mm/min): | 1 - 8000 Mm/min |
| Min. Time Of Tool Change(s): | 5 | Tool Magazine Capacity: | 24 |
| Key Selling Points: | Easy To Operate | Warranty: | 1 Year |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC Systemn | Product Name: | 3-axis Horizontal Cnc Machining Center |
| Application: | General Machinery Processing | Machine Type: | Horizontal Machine Centers |
| Product Type: | CNC HMC | Keywords: | Metal Vertical Machining Center |
| Spindle Speed: | 6000 Rpm | MAX Spindle Speed: | 6000 Rpm Standard |
| Color: | Customized Colors | CNC Controller: | Fanuc Siemens KND GSK MITSUBISHI, FAGOR HNC (China) |
| Showroom Location: | Canada, Turkey, United Kingdom, Italy, France, Germany, Philippines, Brazil, Peru, Russia, Thailand, Morocco, South Korea, Chile | Core Components: | Motor |
| Rapid Feed Speed(m/min): | 24/24/24 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining, Other |
Product Description
Product Description
Specification

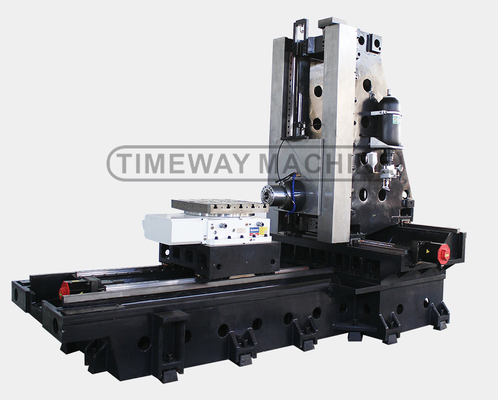

Machine structure | Positive T-type |
X-axis travel | 1100mm |
Y-axis travel | 800mm |
Z-axis travel | 1100mm |
B-axis servo motor torque (FANUC) | Bis22 |
Table size | 630×630mm |
Table indexing | 1×360 |
T-slots (No./width/pitch) | 5-18-100° |
Table rotation speed | 16.6rpm |
Loading capacity | 1500kg |
Locking force (35kg / cm²) | 5000kg/m |
Distance spindle center to table | 50-850mm |
Distance spindle nose to table center | 125-1225mm |
Spindle taper | BT-50 |
Spindle speed | 6000rpm |
Main motor power | 15/18.5kw |
X/Y/Z-axis servo motor (FANUC) | Bis30/Bis30/Bis30 |
X/Y/Z-axis cutting feed speed | 1-8000mm/min |
X/Y/Z-axis rapid feed speed | 24/24/24m/min |
X/Y/Z-axis rails type | X/Z: Linear/Y: sliding |
X/Y/Z-axis positioning accuracy | ±0.008mm |
X/Y/Z-axis repeat positioning accuracy | ±0.005mm |
B-axis positioning accuracy | ±10" |
ATC capacity (style) | 24 (Disc)tools |
Tool change time (tool to tool) | 5sec |
Max. tool weight | 18kg |
Max. tool diameter | Φ112/Φ200mm |
Max. tool length | 300mm |
Power supply | 40Kva |
Air pressure require | 8kg/cm² |
Machine weight | 12000kg |
Overall dimension (LxWxH) | 4860×3600×3460mm |
Standard accessories
1. Resin sand casting;

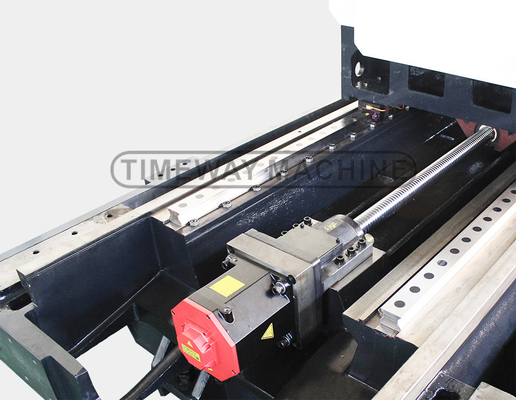

2. X, Y, Z rails adopts imported linear guideway, Y-axis adopts quenching - plastic sliding guide rail pair for HMC630;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC,disc type and chain type are available as option;
7. Imported bearings for leadscrews;
8. Imported coupling;
9. Headstock balancing system have nitrogen balance system or hydraulic balance system as option;
10. NC rotary worktable (B axis);
11. Work lamp;
12. Pilot lamp;
13. USB and LAN interface;
14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
16. Cooling system.
17. Heat exchanger for electrical cabinet ;
18. Leveling blocks & bolts;
19. Toolbox and tools;
20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
2. X, Y, Z rails adopts imported linear guideway, Y-axis adopts quenching - plastic sliding guide rail pair for HMC630;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC,disc type and chain type are available as option;
7. Imported bearings for leadscrews;
8. Imported coupling;
9. Headstock balancing system have nitrogen balance system or hydraulic balance system as option;
10. NC rotary worktable (B axis);
11. Work lamp;
12. Pilot lamp;
13. USB and LAN interface;
14. Manual pulse generator (MPG);
15. Centralized automatic lubrication system.
16. Cooling system.
17. Heat exchanger for electrical cabinet ;
18. Leveling blocks & bolts;
19. Toolbox and tools;
20. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Optional accessories
1. ZF or BF reducer;
2. Circular Coolant Nozzle;
3. Coolant through spindle (CTS);
4. Spindle oil cooler;
5. Air conditioner (A/C) for electrical cabinet;
6. Auto. Tool length measurement system;
7. Auto. Workpiece measurement systems;
8. Optional with sprial type chip conveyor and chain type chip conveyor.
2. Circular Coolant Nozzle;
3. Coolant through spindle (CTS);
4. Spindle oil cooler;
5. Air conditioner (A/C) for electrical cabinet;
6. Auto. Tool length measurement system;
7. Auto. Workpiece measurement systems;
8. Optional with sprial type chip conveyor and chain type chip conveyor.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction

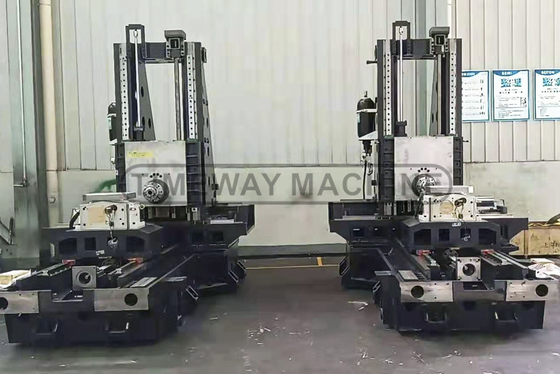

Factory Display：
