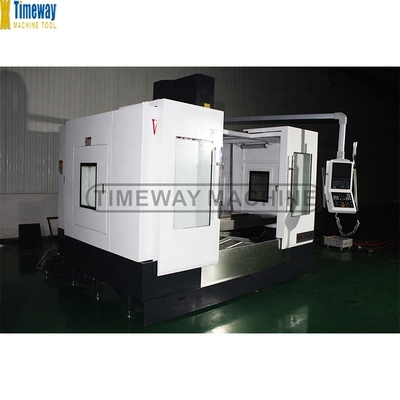

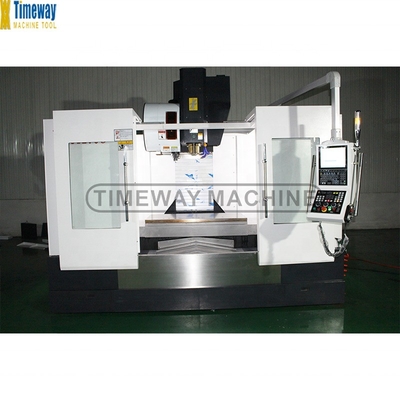

1300mm X-axis Travel CNC 3 Axis Vertical Machining Center with Fanuc/Siemens Controller
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT50 |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | VERTICAL |
| Dimension(L*W*H): | 3820x2600x3100mm | Weight (T): | 10 T |
| Table Size (mm): | 1360*700 | CNC Control System: | GSK, FANUC, MITSUBISHI, Siemens |
| Number Of Axes: | 3 | Table Travel (X) (mm): | 1300 |
| Table Travel (Y) (mm): | 700 | Table Travel (Z) (mm): | 700 |
| Positioning Accuracy (mm): | ±0.01 | Repeatability (X/Y/Z) (mm): | ±0.008 |
| Range Of Spindle Speed(r.p.m): | 0 - 6000 R.p.m | Spindle Motor Power(kW): | 15 |
| Max. Table Load(kg): | 1200 Kg | Feed Speed(mm/min): | 0 - 15 Mm/min |
| Min. Time Of Tool Change(s): | 2 | Tool Magazine Capacity: | Other, 16, 10, 12 |
| Key Selling Points: | Competitive Price | Warranty: | 1 Year |
| Voltage: | 220/380/400V | Marketing Type: | Hot Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 1360x700mm |
| Number Of Axis: | 3 | X-axis Travel: | 1300mm |
| Y-axis Travel: | 700mm | Product Name: | 3-axis Vertical Cnc Machining Center |
| Machine Type: | Vertical CNC Milling Machine | Product Type: | Cnc 3 Axis Machine |
| Keywords: | Vertical Machine Center VMC | Name: | Vertical Machine Center CNC Machine |
| Color: | Custom-made | Applicable Industries: | Construction Works |
| Showroom Location: | Egypt, Turkey, United Kingdom, United States, Italy, Viet Nam, Brazil, Peru, Indonesia, Pakistan, India, Russia, Spain, Thailand, South Korea, Chile, UAE, Romania, Ukraine, Uzbekistan | Core Components: | Motor |
| Rapid Feed Speed(m/min): | 15/15/15 | ||
Product Description
Products Description
CNC Vertical Machining Center

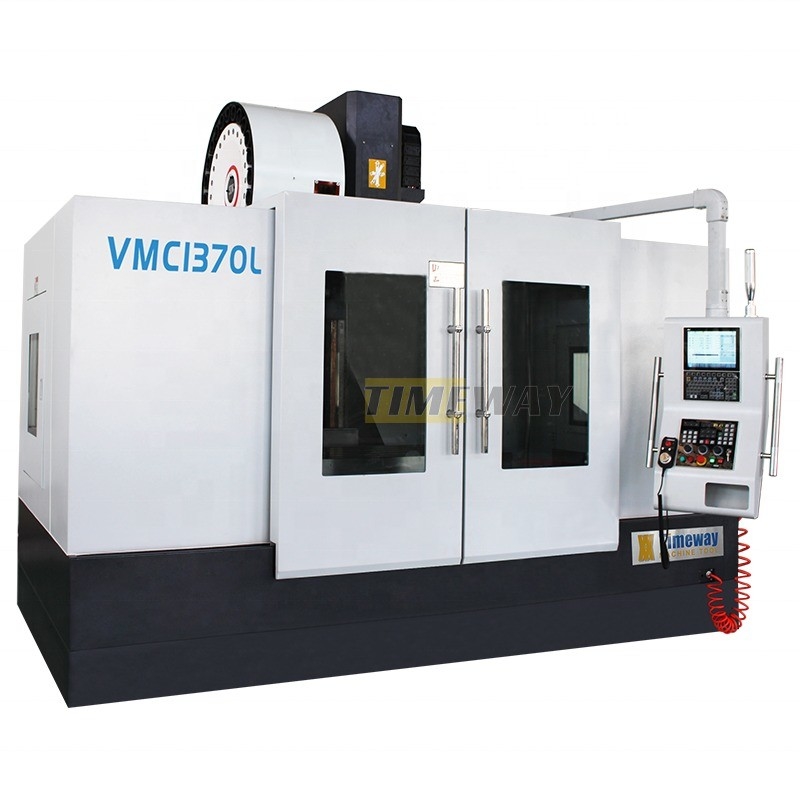

Specification | Unit | VMC1370 | VMC1580 | VMC1690 | VMC1890 |

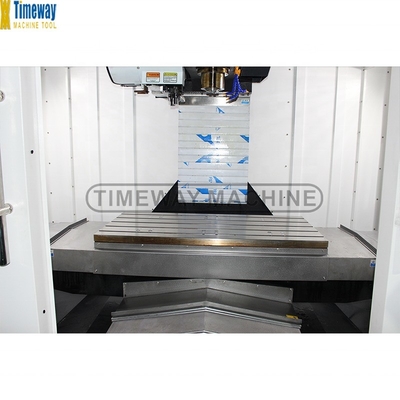

Worktable size (LxW) | mm | 1360x700 | 1700x800 | 1800x900 | 1800x900 |
T-slot (No./width/pitch) | mm | 5/18/152.5 | 5/22/135 | 5/22/165 | 5/22/165 |
Loading capacity | kg | 1200 | 1500 | 1600 | 1600 |
Longitudinal travel (X) | mm | 1300 | 1500 | 1600 | 1800 |
Cross travel (Y) | mm | 700 | 800 | 900 | 900 |
Vertical travel (Z) | mm | 700 | 700 | 680 | 680 |

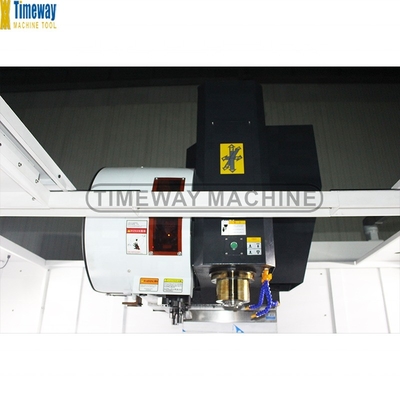

Spindle taper | - | BT50 | BT50 | BT50 | BT50 |
Spindle speed | rpm | 6000 | 6000 | 6000 | 6000 |
Main motor power | kw | 15/18.5 | 15/18.5 | 18.5/22 | 18.5/22 |
Tool magazine capacity | T | 24 (Disc) | 24 (Disc) | 24 (Disc) | 24 (Disc) |
Machine weight | kg | 10000 | 14000 | 14800 | 15000 |
Machine dimensions (LxWxH) | mm | 3820x2600 x3100 | 4200×3520 ×3100 | 4290×3960 ×3440 | 4590×3960 ×3440 |

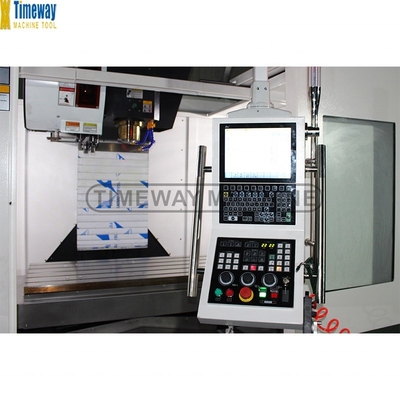

· SIEMENS 808D control · Manual pulse generator(MPG) · USB &LAN interface · Work lamp · Pilot lamp · Cooling system · Auto. lubrication system · Leveling wedge and bolts · Full enclosed splash guard · Heat exchanger · Tool & tool box · Operator manual(English) | · 4th axis wring · NC rotary table · Direct driven spindle · Circular coolant nozzle · Coolant through spindle(CTS) · Spindle oil cooler · Air conditioner for electrical cabinet · Auto. measurement system · Screw type chip conveyor · Chain type chip conveyor · Safety door · Oil skimmer |
Positive Comments From Customers
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
