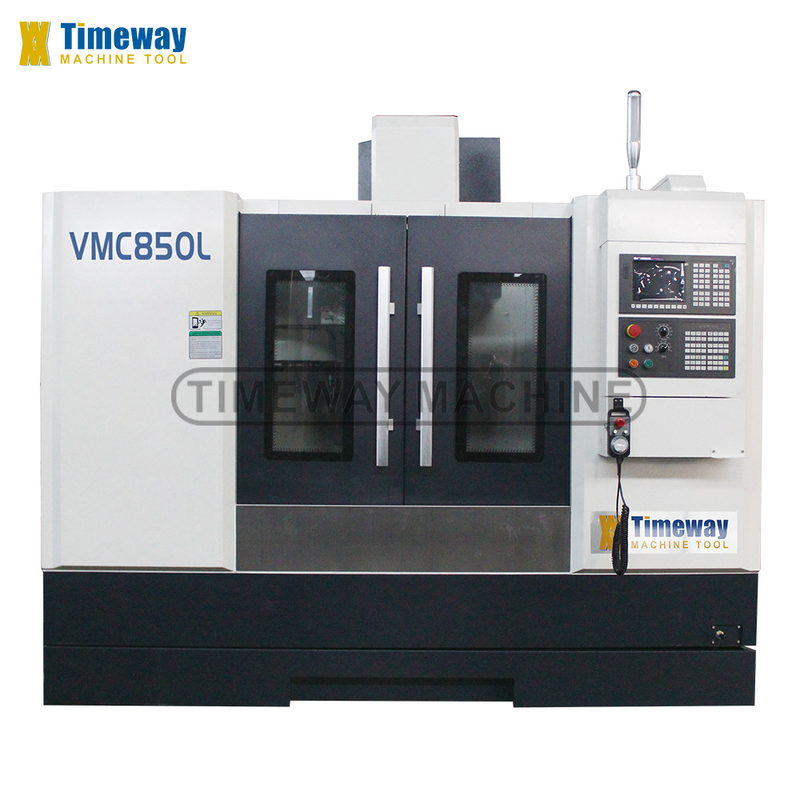

Precision Repeatability X/Y/Z mm ±0.006 VMC850L Vertical Machining Center for Metal
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $29,000.00/sets >=1 sets |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | BT40 |
|---|---|---|---|
| No. Of Spindles: | 3 | Type: | VERTICAL |
| Dimension(L*W*H): | 2800 2350 2600 | Weight (T): | 4600 KG |
| Table Size (mm): | 1000x500 | Table Travel (X) (mm): | 800 |
| Table Travel (Y) (mm): | 500 | Table Travel (Z) (mm): | 500 |
| Positioning Accuracy (mm): | ±0.008 | Repeatability (X/Y/Z) (mm): | ±0.006 |
| Range Of Spindle Speed(r.p.m): | 0 - 8000 R.p.m | Max. Table Load(kg): | 500 Kg |
| Feed Speed(mm/min): | 0 - 48000 Mm/min | Min. Time Of Tool Change(s): | 5 |
| Tool Magazine Capacity: | 24 | Key Selling Points: | Automatic, Competitive Price, High Safety Level, High-accuracy, Energy Saving, Sustainable, High Productivity, Long Service Life, Easy To Operate, Digital |
| Warranty: | 1 Year | Marketing Type: | Hot Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machining Capacity: | Medium Duty |
| Spindle Bore(mm): | Other | Cutting Torque: | 0 N.m |
| Rapid Feed Speed(mm/min): | 0 - 48000 Mm/min | Product Name: | 3-axis Vertical Cnc Machining Center |
| Machine Type: | Vertical CNC Milling Machine | Keywords: | Vmc Machine Center |
| CNC Or Not: | CNC Systemn | Application: | Metal Machining |
| Product Type: | Cnc 3 Axis Machine | Processing: | Metal Cutting Cnc Milling Machine |
| Precision: | High Precision Machining Center | Function: | Machining Metal |
| X/Y/Z Axis Travel: | 800*500*500mm | ||
Product Description
Product Description
Specification

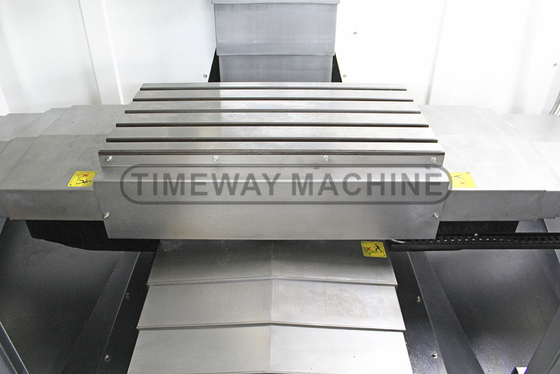

Worktable size (LxW) | 1000×500mm |
T-slot (No./width/pitch) | 5-18-100mm |
Loading capacity | 500kg |
Longitudinal travel (X) | 800mm |
Cross travel (Y) | 500mm |
Vertical travel (Z) | 500mm |
Distance from spindle nose to table | 110-610mm |
Distance from spindle center to column | 524mm |
Spindle taper | BT-40（150） |
Spindle speed | 8000rpm |
X/Y/Z-axis rapid feed speed | 48/48/15m/min |
X/Y/Z-axis servo motor (FANUC) | β12/β12/β22 |
X/Y/Z-axis positioning accuracy | ±0.008mm |
X/Y/Z-axis repositioning accuracy | ±0.006mm |
Main motor power | 7.5/11kw |
Air pressure source | 6~8kg/cm² |
Power capacity | 20Kva |

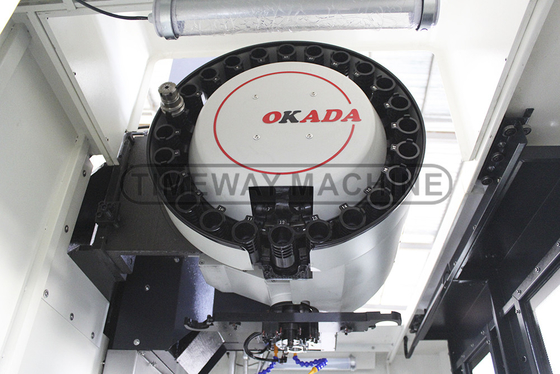

Tool magazine capacity | 24 (Disc)T |
Guideway type | X/Y:Linear；Z：Sliding |
Machine weight | 4600kg |
Machine dimensions (LxWxH) | 2800×2350×2600mm |
MAIN CONFIGURATION
1. Resin sand casting;
2. X, Y rails adopts imported linear guideway; Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
7. Imported bearings for leadscrews;
8. Import coupling;
9. Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosure; 11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp; 14. Pilot lamp;
15. USB and LAN interface;
16. Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
18. Cooling system.
19. Heat exchanger for electrical cabinet ;
20. Leveling blocks & bolts; 21. Toolbox and tools;
22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
2. X, Y rails adopts imported linear guideway; Z rails are quenching - plastic sliding guide rail pair;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Standard with belt driven spindle, optional for direct driven spindle;
5. Taiwan production pneumatic cylinder;
6. Taiwan ATC, carousel type and disc type are available as option;
7. Imported bearings for leadscrews;
8. Import coupling;
9. Headstock balancing system have heavy casting or nitrogen balance system as option;
10. Full enclosure; 11. Rigid tapping;
12. Spindle center air blast;
13. Work lamp; 14. Pilot lamp;
15. USB and LAN interface;
16. Manual pulse generator (MPG);
17. Centralized automatic lubrication system.
18. Cooling system.
19. Heat exchanger for electrical cabinet ;
20. Leveling blocks & bolts; 21. Toolbox and tools;
22. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
OPTIONAL CONFIGURATION
1. The 4th axis wiring;

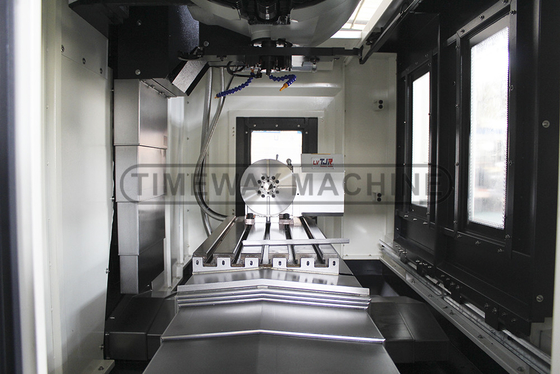

2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
7. Air conditioner (A/C) for electrical cabinet;
8. Auto. Tool length measurement system;
9. Auto. Workpiece measurement systems;
10. Screw type chip conveyor;
11. Chain type chip conveyor;
12. High pressure water flush system;
13. Safety door;
14. Oil skimmer
2. NC rotary table;
3. Direct driven spindle (Speed: 10000rpm, 12000rpm, 15000rpm);
4. Circular Coolant Nozzle;
5. Coolant through spindle (CTS);
6. Spindle oil cooler;
7. Air conditioner (A/C) for electrical cabinet;
8. Auto. Tool length measurement system;
9. Auto. Workpiece measurement systems;
10. Screw type chip conveyor;
11. Chain type chip conveyor;
12. High pressure water flush system;
13. Safety door;
14. Oil skimmer
