7.5 kw Main Motor Power High Precision Slant Bed CNC Lathe For Industry
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | CK45 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $48,900.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 750 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Medium Duty |
| Max. Weight Of Workpiece(kg): | 600 | No. Of Spindles: | Single |
| Number Of Axes: | 1 | Travel (X Axis)(mm): | 220 Mm |
| Travel (Z Axis)(mm): | 850 Mm | Positioning Accuracy (mm): | ±0.003mm |
| Repeatability (X/Y/Z) (mm): | ±0.003mm | Dimension(L*W*H): | 2900*1800*1600mm |
| Voltage: | 220/380V | CNC Control System: | FANUC |
| Tool Post Stations: | 8 | Weight (KG): | 3200 |
| Warranty: | 1 Year | Key Selling Points: | Automatic, Competitive Price |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Range Of Spindle Speed(r.p.m): | 0 - 2500 R.p.m |
| Travel (Y Axis)(mm): | 45 Mm | Spindle Taper: | ISO40 |
| Cutting Torque: | 456 N.m | Rapid Feed Speed(mm/min): | 0 - 20 Mm/min |
| Feed Speed(mm/min): | 0 - 20 Mm/min | Min. Time Of Tool Change(s): | 0.7 |
| Machine Type: | CNC Slant Bed Lathe | CNC Or Not: | CNC |
| Keyword: | Cnc Lathe | After-sales Service Provided: | Online Support |
| Max. Swing Over Bed: | 500 Mm | Max. Turning Length: | 750 Mm |
| Bed Structure: | 45° Integral Bed | Main Motor Power: | 7.5 Kw |
| Machine Dimensions (L*W*H): | 2900*1800*1600 Mm | Machine Weight: | 3200 Kg |
Product Description
Products Description

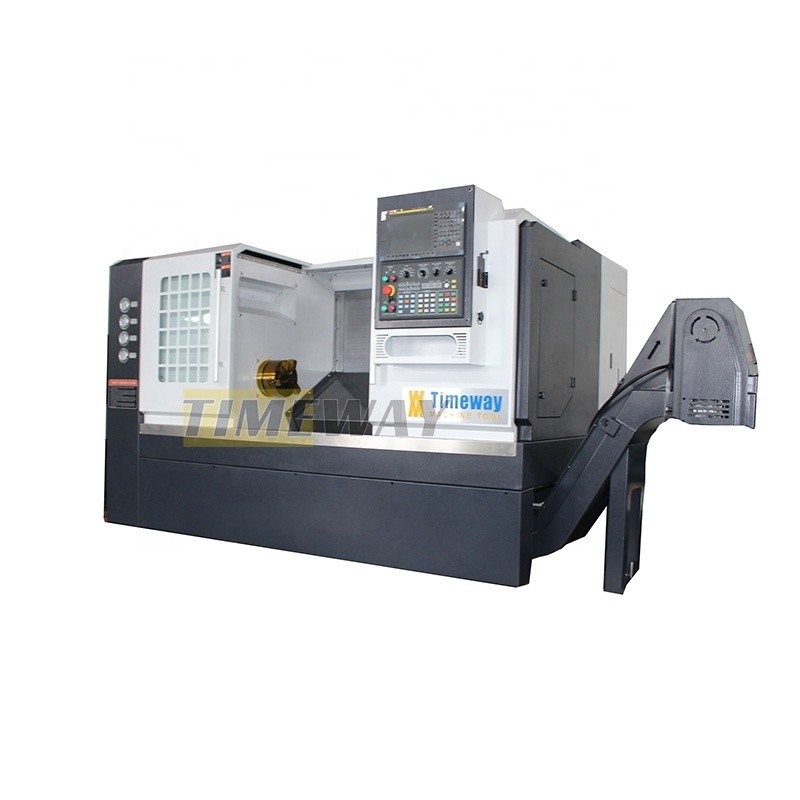

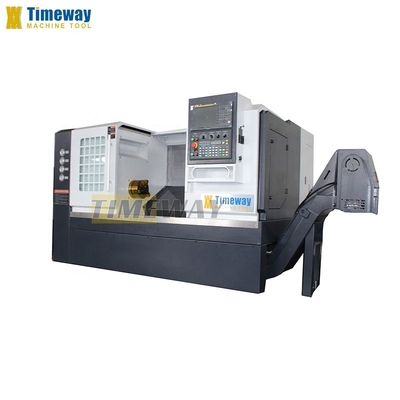

Slant Bed CNC Lathe CK45
Specification | Unit | CK-32 | CK-36 | CK-45 |
Max. swing over bed | mm | 420 | 550 | 500 |
Max. swing over cross slide | mm | 220 | 220 | 220 |
Standard turning diameter | mm | 210 | 210 | 210 |
Max. turning diameter | mm | 320 | 360 | 360 |
Max. turning length | mm | 350 | 500 | 750 |
Spindle speed | rpm | 3500 | 3000 | 2500 |
Spindle nose | - | A2-5 | A2-6 | A2-6 |
Spindle bore | mm | 56 | 62 | 66 |
Hydraulic chuck size | mm | 160 | 200 | 200 |
Cross travel (X) | mm | 210 | 230 | 220 |
Longitudinal travel (Z) | mm | 450 | 600 | 850 |
X/Z-axis rapid feed speed | m/min | 20/12 | 24/24 | 20/20 |
Hydraulic cool post type | - | 80-8T | 80-8T | 80-8T |
Tool section size | mm | 25x25/Φ32 | 25x25/Φ32 | 25x25/Φ32 |
Tailstock quill diameter | mm | 52 | 110 | 110 |
Tailstock quill travel | mm | 60 | 100 | 100 |
Tailstock quill taper | - | MT4 | MT5 | MT4 |
Bed structure | - | 45° Integral bed | 45° Integral bed | 45° Integral bed |
Guideway type | - | Linear/Sliding | Linear/Sliding | Linear/Sliding |
Main motor power | kw | 7.5 | 11 | 7.5 |
Power supply | kva | 30 | 25 | 30 |
Machine dimensions (LxWxH) | mm | 2600x1800x1600 | 2900x1800x1750 | 2900x1800x1600 |
Machine weight | kg | 2700 | 3200 | 3200 |
FANUC CNC system, 8-station hydraulic tool post, Hydraulic chuck, Electronic handwheel, Lubrication system, Cooling system, Work lamp, Pilot lamp, Full protection guard, Heat exchanger, Leveling blocks & bolts, Tools & tool-box, Operation manuals. | GSK, SIEMENS CNC system, Air conditioner, Hydraulic hollow chuck, Tool setter, Bar feeder, Hydraulic tailstock, Chain type chip conveyor. |

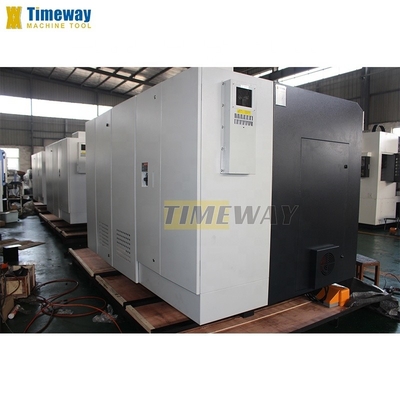

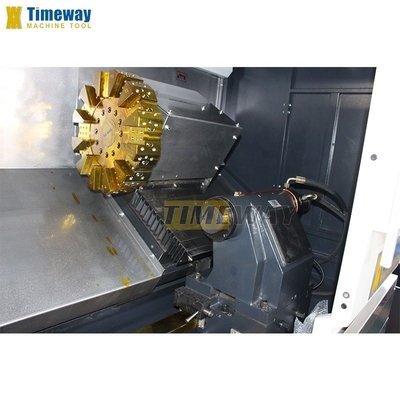

Machine Details
Positive Comments From Customers
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction

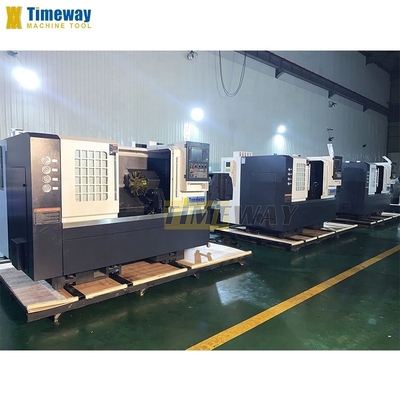

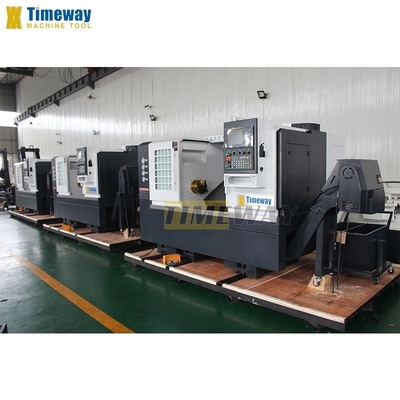

Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
