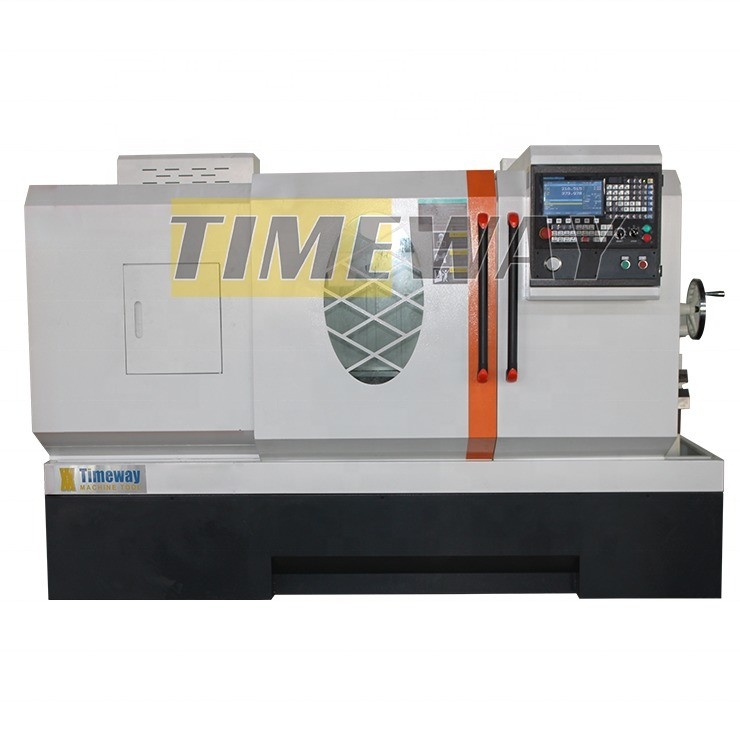

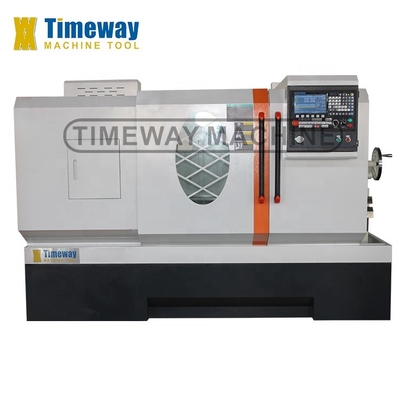

CK Series FANUC CNC Turning Machine Flat Bed Type Lathe Max. Length of Workpiece 750mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | CK-400S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $45,000.00/sets 1-9 sets |
| Packaging Details: | in wooden case (can be fumigated) or plywood case |
| Supply Ability: | 200 Set/Sets per Year |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 750 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 450 Mm | Spindle Motor Power(kW): | 3.7 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 235 Mm | Travel (Z Axis)(mm): | 320 Mm |
| Positioning Accuracy (mm): | ±0.001 | Repeatability (X/Y/Z) (mm): | ±0.01 |
| Dimension(L*W*H): | 1870/2120/2370x1200x1415mm | Voltage: | As Customer's Request |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 1800 | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Automatic Grade: | Automatic |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Color: | Customized |
| Cnc Turning Machine: | Cnc Lathe Machine | Max. Swing Diameter: | 400mm |
| Power: | 3.7 Kw | Weight: | 1800kg |
| Condition: | New | Spindle Bore(mm): | 52 |
| Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining | Showroom Location: | Canada, United States, Italy, Germany, Mexico, Spain, South Africa, Australia |
| Marketing Type: | Ordinary Product | Core Components: | Motor, Engine |
| Max. Spindle Speed (r.p.m): | 1800 R.p.m | Max. Turned Length (mm): | 750 |
| Port: | China Port | ||
Product Description
Products Description
Features :
1. The nachine adopts global famous controller with RS232 interface.
2. Longitudinal and cross feeds are effected by ball leadscrews.
3.Either vertical or horizontal 4/6 station tool post or gang tools can be selected.
4. The tool post is located on precision contrite gears with a high repeated positioning accurcy.
5. Both chuck and tailstock are supplied with hydraulic or manual type.
6. The surface of the guideways is supersonic frequency hardened and precision ground with a long sercice life.
7. The spindle system is high in the rigidity and accuracy.
8. An inverter is used to realize variable speed.
1. The nachine adopts global famous controller with RS232 interface.
2. Longitudinal and cross feeds are effected by ball leadscrews.
3.Either vertical or horizontal 4/6 station tool post or gang tools can be selected.
4. The tool post is located on precision contrite gears with a high repeated positioning accurcy.
5. Both chuck and tailstock are supplied with hydraulic or manual type.
6. The surface of the guideways is supersonic frequency hardened and precision ground with a long sercice life.
7. The spindle system is high in the rigidity and accuracy.
8. An inverter is used to realize variable speed.
Model | CK-300S | CK-360S | CK-400S | CK-400A | CK-460A | CK-500B | CK-660 | ||||||
Max. swing over bed | 300mm | 360mm | 400mm | 460mm | 500mm | 660mm | |||||||
Max. swing over slide | 135/100mm | 180/100 mm | 240/150mm | 210/165 mm | 250/205 mm | 310mm | 430mm | ||||||
Max. cross travel (X) | 180/270mm | 235/300mm | 250/330mm | 300mm | 365mm | ||||||||
Max. length of workpiece | 500mm | 500/750/ 1000mm | 750/1000/150mm | 750/1000/1500/2000/3000mm | |||||||||
Rapid feed for Axis X | 8m/min | ||||||||||||
Rapid feed for Axis Z | 10m/min | ||||||||||||
Range of spindle speeds | 200-3500rpm | 200-1800rpm | 1000-2000rpm | 200-1600rpm(high) 25-250rpm(low) | 20-150,150-433 433-1300rpm | ||||||||
Spindle bore | 38mm | 40mm | 52mm | 80mm | 80mm | 105mm | |||||||
Taper of spindle bore | MT NO.5 | MT NO.6 | MT NO.7 | 1:20 | |||||||||
Number of tools | 4 or 6 or gang tools | ||||||||||||
Size of tool shank | 16×16mm | 20×20mm | 25×25mm | 32×32mm | |||||||||
Min input | 0.001mm | ||||||||||||
Repeatability (X/Z) | 0.0075/0.01mm | ||||||||||||
Power of main motor | 3kw | 3.7kw | 5.5kw | 7.5kw | 11kw | ||||||||
Power of coolant pump | 75w | ||||||||||||
Overall dimension (L×W×H) | 1500×945× 1380mm | 1870/2120/2370×1200×1415 | 2060/2310/2790× 1180×1500mm | 2250/2500/3000/ 3500/4500×1200 ×1520mmm | 2250/2500/3000/3500 ×1250× 1580mm | ||||||||
Net weight | 950kg | 1700/2000 /2200kg | 1800/2100/2300kg | 2380/2580/3050 kg | 3000/3300/3550/ 3800/4200kg | 3500/3800/4050 /4300/4700kg | |||||||
Standard accessories:
FANUC 0i mate controller,
FANUC servo feed motor,
Inverter main motor,
NSK bearings,
3 jaw chuck,

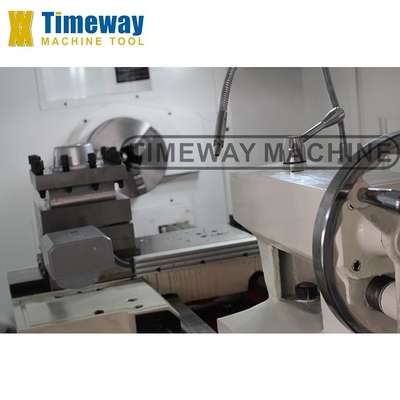

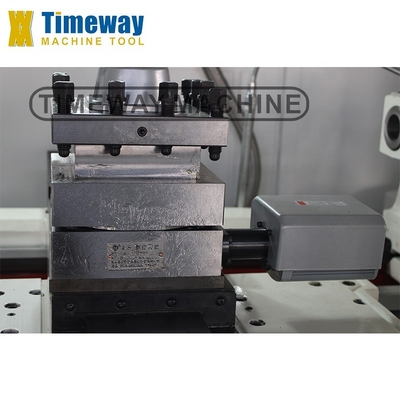

4station electric tool post,
Manual tailstock,
Automatic lubricatiing unit,
Cooling system,
Lighting unit,
General tools,
General tools,
Operation manaual (English edition).
Optional accessories:
Other brand controllers,
6 station electric tool post,
Gang type tool post,
Hydraulic solid chuck,
Hydraulic hollow chuck, Hydraulic tailstock
