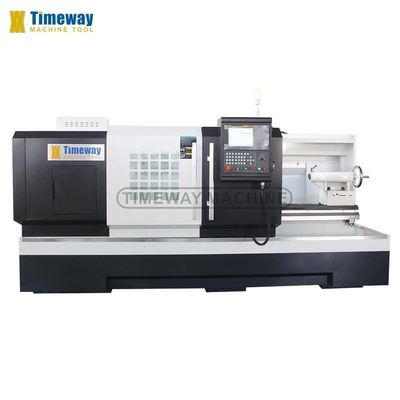

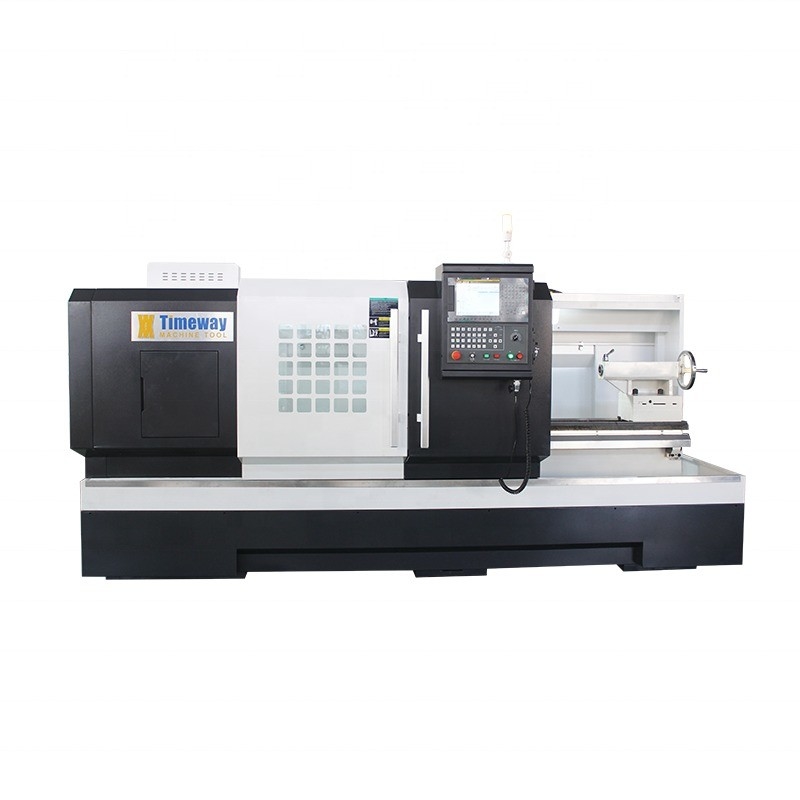

11/15kW Power CK-660 660mm swing FANUC Flat Bed Type CNC Lathe Machine for Metal Sale
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | CK-660 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $70,000.00/sets 1-2 sets |
| Packaging Details: | in wooden case (can be fumigated) or plywood case |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Type: | Horizontal, Flat Bed Cnc Lathe | Max. Length Of Workpiece (mm): | 2000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 430 Mm | Spindle Motor Power(kW): | 11/15 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 365 Mm | Travel (Z Axis)(mm): | 2000 Mm |
| Positioning Accuracy (mm): | 0.01 | Repeatability (X/Y/Z) (mm): | 0.005 |
| Dimension(L*W*H): | As Models. | Voltage: | As Customer's Request |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 2800 | Warranty: | 1 Year |
| Key Selling Points: | Energy Saving | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Power(W): | 11/15 Kw |
| Keyword: | Cnc Lathe Machine For Metal | Weight: | As Models. |
| Name: | Metal Cnc Lathe | Max. Swing Diameter (mm): | 660 |
| Product Name: | CNC Lathe Mechine | Max. Turning Length: | 2000mm |
| Machine Type: | Flat Bed CNC Lathe | Condition: | New |
| Toolpost Brand: | Hydex | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Canada, United States, Italy, Germany, Indonesia, Mexico, Russia, Spain, South Africa, Australia | Marketing Type: | Ordinary Product |
| Core Components: | Bearing, Motor, Pump, Gear, Engine | Max. Spindle Speed (r.p.m): | 1600 R.p.m |
| Spindle Bore(mm): | 105 | Max. Turned Length (mm): | 2000 |
| Port: | China Port | ||
Product Description
Product Description
Flat Bed Type CNC Lathe Machine
Feature：
*The machine adopts global famous controller RS232 interface.
* Longitudinal and cross feeds are effected by ball leadscrews.

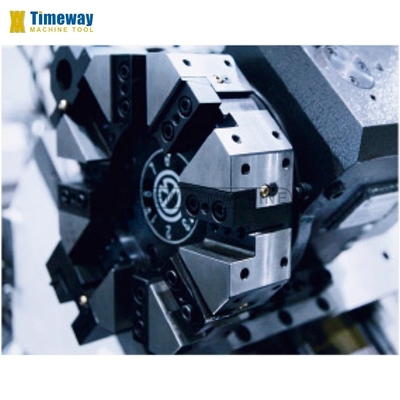

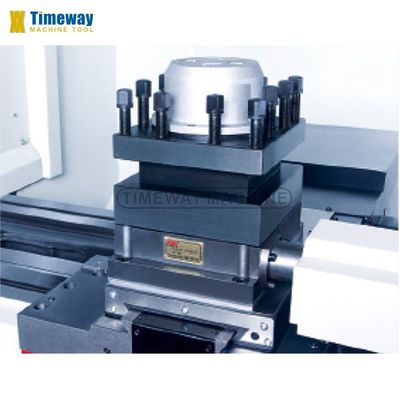

* Either vertical or horizontal 4/6 station tool post or gang tools can be selected.
* The tool post is located on precision contrite gears with a high repeated positioning accurcy.
* Both chuck and tailstock are supplied with hydraulic or manual type.

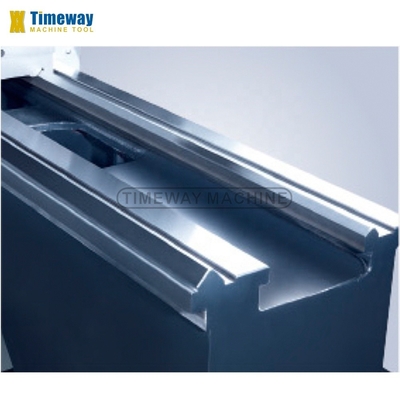

* The surface of the guideways is supersonic frequency hardened and precision ground with a long sercice life.
* The spindle system is high in the rigidity and accuracy.
* An inverter is used to realize variable speed.
* Longitudinal and cross feeds are effected by ball leadscrews.
* Either vertical or horizontal 4/6 station tool post or gang tools can be selected.
* The tool post is located on precision contrite gears with a high repeated positioning accurcy.
* Both chuck and tailstock are supplied with hydraulic or manual type.
* The surface of the guideways is supersonic frequency hardened and precision ground with a long sercice life.
* The spindle system is high in the rigidity and accuracy.
* An inverter is used to realize variable speed.
Specification
Specification | Unit | CK-660 |
Max. swing over bed | mm | 660 |
Max.. swing over cross slide | mm | 430 |
Bed width | mm | 390 |
Spindle nose | mm | D10 |
Spindle bore | mm | 105 |
Spindle speed (Manual steps) | rpm | 45-1600 (3) |
Center height | mm | 330 |
Chuck size | mm | 320 |
Cross travel (X) | mm | 365 |
X/Z-axis rapid feed speed | mm/min | 8/12 |
X/Z-axis min. feed unit | mm | 0.001 |
X/Z-axis feed motor torque | NM | 7.5/10 |
Standard accessories:
GSK 980TDI 3-jaw chuck 4-station electronic tool post Electronic handwheel Lubrication system Cooling system
Work lamp Protection guard Axial fan Leveling blocks & bolts Tools & tool-box Operation manuals
Work lamp Protection guard Axial fan Leveling blocks & bolts Tools & tool-box Operation manuals
Optional accessories:
FANUC CNC system SIEMENS CNC system 4-jaw chuck Horizontal 6-station tool post
Horizontal 8-station tool post Pilot lamp Air conditioner Heat exchanger Hydraulic chuck
Special fixture Tool setter Chain type chip conveyor
Horizontal 8-station tool post Pilot lamp Air conditioner Heat exchanger Hydraulic chuck
Special fixture Tool setter Chain type chip conveyor
