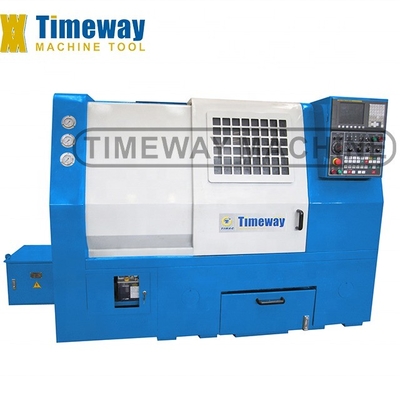

Max. Swing Diameter of 440mm Single Spindle CNC Turning Center with Machining Capability
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | AK-15 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $85,000.00/sets 1-9 sets |
| Packaging Details: | in wooden case (can be fumigated) or in plywood case |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 600 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 400 Mm | Spindle Motor Power(kW): | 25 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 180 Mm | Travel (Z Axis)(mm): | 480 Mm |
| Positioning Accuracy (mm): | 0.025 | Repeatability (X/Y/Z) (mm): | 0.01 |
| Dimension(L*W*H): | As Requst | Voltage: | As Customer's Request |
| Tool Post Stations: | 8 | Weight (KG): | 2130 |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| Automatic Grade: | Automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Maximum Workpiece Length: | 600 | Power(W): | As Model |
| Max. Swing Diameter: | 440mm | Weight: | As Table |
| Cross Trave(X)l: | 210mm | Longitudinal Travel(Z): | 480mm |
| Spindle Bore: | 62mm | Condition: | New |
| Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Retail, Energy & Mining | Showroom Location: | Canada, United States, Germany |
| Marketing Type: | Ordinary Product | Core Components: | Bearing, Motor, Engine |
| Max. Spindle Speed (r.p.m): | 4500 R.p.m | Spindle Bore(mm): | 62 |
| Max. Turned Length (mm): | 600 | Port: | China Port |
Product Description
Products Description
Features:
1.This CNC turning center is semi-closed loop CNC machine tools suitable to turn various complicated shaft, sleeve and disk-like
work-pieces, such as turning of internal and external cylindrical, conical and other circumgyration surface as well as various
metric, inch, modular and diametric pitch threads;
2. They can also be used for oil grooves and keyways broaching, end-facing, grooving and chamfering, etc
3. Besides turning applications, the high speed and high efficiency turning center can also
be used to drill and mill for various complicated work-piece machining by its X/Z/C 3-axis combined motion;
4. The unique construction developed using FEA techniques to provide maximum stiffness under the heaviest cutting conditions;
5. The machining accuracy is about IT5~IT6, and the surface roughness is about Ra0.4um for nonferrous metal cutting and Ra0.8um
for ferrous metal;
6. It is especially suitable for the machining of high precision work-pieces, and also widely used to machining parts in batches
in the fields of automobile, motorcycle, railroad, aero-craft, home-appliance, bearing, hardware, etc.
1.This CNC turning center is semi-closed loop CNC machine tools suitable to turn various complicated shaft, sleeve and disk-like
work-pieces, such as turning of internal and external cylindrical, conical and other circumgyration surface as well as various
metric, inch, modular and diametric pitch threads;
2. They can also be used for oil grooves and keyways broaching, end-facing, grooving and chamfering, etc
3. Besides turning applications, the high speed and high efficiency turning center can also
be used to drill and mill for various complicated work-piece machining by its X/Z/C 3-axis combined motion;
4. The unique construction developed using FEA techniques to provide maximum stiffness under the heaviest cutting conditions;
5. The machining accuracy is about IT5~IT6, and the surface roughness is about Ra0.4um for nonferrous metal cutting and Ra0.8um
for ferrous metal;
6. It is especially suitable for the machining of high precision work-pieces, and also widely used to machining parts in batches
in the fields of automobile, motorcycle, railroad, aero-craft, home-appliance, bearing, hardware, etc.
Specification | Unit | AK-15 | AK-25M | AK-35M | ||
Max.swing over bed | mm | 440 | 520 | 660 | ||
Max.turning dia.over bed | mm | 300 | 420 | 550 | ||
Max.turning length | mm | 450 | 530/905 | 780/1530 | ||
X-axis rapid feed speed | m/min | 20 | 12 | 12 | ||
Z-axis rapid feed speed | m/min | 24 | 15 | 15 | ||
Spindle speed range | rpm | 50-4500 | 35-3500 | 25-2500 | ||
Spindle nose | A2-6 | A2-8 | ||||
Chuck size | 8" | 10" | 12" | |||
Spindle front end bearing(dia.) | mm | 100 | 130 | 160 | ||
Spindle bore(dia.) | mm | 62 | 87 | 92 | ||
C-axis indexing(incremental unit) | 0.001 | |||||
Number of stations | 8 | 12 | ||||
Indexing time | s | 0.58 | 0.4 | 1 | ||
Tool shank size | mm | 25×25 | ||||
Boring bar shank dia. | mm | 40 | 50 | |||
Tool speed | rpm | 40-4000 | ||||
Main spindle motor | kw | 9.0/11 | 18.5/15 | 30/22 | ||
X-axis servo motor | kw | 1.6 | 3 | |||
Z-axis servo motor | kw | 3 | 4 | |||
Tool driving motor | kw | A3/10000i | ||||
Max. travel of tailstock | mm | 460 | 490/865 | 760/1500 | ||
Dia.of tailstock quill | mm | 80 | 85 | 110 | ||
Travel of tailstock | mm | 130 | 80 | 100 | ||
Taper of tailstock quill | MT-4 | MT-5 | ||||
Coolant capacity | L | 200 | 200/230 | 200/250 | ||
Total power | kw | 25 | 38 | 46 | ||
X-axis positioning accuracy | mm | 0.025 | ||||
X-axis repeatability positioning accuracy | mm | 0.01 | ||||
X-axis reverse warp | mm | 0.012 | ||||
Z-axis positioning accuracy | mm | 0.016 | ||||
Z-axis repeatability accuracy | mm | 0.007 | ||||
Z-axis reverse warp | mm | 0.006 | ||||
