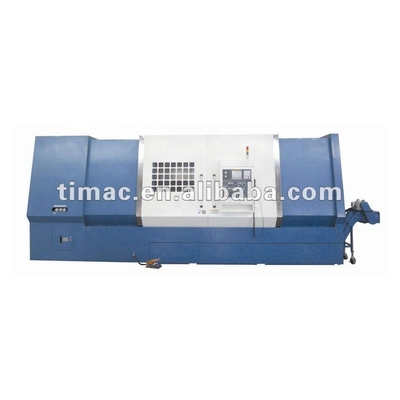

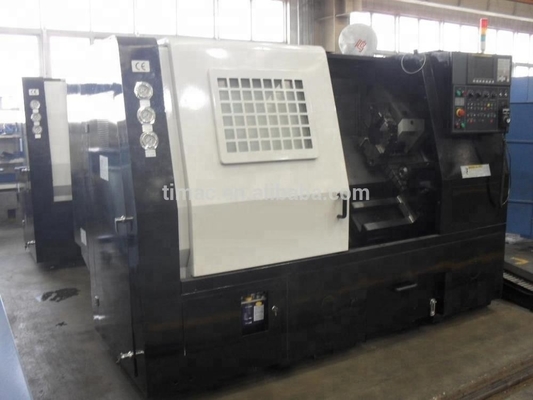

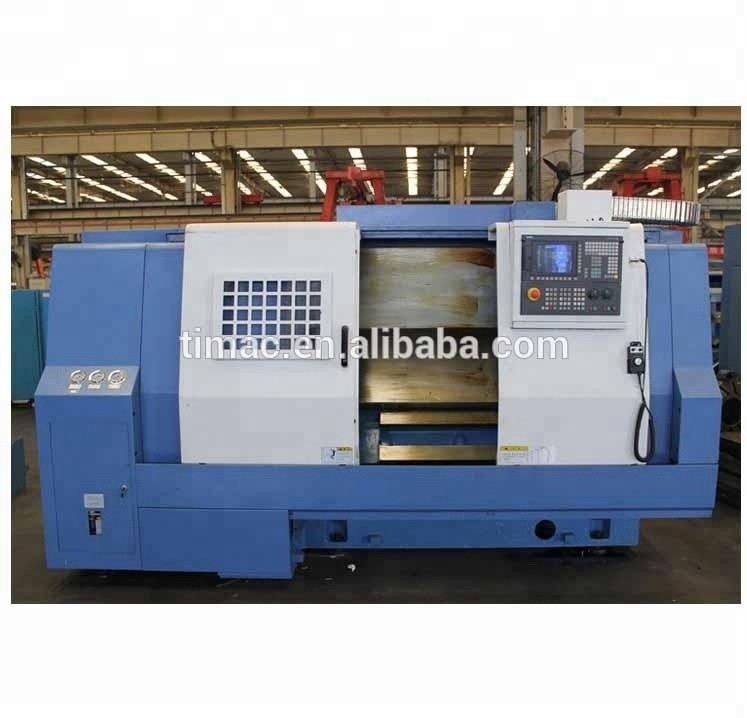

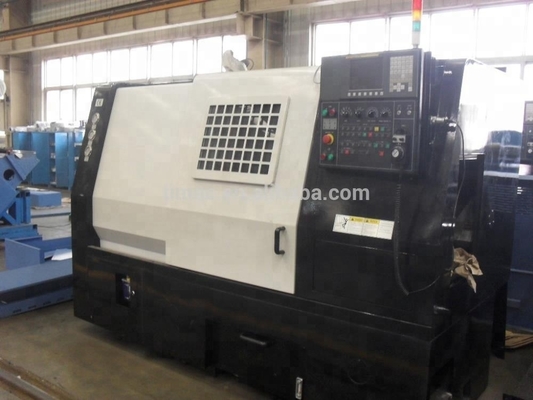

Twin Spindle FANUC Slant Bed CNC Lathe AK-25 with 12 Tool Post Stations
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | ISO9001; CE |
| Model Number: | AK-25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $53,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases (fumigated) |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 180 Mm | Spindle Motor Power(kW): | 30 |
| No. Of Spindles: | Twin | Number Of Axes: | 3 |
| Travel (X Axis)(mm): | 230 Mm | Travel (Z Axis)(mm): | 2965 Mm |
| Positioning Accuracy (mm): | 0.01 Mm | Repeatability (X/Y/Z) (mm): | 0.007 |
| Dimension(L*W*H): | 2270x1470x1650mm | Voltage: | As Required |
| CNC Control System: | FANUC | Tool Post Stations: | 12 |
| Weight (KG): | 4500 | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Automatic Grade: | Automatic |
| After-sales Service Provided: | Online Support | Cnc Lathe: | Machine Tools |
| Max. Swing Diameter: | 520mm | Weight: | 4500/5000kg |
| Power(W): | 30kw | Warrany: | 1 Year |
| Max. Length Of Workpiece: | 3000mm | Condition: | New |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Other | Showroom Location: | France, Peru, Russia, Thailand, Malaysia |
| Marketing Type: | Other | Core Components: | Bearing, Motor, Gear, Gearbox |
| Max. Turned Length (mm): | 1905 | Year: | 2022 |
| Max. Spindle Speed (r.p.m): | 3500 R.p.m | Spindle Bore(mm): | 87 |
| Port: | Tianjin Port | ||
Product Description
Full Function CNC Lathe
Feature:
1. Universal CNC lathe machine
2. Semi-closed loop CNC machine
3. CNC turning center with C axis
4. Slant Bed Type CNC Lathe
Parameter:
| Specification | Unit | AK-25 | AK-35 |
| Swing over bed | mm | 520 | 660 |
| Max.turning dia | mm | 420 | 550 |
| Max.turning dia over carriage | mm | 360 | 420 |
| Max.turning length | mm | 530/905/1405/1905 | 780/1530/1890/2890 |
| Distance between centers | mm | 625/1000/1500/2000 | 890/1640/2000/3000 |
| Max.bar capacity | mm | 70 | 80 |
| X-axis travel | mm | 230 | 305 |
| Z-axis travel | mm | 590/965/1465/1965 | 855/1605/1965/2965 |
| Rapid traverse(x-and z-axis) | m/min | 12.0/15 | 12.0/15 |
| Cutting feed(x-and z-axis) | mm/min | 5000 | 5000 |
| Hand feed(x-and z-axis) | mm/min | 1260 | 1260 |
| Spindle speed | rpm | 35-3500 | 25-2500 |
| Spindle nose | mm | A2-8 | A2-8 |
| Size of chuck | inch | 10" | 12" |
| Spindle front end bearing(dia) | mm | 130 | 160 |
| Spindle bore(dia) | mm | 87 | 92 |
| Number of stations |
| 12 | 12 |
| Indexing time | s | 1 | 1 |
| Tool shank size | mm | 25×25 | 25×25 |
| Boring bar shank dia | mm | 40 | 50 |
| Main spindle motor | kw | 18.5/15 | 30/22 |
| X-axis servo motor | kw | 1.6 | 3 |
| Z-axis servo motor | kw | 3 | 4 |
| Max travel of tailstock | mm | 490/865/1365/1865 | 760/1500/1900/2900 |
| Tailstock quill dia | mm | 85 | 110 |
| Tailstock travel | mm | 80 | 100 |
| Tailstock quill taper hole |
| MT-5 | MT-5 |
| Power | kw | 30 | 46 |
| Machine weight | kg | 5000/5500/6500/7500 | 8000/10000/11000/15000 |
| Floor space |
| 3000/3380×1545, 4550×1630, 4960×1900 | 3620×1820, 4725×1840, 5825×1900, 7000×2200 |
| X-axis positioning accruacy R | mm | 0.01 | 0.01 |
| X-axis positioning accruacy B | mm | 0.012 | 0.012 |
| X-axis positioning accruacy A | mm | 0.025 | 0.025 |
| Z-axis positioning accruacy R | mm | 0.007 | 0.007 |
| Z-axis positioning accruacy B | mm | 0.006 | 0.006 |
| Z-axis positioning accruacy A | mm | 0.016 | 0.016 |
*** Standard accessories:

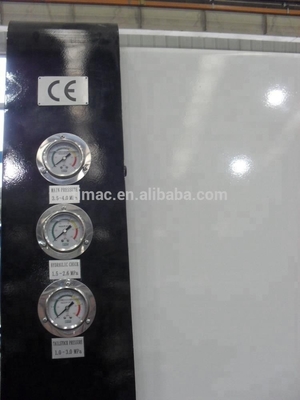

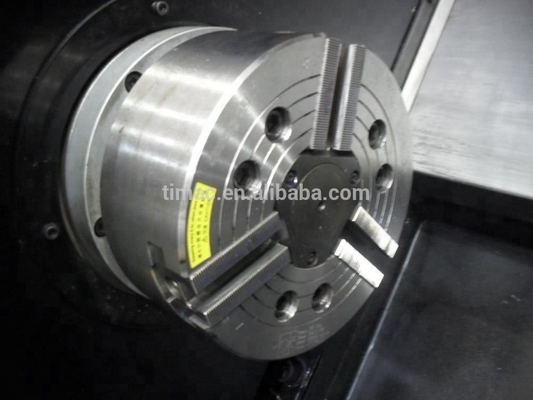

FANUC 0i TD CNC system, Coolant system, Hydraulic system, Standard worklight, Chip splash guard complete, Operation light, Hydraulic slide chuck, Drum type turret, Manual tailstock, C-axis function (M series), Powered turret (M series), Finger chuck (M series), One set of tool kits, Technical documents.
*** Optional accessories:
Chip conveyor, Chip bucket, Tool setter, Hydraulic thru hole chuck, Programming tailstock, Automatic door, Hydraulic steady rest.
* AKJ-15, AKJ-25 Series Economic Type Slant Bed CNC Lathe
* AK-15B Series Slant Bed CNC Lathe
* AK-25 Series Slant Bed CNC Lathe
* AK-15M, AK-25M Sereies CNC Turning Center (With C-axis)
* AK-25DS Sereies Double Spindle CNC Lathe
Package: Wooden pallet & plastic cover (Standard)
or Plywood case (Optional)
Packing size:
One piece in one case: 2950*1150*1750MM N.W./G.W.: 1850/2250KG
