320 r.p.m Max. Spindle Speed CNC Horizontal Boring Lathe Machine for 10tons Bar Turning
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE, ISO |
| Model Number: | AK-1250Cx4000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases (fumigated) |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 4000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 10000/12000 | Width Of Bed (mm): | 970 Mm |
| Spindle Motor Power(kW): | 30 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 700 Mm |
| Travel (Z Axis)(mm): | 4000 Mm | Positioning Accuracy (mm): | ±0.015 |
| Repeatability (X/Y/Z) (mm): | ±0.01 | Dimension(L*W*H): | 6000x2435x2150mm |
| Voltage: | 200V-460V | CNC Control System: | FANUC 0i-TF |
| Tool Post Stations: | 4 | Weight (KG): | 16500 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Cnc Horizontal Boring Machine |
| Max. Workpiece Length: | 4000mm | Color: | Optional |
| Bed Width: | 970mm | Chuck Size: | 1000mm |
| Spindle Bore: | 130mm | Spindle Taper: | 1:20(140mm) |
| Spindle Speed: | 3.15-315rpm(4shifts, Stepless) | CNC System: | FANUC Or SIEMENS |
| Condition: | New | Spindle Bore(mm): | 130 |
| Toolpost Brand: | Yantai Universal | Applicable Industries: | Machinery Repair Shops, Food & Beverage Factory, Energy & Mining |
| Showroom Location: | Canada, United Kingdom, United States, Italy, France, Germany, Brazil, Mexico, Russia, Australia | Year: | Latest Day |
| Max. Spindle Speed (r.p.m): | 320 R.p.m | Max. Turned Length (mm): | 3800 |
| Marketing Type: | Hot Product 2021 | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Gearbox, CNC System |
| Port: | China Port | ||
Product Description

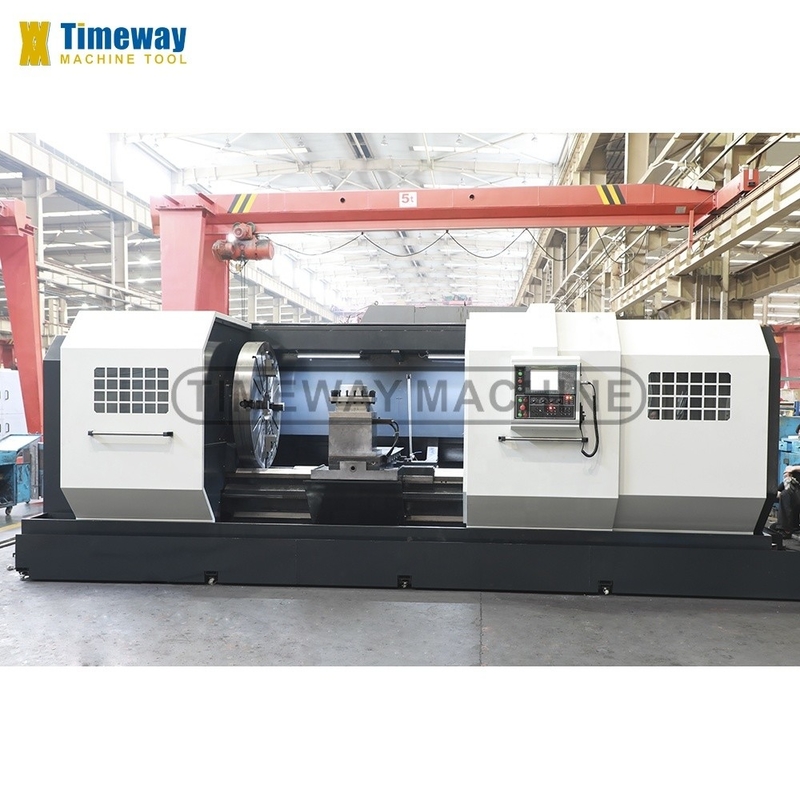

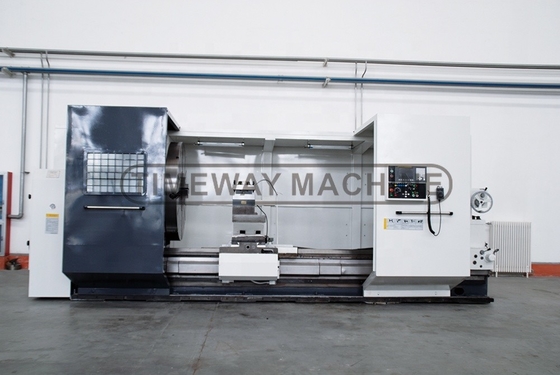

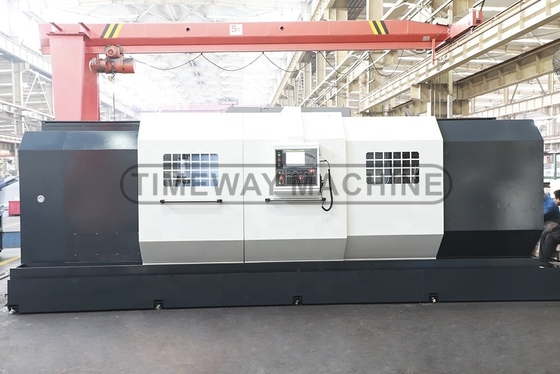

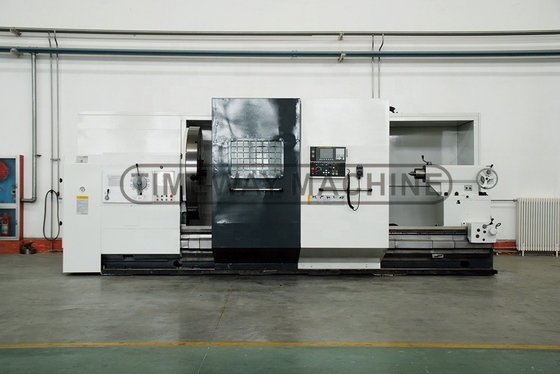

Heavy Duty Horizontal CNC Lathe
Products Description
Standard Accessories | Optional Accessories |
√ FANUC/GSK/SIEMENS CNC system √ 4-jaw chuck √ 4-station electric tool-post √ Work lamp √ Cooling system √ Manual pulse generator (MPG) √ Dead centers √ Oil gun √ Pilot lamp √ Automatic lubrication pump √ Manual moving tailstock √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | _ Steady rest _ Follow rest _ Semi-closed guard _ 6/8-station tool-post _ Live centers _ Air conditioner _ Chip conveyor |
Specification | Unit | AK-1250C | AK-1400C | AK-1600C | AK-1800C | |||
Max. swing over bed | mm | 1250 | 1400 | 1600 | 1800 | |||
Max.. swing over cross slide | mm | 880 | 1010 | 1210 | 1210 | |||
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/- | ||||||
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800/- | ||||||
Bed width | mm | 970 | 970 | 970 | 970 | |||
Loading capacity | kg | 10000 (opt: 12000) | 10000 (opt: 12000) | 10000 (opt: 12000) | 10000 (opt: 12000) | |||
Spindle nose | - | A2-15 | A2-15 | A2-15 | A2-15 | |||
Spindle bore | mm | 130 | 130 | 130 | 130 | |||
Spindle taper | - | Metric 140 | Metric 140 | Metric 140 | Metric 140 | |||
Chuck size (4-jaw) | - | 1250 | 1250 | 1250 | 1250 | |||
Spindle speed (Hydraulic 4steps, stepless) | rpm | 5-320 | 5-320 | 5-320 | 5-320 | |||
Max. cutting force | N | 29400 | 29400 | 29400 | 29400 | |||
Cross travel (X) | mm | 700 | 700 | 700 | 700 | |||
Tool post size | mm | 350x350 | 350x350 | 350x350 | 350x350 | |||
Main motor power | kw | 30 | 30 | 30 | 30 | |||
Machine weight | kg | 13500/16500/18000/20000/22500/25000/28000/- | ||||||
Machine length | mm | 6020/7020/8020/9020/11020/13020/15020/- | ||||||
Machine width/height | mm | 2665/2680 | 2665/2680 | 2665/2680 | 2665/2680 | |||
Machine Details

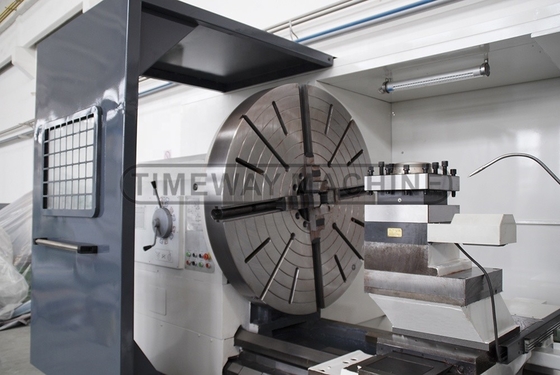

Chuck：
- Standard 4-jaw independent chuck to clamping special-shape parts.
4-stations electric turret:
- Adopt famous brand electric turret, high positioning accuracy.
CNC system:
SIEMENS, FANUC, MITSUBISHI, FAGOR, KND, HNC, GSK, etc. for you choice.

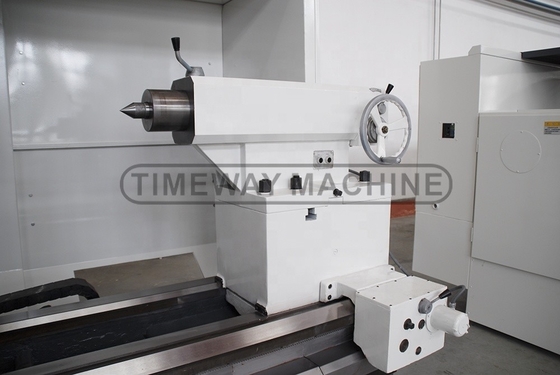

Electric moving tailstock:
Flexible and simple operation, to reduce labor intensity and increase operating pleasure.
CE-norm electric cabinet:
Clear and neat electric layout;
Adopt CE standard electric components.
Automatic lubrication pump:
Automatically and intermittently lubricate each guide rails to extend the service life of the machine.
4-stations vertical turret:
Standard
6-stations vertical turret:
Optional
6-stations horizontal turret:
Optional
Test - roundness & cylindricity:
Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm
Test - verticality:
Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm
Test - roughness:
Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
Threads turning test:
Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
Comprehensive testing parts:
All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
Positive Comments From Customers
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
So far we have received many customers from abroad, and they are all very satisfied with our company and products
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
