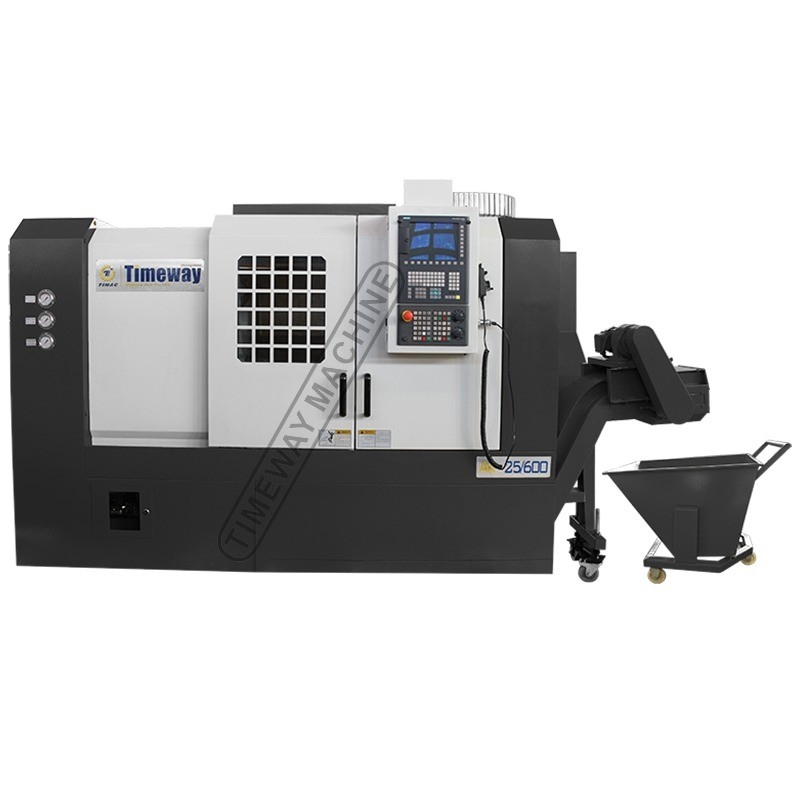

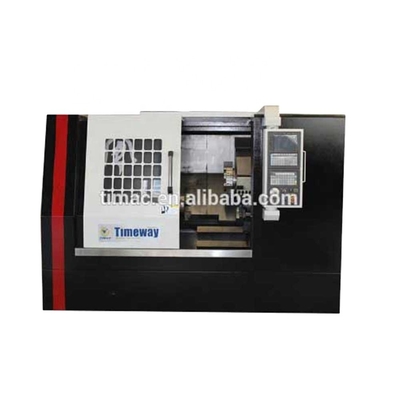

Affordable 500mm Slant Bed CNC Lathe with 210mm X-Axis Travel Economical Choice
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | AKJ-25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $40,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases (fumigated) |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 600 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 500 Mm | Spindle Motor Power(kW): | 15 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 210 Mm | Travel (Z Axis)(mm): | 550 Mm |
| Positioning Accuracy (mm): | ±0.002 | Repeatability (X/Y/Z) (mm): | ±0.003 |
| Dimension(L*W*H): | 2270x1470x1650mm | Voltage: | As Required |
| CNC Control System: | FANUC | Tool Post Stations: | 8 |
| Weight (KG): | 3700 | Warranty: | 1 Year |
| Key Selling Points: | Energy Saving | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Type: | CNC | Swing Over Bed: | 500mm |
| Spindle Speed: | 2500rpm | Max. Turning Dia. Over Carriage: | 270mm |
| Max. Bar Capacity: | 51mm | Max. Turning Length: | 530mm |
| Distance Between Centers: | 600mm | X-axis Travel: | 210mm |
| Z-axis Travle: | 550mm | Warrany: | 1 Year |
| Condition: | New | Applicable Industries: | Restaurant, Home Use, Retail, Garment Shops |
| Showroom Location: | Canada, United States, Italy, Germany, Mexico, Spain, South Africa, Australia | Marketing Type: | Ordinary Product |
| Core Components: | Motor, Engine | Max. Turned Length (mm): | 530 |
| Year: | 2022 | Max. Spindle Speed (r.p.m): | 2500 R.p.m |
| Spindle Bore(mm): | 62 | Port: | Tianjin Port |
Product Description
Full Function CNC Lathe
Features:
1. The economical full function CNC lathe is semi-closed loop CNC machine tools suitable to turn various complicated shaft,
sleeve and disk-like work pieces, such as turning of internal and external cylindrical, conical and other circumgyration
surface as well as various metric, inch, modular and diametric pitch threads;
2. They can also be used for oil grooves and keyways broaching, end-facing, grooving and chamfering, etc;
3. The unique construction developed using FEA techniques to provide maximum stiffness under the heaviest cutting condition;
4. The machining accuracy is about IT5~IT6, and the surface roughness is about Ra0.4um for nonferrous metal cutting and
Ra0.8um for ferrous metal;
5. It is especially suitable for the machining of high precision work-pieces, and also widely used to machining parts in batches
in the fields of automobile, motorcycle, railroad, aero-craft, home-appliance, bearing, hardware, etc.
Parameter:
| Specification | Unit | AKJ-25 | |
| Capacities | Swing over bed | mm | 500 |
|
| Max. turning dia. | mm | 370 |
|
| Max. turning dia. over carriage | mm | 270 |
|
| Max. turning length | mm | 530 |
|
| Distance between centers | mm | 600 |
|
| Max. bar capacity | mm | 51 |
| Travel and feed | X-axis travel | mm | 210 |
|
| X-axis servo motor | kw | 1.2 |
|
| X-axis servo motor torque | Nm | 7 |
|
| Z-axis travle | mm | 550 |
|
| Z-axis servo motor | kw | 1.4 |
|
| Z-axis servo motor torque | Nm | 11 |
|
| Rapid traverse (X- and Z- axis) | m/min | 12/16 |
| Spindle | Spindle speed | rpm | 2500 |
|
| Spindle nose |
| A2-6 |
|

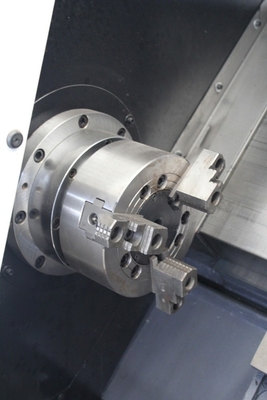

| Size of chuck | inch | 8" |
|
| Spindle bole (dia) | mm | 62 |
|
| Main spindle motor | kw | 15 |
| Turret | Number of stations |
| 8 |
|
| Tool shank size | mm | 25×25 |
|
| Boring bar shank dia. | mm | 40 |
| Tailstock | Max. travel | mm | 380 |
|
| Quill dia. | mm | 85 |
|
| Quill travel | mm | 100 |
|
| Quill taper hole |
| MT-5 |
| Others | Machine weight | kg | 3700 |
|
| Machine height | mm | 1810 |
|
| Floor space (L×W) | mm | 2555×1490 |
*** Standard Accessories:

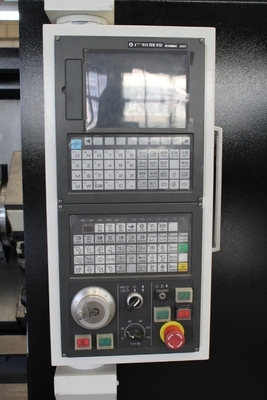

FANUC 0i TD controller; FANUC servo main motor, FANUC servo type feeding motor for both X,Z axes; 8” hydraulic solid chuck; 8 stations hydraulic tool turret; Hydraulic tailstock; Automatical lubricating unit; Cooling system; General tools; Auto. chip conveyor; Operational manual(English edition).
