Powerful CNC Vertical Lathe Machine with 60kw Power Capacity and 800mm Z Axis Travel
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC, TIMEWAY |
| Certification: | CE ISO |
| Model Number: | VLK-1250 VLK-1600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $150,000.00/sets >=1 sets |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Type: | VERTICAL | Max. Length Of Workpiece (mm): | 1650 |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Max. Weight Of Workpiece(kg): | 8000 |
| Width Of Bed (mm): | 1400 Mm | Spindle Motor Power(kW): | 37 |
| No. Of Spindles: | Twin | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 995 Mm | Travel (Z Axis)(mm): | 800 Mm |
| Positioning Accuracy (mm): | ±0.015 | Repeatability (X/Y/Z) (mm): | ±0.008 |
| Dimension(L*W*H): | 4350x4000x4500mm | Voltage: | 380v 50hz |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 16500 | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Cutting Diameter: | 1600mm | Max. Height Of Workpiece: | 1000mm |
| Max. Weight Of Workpiece: | 8000kg | Worktable Diameter: | 1400mm |
| Spindle Speed: | 315rpm | Power Capacity: | 60kw |
| CNC System: | FANUC 0i-mate TD | Max. Swing Diameter: | 1650mm |
| Weight: | 16500kg | Condition: | New |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Food & Beverage Shops | Showroom Location: | United States, France, Germany, Brazil, Russia, South Korea, UAE, South Africa, Australia |
| Marketing Type: | Ordinary Product | Core Components: | Bearing, Motor, Pump, Gear |
| Year: | Latest Day | Max. Spindle Speed (r.p.m): | 315 R.p.m |
| Spindle Bore(mm): | 1600 | Max. Turned Length (mm): | 1650 |
Product Description
Product Description

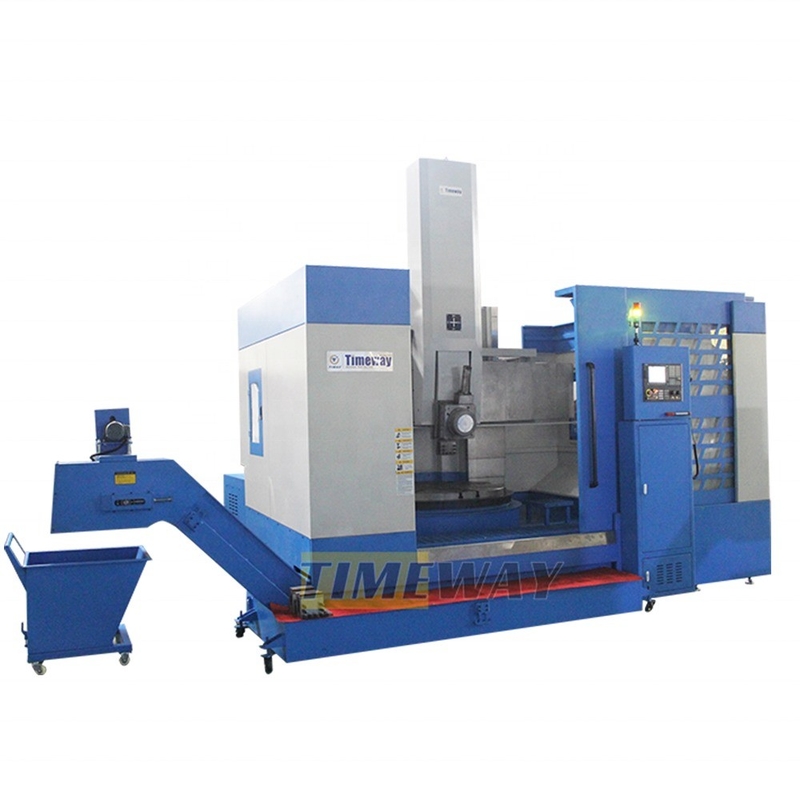

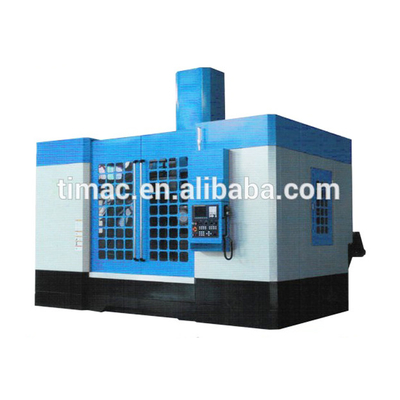

CNC vertical lathe
Feature
Main castings are made of high quality cast iron, the stress aging treatment, ensure deformation during a long-term use. X/Z-axis are equipped with big box-way guideway, greatly increase stability of machine tool. All structure parts with rib-type structure reinforcement, improve the overall rigidity. The guideways of all axis and column are ground process after quenching, quenching hardness can reach 45 to 55HRC. Slide guideway paste high-performance and wear-resisting soft belt, abrasion resistance loss.
Specification
Specification | Unit | VLK-1250 | VLK-1600 |
Max. swing diameter | mm | Φ1300 | Φ1650 |
Max. cutting diameter | mm | Φ1250 | Φ1600 |
Max. cutting height | mm | 1000 | 1000 |
Max. weight of workpiece | kg | 5000 | 8000 |
Spindle speed | rpm | 500 | 315 |
Worktable size | mm | Φ1100 | Φ1400 |
Maim motor power | kw | 25/30 | 30/37 |
X-axis travel | mm | -20~785 | -20~995 |
Z-axis travel | mm | 650 | 800 |
Beam travel | mm | 650 | 650 |
Number of tools | - | 4 | 4 |
Size of tool shank | mm | 16/32/40 | 16/32/40 |
CNC system | - | FANUC 0i-mate TD | FANUC 0i-mate TD |
Total power | kw | 45 | 60 |
Floor area | mm | 4000x3100 | 4350x4000 |
Machine height | mm | 4100 | 4500 |
Machine weight | kg | 12000 | 16.5 |
Standard Configuration
* Standard Configuration
* Full-enclosed protection guard
* Electrical cabinet with air-condition
* Oil cooler
* Chip conveyor and scrap iron car
* Four-station electric tool turret
* Leveling blocks
* Three-color caution light
* Automatic lubrication system
* Working light
* Hydraulic system
* Coolant system
* Full-enclosed protection guard
* Electrical cabinet with air-condition
* Oil cooler
* Chip conveyor and scrap iron car
* Four-station electric tool turret
* Leveling blocks
* Three-color caution light
* Automatic lubrication system
* Working light
* Hydraulic system
* Coolant system
Detailed Images

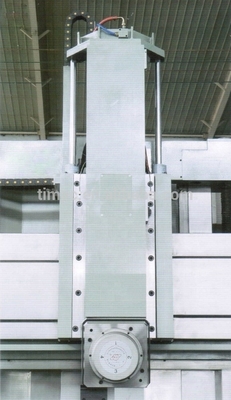

Vertical Tool-Post
* Adopting the structure of double balance cylinder and motor on the middle location, ensure lifting stability of ram, guarantee efficiently machining accuracy of workpiece. X/Z-axis adopt the obsessive lubrication, lubrication system can lubricate on time after starting machine.

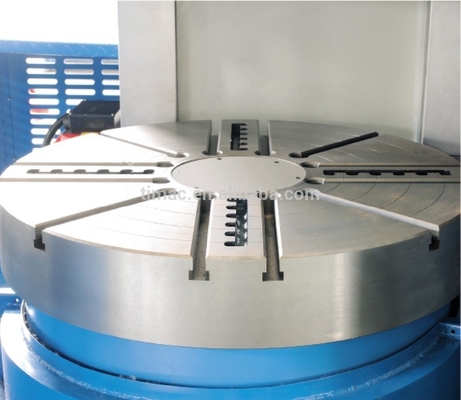

Worktable Drive
* Using two-speed motor with low and high speed, through transmitte straight narrow V-belt drive job rotation, to make worktable gaining high speed.
Lifting Screw
* Using double hoisting structure,AC motor drive screw through gear-box on both side of the column, comparing with lifting mechanism of old-type CNC vertical lathe, horizontal accuracy of cross-beam is more stability.

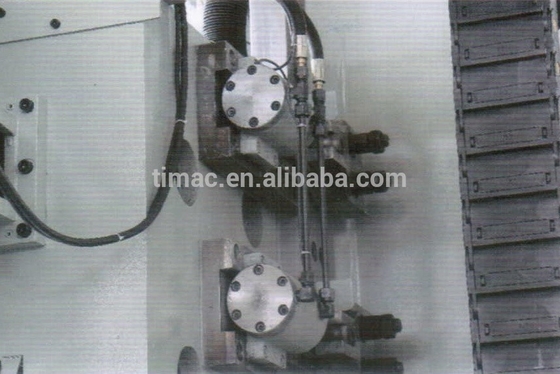

Positioning Clamping
* The machine has four clamping point on the back of beam; Clamping mechanism and beam lifting motor interlock; Four clamping points distributed evenly and clamping force equilibrium, to ensure beam clamping tightly fixed on the column when beam stop lifting.
Feed Unit
* Tool-post horizontal feed(X-axis) and ram vertical feed(Z-axis) are driven by AC servo motor through the gear reducer driving ball screw, the reducer and screw through the flexible coupling connection, high transmission efficiency, small transmission error, high transmission precision.
Four Station Electrical Tool-Post
* High Positioning accuracy, large clamping force, large loading capacity, stable and reliable.
* The unique dovetail cutter holder, more accurate positioning, greater clamping force.
* The unique dovetail cutter holder, more accurate positioning, greater clamping force.
