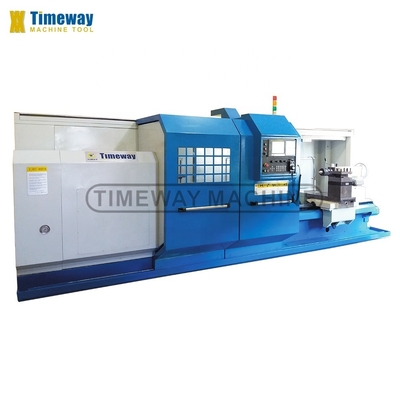

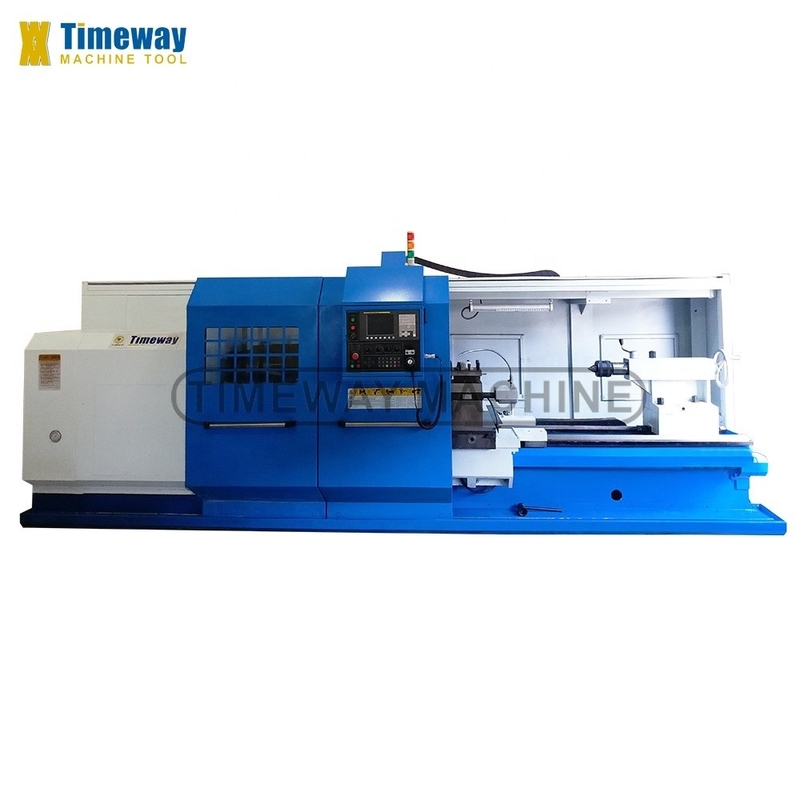

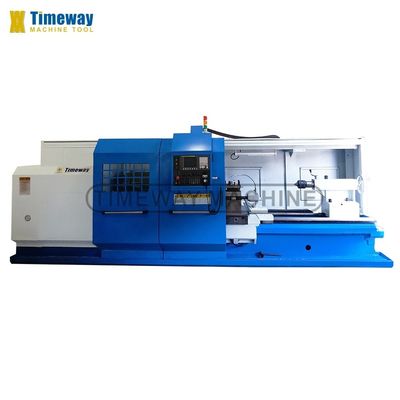

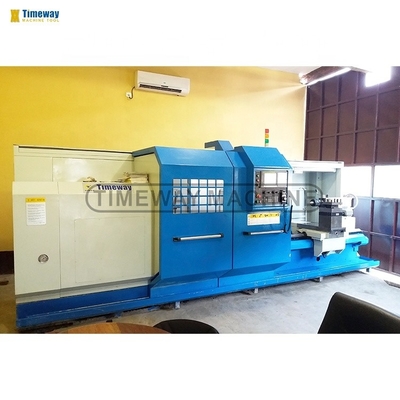

Big Swing Flat Bed Lathe CNC Turning Tornos with Max. Length of Workpiece 1500mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC, TIMEWAY |
| Model Number: | AK-1000, AK-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $38,999.00/sets 1-1 sets |
| Packaging Details: | wooden case or plywood case, pallet |
| Supply Ability: | 800 Set/Sets per Year |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 1500 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 3000 | Width Of Bed (mm): | 600 Mm |
| Spindle Motor Power(kW): | 15 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 420 Mm |
| Travel (Z Axis)(mm): | 1500 Mm | Positioning Accuracy (mm): | ±0.001 |
| Repeatability (X/Y/Z) (mm): | ±0.008 | Dimension(L*W*H): | 4105x2219x2010mm |
| Voltage: | 200V - 460V | CNC Control System: | SIEMENS 808D |
| Tool Post Stations: | 4 | Weight (KG): | 5300 |
| Warranty: | 1 Year | Key Selling Points: | Long Service Life |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Color: | Customized Option |
| Spindle Taper: | Metric 120 (Metric 150 Optional) | Machine Type: | CNC Heavy Duty Horizontal Lathe |
| Spindle Speed (manual 4steps): | 8-800 (stepless In Steps) | Spindle Speed (auto 4steps): | 8-800 (stepless In Steps) |
| Spindle Speed (manual): | 6-750 (18 Steps) | X-axis Rapid Feed Speed: | 4000mm/min |
| Z-axis Rapid Feed Speed: | 5000mm/min | Working Accuracy: | IT6 |
| Smoothness: | Ra1.6um | Condition: | New |
| Toolpost Brand: | Yaxing | Applicable Industries: | Manufacturing Plant, Construction Works |
| Showroom Location: | Canada, United Kingdom, United States, Italy, France, Germany, Brazil, Peru, Pakistan, Mexico, Russia, Spain, Chile, UAE, Algeria, Uzbekistan, Australia | Max. Spindle Speed (r.p.m): | 800 R.p.m |
| Spindle Bore(mm): | 100 (140 Optional) | Max. Turned Length (mm): | 1350 |
| Marketing Type: | Hot Product 2021 | Core Components: | Bearing, Motor, Pump, Gear, Pressure Vessel, Gearbox, CNC System |
Product Description
Products Description
√ FANUC/GSK/SIEMENS CNC system √ 3-jaw chuck √ 4-station electric tool-post √ Work lamp √ Cooling system √ Semi-closed guard √ Manual pulse generator (MPG) √ Dead centers √ Oil gun √ Pilot lamp √ Automatic lubrication pump √ Manual moving tailstock √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | _ 4-jaw chuck _ Steady rest _ Follow rest _ Hydraulic chuck _ Penumatic chuck _ Hydraulic tailstock _ 6-station tool-post _ Live centers _ Air conditioner _ Chip conveyor _ Full guard |
Specification | Unit | AK-800 | AK-1000 | |
Max. swing over bed | mm | 800 | 1000 | |
Max.. swing over cross slide | mm | 480 | 680 | |
Distance between centers | mm | 1000/1500/2000/3000/4000/5000/6000/8000/- | ||
Max. turning length | mm | 850/1350/1850/2850/3850/4850/5850/7850/- | ||
Bed width | mm | 600 | 600 | |
Loading capacity | kg | 3000 | 3000 | |
Spindle nose | mm | C11 (C15 optional) | C11 (C15 optional) | |
Spindle bore | mm | 100 (140 optional) | 100 (140 optional) | |
Spindle taper | - | Metric 120 (Metric 150 optional) | Metric 120 (Metric 150 optional) | |
Spindle speed (Manual steps) | rpm | 6-750 (18) | 6-750 (18) | |
Spindle speed (Manual 4steps stepless) | rpm | 8-800 | 8-800 | |
Spindle speed (Hydraulic 4steps, stepless) | rpm | 8-800 | 8-800 | |
Center height | mm | 400 | 500 | |
Chuck size | mm | 400 | 400 | |
X/Z-axis min. feed unit | mm | 0.001/0.001 | 0.001/0.001 | |
X/Z-axis rapid feed speed | mm/min | 4000/5000 | 4000/5000 | |
Cross travel (X) | mm | 420 | 420 | |
Tool post type | - | V4 (V6/H6/H8 optional) | V4 (V6/H6/H8 optional) | |
Tool change time | s | 2.4 | 2.4 | |
Turret repeat positioning accuracy | mm | 0.008 | 0.008 | |
Tool section size | mm | 40x40 | 40x40 | |
Tailstock quill diameter | mm | 100 | 100 | |
Tailstock quill travel | mm | 250 | 250 | |
Tailstock quill taper | - | MT6 (MT5 optional) | MT6 (MT5 optional) | |
CNC system | - | FANUC/GSK/SIEMENS | FANUC/GSK/SIEMENS | |
Working accuracy | - | IT6 | IT6 | |
Surface roughness | µm | Ra1.6 | Ra1.6 | |
Main motor power | kw | 15 | 15 | |
Machine weight | kg | 4800/5300/5600/6000/6800/7600/8250/9750/- | ||
Machine length | mm | 3605/4105/4645/5600/6430/7600/8485/10485/- | ||
Machine width | mm | 2219 | 2219 | |
Machine height | mm | 1830 | 2010 | |
1. This series CNC lathe adopts standard cast iron (HT300) a molding casting, after the second aging treatment, it has feature of stable performance; guide-way width (600 mm), good rigidity, anti-vibration ability; Processed by medium-frequency hardening (hardness more than SHAW 68) and machined by the imported guideway grinding machine, to ensure a long service life, high precision and good maintainability.
2. The bed (from 1000 mm-5000 mm) is one-piece type, 6000 mm and above bed is two pieces butted.
3. This series machine spindle bore has two kinds, one is Φ100 mm, the other is Φ140 mm . Spindle bearing uses China's well-known bearing made by HRB, LYC and ZWZ, aslo can be configured NSK, SKF and other imported bearings. Bore diameter of Φ140 mm to meet the larger bar or tube parts processing.
4. Automatic hydraulic 4 shifts exchange controlled by M-code, automatically stepless speed change controlled by the S-code selection; Manual 4 steps changing speed controlled by hand, automatically stepless speed change controlled by the S-code selection; Manual 18 steps changing speed controlled by hand.
5. The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The front end of the main shaft adopts a three-support structure of a two-way angular contact ball bearing. Improve accuracy and increase rigidity. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise.
6. The main motor is 15 kw high-power frequency motor; equipped with Ф400 standard manual three-jaw self-centering chuck, according to endusers requirement different size manual, pneumatic and hydraulic three-jaw and four- jaw chuck can be chosen.
7. All the lathe machines are equipped with electric turret, free lifting, tool change quickly and easily, there are vertical 4 and 6 station, horizontal 6 station and other electric turret for choice.
8. Before delivery all lathe machines will be tested by British RENISHAW laser detector for dynamic accuracy detection and compensation, so the lathe machine has a high positioning accuracy and repeat positioning accuracy.
9. CNC system uses the internationally renowned FANUC, SIEMENS or China GSK AC servo control system. The lathe machine adopts semi-closed protection or fully enclosed protection, equipped with emergency stop safety button, when the machine suddenly encountered a sudden power failure or other failures, due to the special design of the control circuit, it can be self-protection to ensure that the machine and personnel safety. The operation panel is about 1500 mm from the ground, highly moderate, ergonomic, pleasant and easy to operate and understand the operation of the machine.
10.This series of lathe machine is used widely, flexible operation, suitable for processing all kinds of complex shapes of shafts, sets, disk parts, such as turning inner and outer cylindrical surface, conical surface, circular surface, end face, grooving, chamber, threading, Especially for multi-species, small batch of turns processing, process adaptability, high processing efficiency, low scrap rate, good product consistency, easy programming, simple operation, reducing the technical requirements of workers, it is the ideal medium mechanical processing.
Chuck：
- 3-jaw chuck comes standard to quickly self-centering clamping parts
- Optional 4-jaw independent chuck and hydraulic chuck

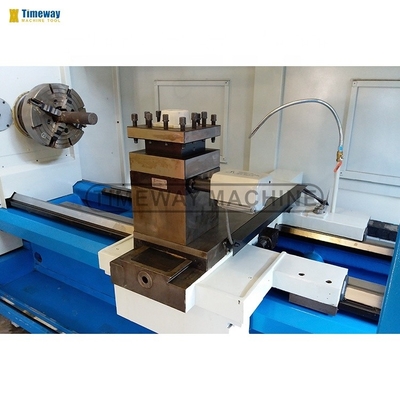

4-stations electric turret:
- Adopt famous brand electric turret, high positioning accuracy.
- Optional quick changing tool post
CNC system:
SIEMENS, FANUC, MITSUBISHI, FAGOR, KND, HNC, GSK, etc. for you choice.

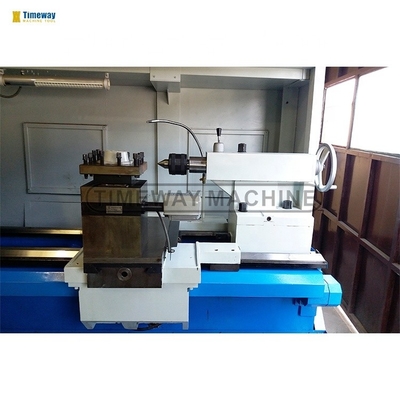

Manual moving tailstock:
Flexible and simple operation, to reduce labor intensity and increase operating pleasure.
CE-norm electric cabinet:
Clear and neat electric layout;
Adopt CE standard electric components.

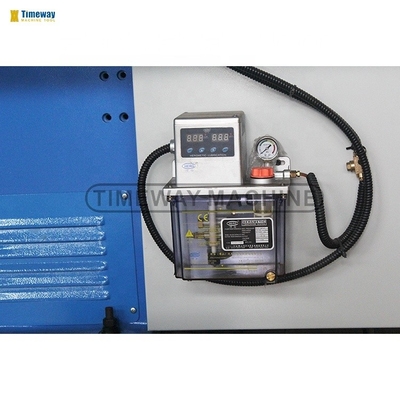

Automatic lubrication pump:
Automatically and intermittently lubricate each guide rails to extend the service life of the machine.
4-stations vertical turret:
Standard
6-stations vertical turret:
Optional
6-stations horizontal turret:
Optional
Test - roundness & cylindricity:
Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm
Test - verticality:
Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm
Test - roughness:
Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
Threads turning test:
Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
Comprehensive testing parts:
All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
Renishaw laser interferometer：
Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
