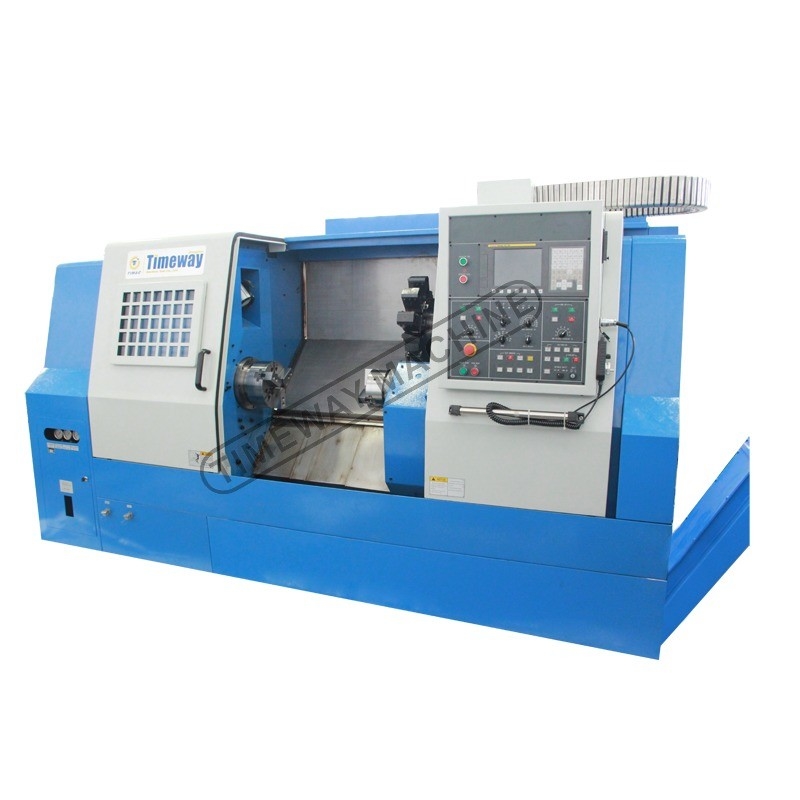

AK-25DS Double Spindle CNC Lathe Machine The Perfect Choice for Heavy Duty Machining
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC, TIMEWAY |
| Model Number: | AK-25DS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $99,999.00/sets 1-2 sets |
| Packaging Details: | wooden case / plywood case |
| Supply Ability: | 50 Set/Sets per Year |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 620 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 1000 Mm | Spindle Motor Power(kW): | 15 |
| No. Of Spindles: | Twin | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 250 Mm | Travel (Z Axis)(mm): | 650 Mm |
| Positioning Accuracy (mm): | ±0.003 | Repeatability (X/Y/Z) (mm): | ±0.003 |
| Dimension(L*W*H): | 4800x2200x2300mm | Voltage: | 220V/380V/400V |
| CNC Control System: | FANUC | Tool Post Stations: | 12 |
| Weight (KG): | 5500 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Automatic Grade: | Automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| High Precision CNC Lathe: | Double Spindle CNC Lathe | Max. Swing Diameter: | 600mm |
| Power: | 18.5/15KW | Weight: | 6500kg |
| Warrany: | 1year | Max.length Of Workable: | 620mm |
| Machine Type: | Slant Bed Cnc Lathe Machine | X Travel: | 250mm |
| Condition: | New | Applicable Industries: | Building Material Shops, Manufacturing Plant, Other |
| Showroom Location: | Viet Nam, Brazil, Peru, Russia, Thailand | Marketing Type: | Ordinary Product |
| Core Components: | Bearing, Motor, Gear, Gearbox | Max. Turned Length (mm): | 500 |
| Year: | 2022 | Max. Spindle Speed (r.p.m): | 4500 R.p.m |
| Spindle Bore(mm): | 87 | Port: | China Seport |
Product Description
Product Description

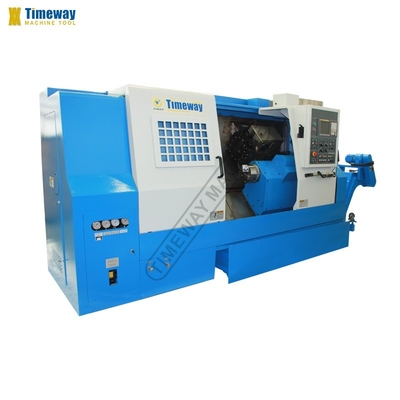

Double Spindle CNC Lathe AK-25DS
| Specification | AK-25DS | |
| Capacity | Swing over bed | Φ600mm |
| Swing over saddle | Φ420mm | |
| Distance between the end face of two chuck | 620mm | |
| Max. turning diameter | Φ420mm | |
| Max. turning length | 500mm | |
| Travel and feed | Sub-spindle travel | 550mm |
| X travel | 250mm | |
| Z travel | 650mm | |
| X travel speed | 18000mm/min | |
| Z travel speed | 20000mm/min | |
| Hand wheel | 0.001mm/0.01mm/0.1mm | |
| X, Z feeding speed | 1260mm/min | |

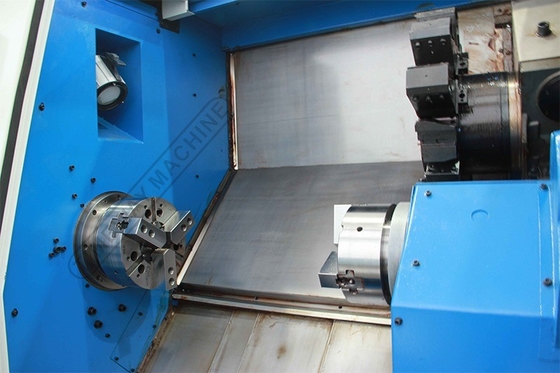

| Spindle | Spindle speed | 35-3500rpm, 45-4500rpm |
| Spindle nose | A2-8(main spindle), A2-6(sub-spindle) | |
| Size of chuck | 10”(main spindle), 8”(sub-spindle) | |
| Spindle hole | 87mm(main spindle), 62mm(sub-spindle) | |
| Front bearing diameter | Φ130mm(main spindle), Φ110mm(sub-spindle) | |

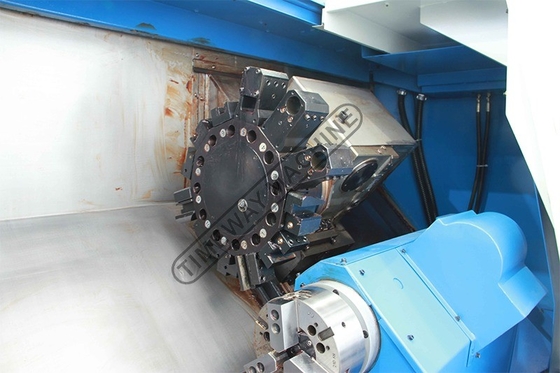

| Turret | Number | 12 |
| Tool shrank size | 25x25mm | |
| Drilling diameter | 40mm | |
| Tool changing | 1.0sec | |
| Motor | Spindle motor | AC18.5/15KW |
| X axis feed motor | AC1.6KW | |
| Z axis feed motor | AC3.0KW | |
| Sub-spindle feed motor | AC3.0KW | |
| Sub-spindle motor | AC11/9KW | |
| Consumed power | 40KVA | |
| Others | Coolant fluid volume | 200L |
| Motor | 0.18KW(1HP) | |
| Machine weight | 5500kg | |
| Machine height | 1950mm | |
| Floor space(LxW) | 3370x1700mm | |
| Positioning accuracy | Z-axis | R: 0.006mm, B: 0.008mm, A: 0.010mm |
| X-axis | R: 0.006mm, B: 0.004mm, A: 0.010mm | |
| R: repeat positioning accuracy; B: reverse warp; A: positioning accuracy. | ||
