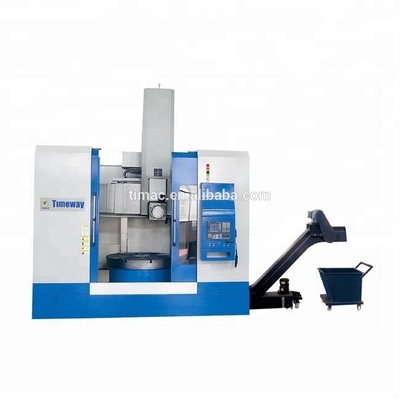

Max. Swing Diameter 1250mm Single Column CNC Vertical Lathe Machine VLK1250E
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | VLK1250E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $110,000.00/sets 1-2 sets |
| Packaging Details: | Pallet |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Type: | VERTICAL | Max. Length Of Workpiece (mm): | 1000 |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Max. Weight Of Workpiece(kg): | 5000 |
| Width Of Bed (mm): | 1010 Mm | Spindle Motor Power(kW): | 30 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 820 Mm | Travel (Z Axis)(mm): | 650 Mm |
| Positioning Accuracy (mm): | ±0.02 | Repeatability (X/Y/Z) (mm): | ±0.01 |
| Dimension(L*W*H): | 4780x2570x4400 Mm | Voltage: | 380V/400V/440V |
| CNC Control System: | SIEMENS | Tool Post Stations: | 4 |
| Weight (KG): | 11000 | Warranty: | 1 Year |
| Key Selling Points: | Flexible Manufacturing | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Max. Cutting Diameter: | 1250mm |
| Max. Height Of Workpiece: | 1000mm | Max. Weight Of Workpiece: | 5000kg |
| Worktable Diameter: | 1010mm | Spindle Speed: | 1.25-200rpm |
| Power Capacity: | 30Kva | CNC System: | SIEMENS 808D |
| Max. Swing Diameter (mm): | 1250 | Warranty Period: | 1year |
| Condition: | New | Applicable Industries: | Building Material Shops, Machinery Repair Shops |
| Showroom Location: | United States, Italy, Germany, Mexico, Russia, Romania, South Africa, Australia | Marketing Type: | Ordinary Product |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Gearbox | Max. Turned Length (mm): | 1000 |
| Max. Spindle Speed (r.p.m): | 200 R.p.m | Spindle Bore(mm): | 251 |
| Port: | China Port | ||
Product Description

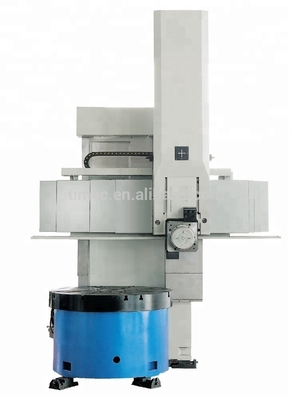

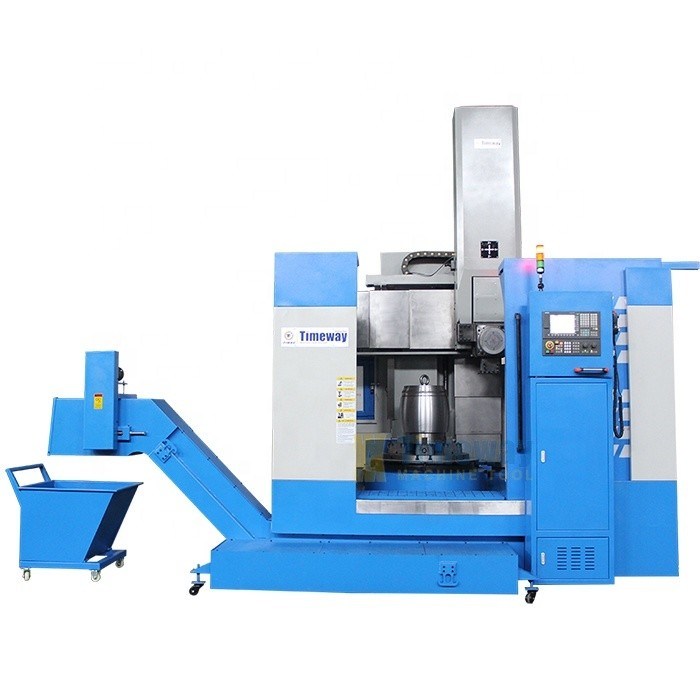

Single Column CNC Vertical Lathe
VLK800E VLK1250E VLK1600E VLK2000E
Machine Summary
- The machine tool is suitable for processing large and thin and heavy irregular workpiece; No the workpiece roundness error due to inertia weight, ensure that the roundness precision of the workpiece. Due to the weight of workpiece, so workpiece and fixture can ensure that closed, short workpiece loading and unloading time and stability.
- The column,beam, and ram guideway adopt grinding after quenching, have super wear resistance and prolong the service life; Unique whole enclosed shield prevent scraps and coolant splash, achieve environmental protection purposes.
Structure and Feature
Column

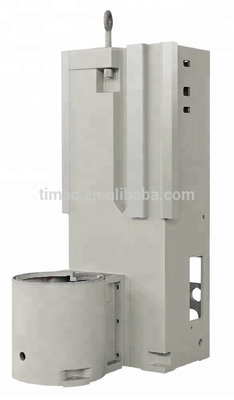

| Column *The column adopts the optimization design of box-type structure and reasonable layout stiffener, so as to realize the good thermal stability, high strength and high rigidity.
Column guideway width(mm) VLK800E 1070 VLK1250E 1190 VLK1600E 1460 VLK2000E 1970 |

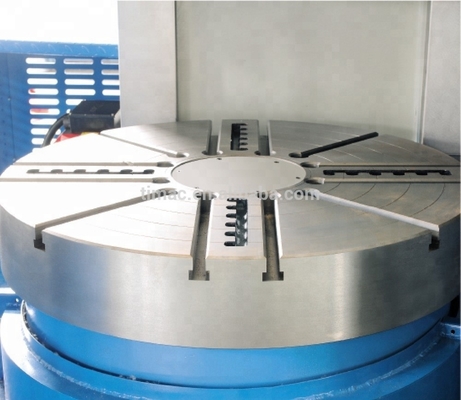

Worktable
Spindle Unit and Beam
Feed Unit
Tool-post horizontal feed(X-axis) and ram vertical feed(Z-axis) are driven by AC servo motor through the gear reducer driving ball screw, the reducer and screw through the flexible coupling connection, high transmission efficiency, small transmission error, high transmission precision.
Main Drive System
| Spindle Speed Range(rpm)
| *Main transmission adopts gear drive, gears adopt high strength material and quenching and grinding process, so it can realize high speed cutting force, high transmission accuracy and rate, and reduce the vibration and noise of the transmission. *Main transmission is controlled by horizontal spindle servo motor, can realize four shifts stepless speed, it is suitable for processing all material workpiece, to realize spindle wide speed changing and large torque heavy cutting, meet low-speed and heavy cutting for big diameter workpiece, and high-speed cutting for smaller diameter workpiece. *Large gear adopt high grade alloy steel, through quenching treatment and being grinded by high precision gear grinding machine, to reduce noise of spindle running. |
Four Station Electrical Tool-Post
1. High Positioning accuracy, large clamping force, large loading capacity, stable and reliable.
2. The unique dovetail cutter holder, more accurate positioning, greater clamping force.
Electrical Cabinet
1. Electrical cabinet placed directly within the column, so the structure is more compact, save space. Beautiful appearance, wire marking clear and complete, wiring and tidy; The connection of the electrical cabinet to bed adopt the special cable connection.
2. Electrical cabinet is equipped with air condition, safety and standard, to ensure controller constant temperature, the stability of the controller.
Others
Technical Parameter
| Specification | Unit | VLK800E | VLK1250E | VLK1600E | VLK2000E | |
| Capacity | Max. turning diameter | mm | 950 | 1250 | 1600 | 2000 |
| Max. cutting diameter | mm | 800 | 1250 | 1600 | 2000 | |
| Max. height of workpiece | mm | 800 | 1000 | 1000 | 1250 | |
| Max. weight of workpiece | kg | 2000 | 5000 | 8000 | 12000 | |
| Worktable | Main motor power | kw | 22 | 22 | 30 | 37 |
| Worktable diameter | mm | 800 | 1010 | 1400 | 1800 | |
| Max. torque of worktable | KN.m | 10 | 17.5 | 25 | 32 | |
| Worktable speed range | rpm | 2-320 | 1.25-200 | 1-160 | 4-125 | |
| Tool | Number of tool station | pcs. | 4 | 4 | 4 | 4 |
| Tool shank section of external turning tool | mm | 32*40 | 32*40 | 32*40 | 32*40 | |
| Dirve type |
| Electric | Electric | Electric | Electric | |
| X/Z-axis | X-axis ball screw size (dia.*screw pitch) | mm | 50*10 | 50*10 | 50*10 | 50*10 |
| Z-axis ball screw size (dia.*screw pitch) | mm | 50*10 | 50*10 | 50*10 | 50*10 | |
| Max. travel(X/Z) | mm | -20-550/650 | -20-800/650 | -20-1030/800 | -20-1150/800 | |
| Feed range(X/Z) | mm | 0.1-500 | 0.1-500 | 0.1-500 | 0.1-500 | |
| Rapid feed speed | mm/min | 2000 | 2000 | 2000 | 2000 | |
| Others | CNC system |
| SIEMENS 808D | SIEMENS 808D | SIEMENS 808D | SIEMENS 808D |
| Servo motor torque(X/Z) | N.m | 10 | 10 | 10 | 10 | |
| Power capacity | Kva | 30 | 37 | 45 | 52 | |
| Machine net weight | kg | 8500 | 11000 | 14500 | 18500 | |
| Machine dimension (L*W*H) | mm | 4300*2380*4290 | 4780*2570*4400 | 5630*3010*4660 | 5800*3685*4940 | |
Standard Configuration
- Automatic lubrication system
- Full eclosed shield
- Electrical cabinet with air condition
- Precise oil cooler
- SIEMENS 808D
- Automatic chip removal(side removal)
Optional Configuration
- SIEMENS 828D CNC system
- FANUC 0i-mate TD CNC system
- Special fixture
Spindle Power/Torque
Machine Dimension
| Model | Length(L) | Width(B) | Height(H) |
| VLK800E | 4300 | 2380 | 4290 |
| VLK1250E | 4780 | 2570 | 4400 |
| VLK1600E | 5630 | 3010 | 4660 |
| VLK2000E | 5800 | 3685 | 4940 |
