80-tons Capacity Large-type CNC Horizontal Heavy Duty Lathe Machine for Big Diameter Rolls
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | AK-2500H/2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $500,000.00/sets >=1 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 5 Set/Sets per Year |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 20000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 80000 | Width Of Bed (mm): | 2050 Mm |
| Spindle Motor Power(kW): | 125 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 1300 Mm |
| Travel (Z Axis)(mm): | 20000 Mm | Positioning Accuracy (mm): | 0.02 |
| Repeatability (X/Y/Z) (mm): | 0.01 | Dimension(L*W*H): | As Actual |
| Voltage: | 380v 50hz | CNC Control System: | FANUC |
| Tool Post Stations: | Special Tool Holder | Weight (KG): | 120000 |
| Warranty: | 1 Year | Key Selling Points: | High Rigidity |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| Max. Workpiece Length: | 20000mm | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Machine Type: | CNC Heavy Duty Lathe | Color: | Customized Option |
| Max. Swing Over Tool-post: | 2000mm | Bed Guideway Type: | Four Slide Guideways |
| Chuck Size: | 2000mm | CNC System: | FAUNC Or SIEMENS |
| Max. Swing Diameter (mm): | 2500 | Condition: | New |
| Toolpost Brand: | Other | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Printing Shops, Energy & Mining |
| Showroom Location: | Canada, United Kingdom, United States, Italy, France, Germany, Brazil, Mexico, Russia, Algeria, Uzbekistan, Australia | Year: | Latest Day |
| Max. Spindle Speed (r.p.m): | 100 R.p.m | Spindle Bore(mm): | Other |
| Max. Turned Length (mm): | 20000 | Marketing Type: | Special Use Machine Tool |
| Core Components: | Bearing, Motor, Pump, Gear, Pressure Vessel, Gearbox, CNC System | Port: | China Port. |
Product Description
Product Description

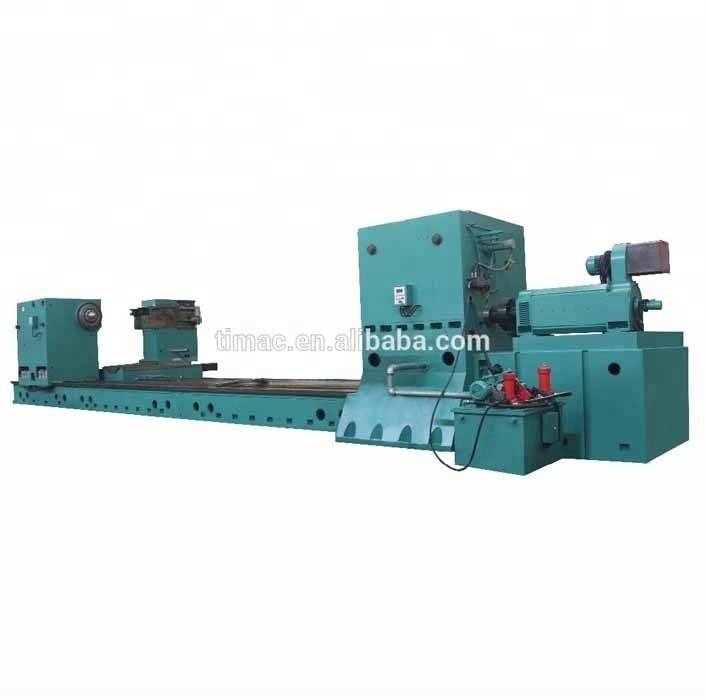

CNC Horizontal Heavy Duty Lathe
This series of machines is CNC heavy-duty horizontal lathe suitable for rough machining and finish machining of ferrous and non-ferrous metal workpiece with carbide, ceramic and other tools in facing, external cylindrical turning, taper cutting and curved shape.
Various types of steady rests, roll chock stand, grinding attachment and milling attachment are available as option according to customer's choice.
Feature：
1.Machine bed has three guideways or four guideways on one-piece casting, and induction hardened to guarantee high accuracy, big load capacity and long life, Carriage guideways are fully protected with metal plate splash guards.
2.Main spindle is supported by imported high precision, radial backlash adjustable double row cylindrical roller bearings in optimal distance considering supporting distance and chuck diameter to get the best accuracy and stiffness.
Specification
Specifications | Units | AK-1800H/2 | AK-2000H/2 | AK-2200H/2 | AK-2500H/2 |
Max. swing over bed | mm | 1800 | 2000 | 2200 | 2500 |
Max. swing over tool post | mm | 1400 | 1600 | 1800 | 2000 |
Max. length or workpiece | m | 5-20 | 5-20 | 5-20 | 5-20 |
Max. weight of workpiece between centers | t | 40/63/80 | 40/63/80 | 40/63/80 | 40/63/80 |
Max. torque of face plate | kN.m | 90/100 | 90/100 | 90/100 | 90/100 |
Width of bed | mm | 2050(Four guide) | 2050(Four guide) | 2050(Four guide) | 2050(Four guide) |
Total cutting capacity | kg | 8000/9000 | 8000/9000 | 8000/9000 | 9000/12500/16000 |
Diameter of tailstock sleeve | mm | 400/500/560 | 400/500/560 | 400/500/560 | 400/500/560 |

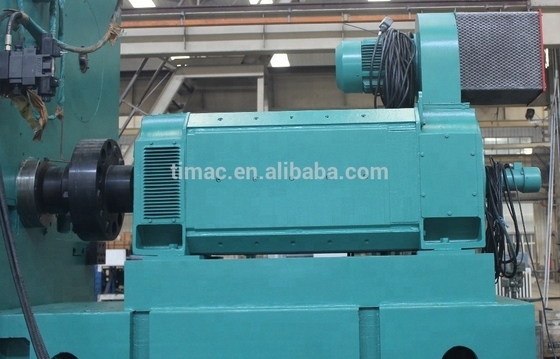

Power of main motor | kw | DC 90/110/125 | DC 90/110/125 | DC 90/110/125 | DC 90/110/125 |
