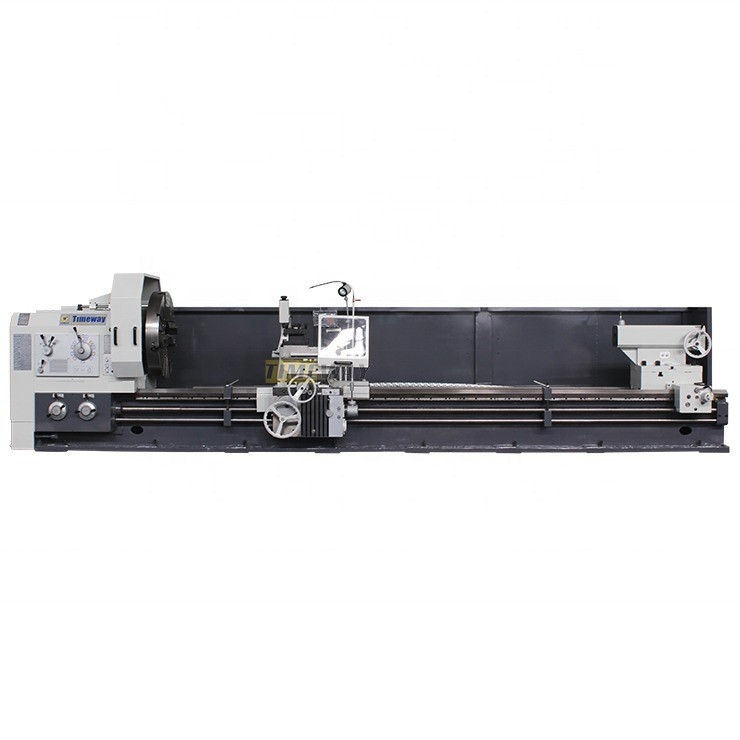

550mm Bed Width Economic CNC Horizontal Lathe for Precise Machining and Fast Speed
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | AK-630Bx8M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $29,000.00/sets 1-2 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 8000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 2000 | Width Of Bed (mm): | 550 Mm |
| Spindle Motor Power(kW): | 11 | No. Of Spindles: | 1 |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 390 Mm |
| Travel (Z Axis)(mm): | 7850 Mm | Positioning Accuracy (mm): | ±0.01 |
| Repeatability (X/Y/Z) (mm): | ±0.006 | Dimension(L*W*H): | 10580x1800x1880 |
| Voltage: | 200V-460V | CNC Control System: | FANUC |
| Tool Post Stations: | 4 | Weight (KG): | 10200 |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Controller: | FANUC 0i-TF System |
| Spindle Nose: | C11 | Spindle Taper: | Metric 120 |
| Spindle Speed: | 7.5-1000 Rpm | Spindle Steps: | As Machine Model |
| Min. Feed Unit: | 0.001mm | Working Accuracy: | IT6 |
| Working Roughness: | Ra1.6um | Turret Type: | 6/8/10-station For Choice |
| After-sales Service Provided: | Online Support | Condition: | New |
| Spindle Bore(mm): | 100 | Toolpost Brand: | Yaxin |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Printing Shops, Energy & Mining | Showroom Location: | Canada, United Kingdom, United States, Italy, France, Germany, Philippines, Brazil, Mexico, Russia, Spain, Chile, Algeria, South Africa, Australia |
| Marketing Type: | Ordinary Product | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, CNC System |
| Max. Turned Length (mm): | 7850 | Year: | 2021 |
| Max. Spindle Speed (r.p.m): | 1000 R.p.m | Port: | China Ports |
Product Description
Products Description
√ FANUC/GSK/SIEMENS CNC system √ 3-jaw chuck √ 4-station electric tool-post √ Work lamp √ Cooling system √ Semi-closed guard √ Manual pulse generator (MPG) √ Dead centers √ Oil gun √ Pilot lamp √ Automatic lubrication pump √ Manual moving tailstock √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | _ 4-jaw chuck _ Steady rest _ Follow rest _ Hydraulic chuck _ Penumatic chuck _ Hydraulic tailstock _ 6-station tool-post _ Live centers _ Air conditioner _ Chip conveyor _ Full guard |
Specification | Unit | AK-630B | AK-800B | AK-940B | ||
Max. swing over bed | mm | 630 | 800 | 940 | ||
Max.. swing over cross slide | mm | 340 | 510 | 650 | ||
Distance between centers | mm | 750/1000/1500/2000/3000/4000/5000/6000/8000/- | ||||
Max. turning length | mm | 600/850/1350/1850/2850/3850/4850/5850/7850/- | ||||
Bed width | mm | 550 | 550 | 550 | ||
Loading capacity | kg | 2000 | 2000 | 2000 | ||
Spindle nose | mm | C11 | C11 | C11 | ||
Spindle bore | mm | 100 | 100 | 100 | ||
Spindle taper | - | Metric 120 | Metric 120 | Metric 120 | ||
Spindle speed (Manual steps) | rpm | 7.5-1000 (18) | 6-800 (12) | 6-800 (12) | ||
Spindle speed (Manual 4steps stepless) | rpm | 7.5-1000 | 6-800 | 6-800 | ||
Spindle speed (Hydraulic 4steps, stepless) | rpm | 7.5-1000 | 6-800 | 6-800 | ||
Center height | mm | 315 | 400 | 470 | ||
Chuck size | mm | 325 | 325 | 325 | ||
X/Z-axis min. feed unit | mm | 0.001/0.001 | 0.001/0.001 | 0.001/0.001 | ||
X/Z-axis rapid feed speed | mm/min | 3000/6000 | 3000/6000 | 3000/6000 | ||
Cross travel (X) | mm | 390 | 475 | 475 | ||
Tool post type | - | V4 (V6/H6/H10 optional) | V4 (V6/H6/H10 optional) | V4 (V6/H6/H10 optional) | ||
Tool change time | s | 2.4 | 2.4 | 2.4 | ||
Turret repeat positioning accuracy | mm | 0.008 | 0.008 | 0.008 | ||
Tool section size | mm | 32x32 | 32x32 | 32x32 | ||
Tailstock quill diameter | mm | 100 | 100 | 100 | ||
Tailstock quill travel | mm | 250 | 250 | 250 | ||
Tailstock quill taper | - | MT5 | MT5 | MT5 | ||
Working accuracy | - | IT6-IT7 | IT6-IT7 | IT6-IT7 | ||
Surface roughness | µm | Ra1.6 | Ra1.6 | Ra1.6 | ||
Main motor power | kw | 11 | 11 | 11 | ||
Machine weight | kg | 3500/3700/4000/4500/5000/6100/7100/8000/10200/- | ||||
Machine length | mm | 3200/3445/3895/4390/5390/6580/7580/8580/10580/- | ||||
Machine width | mm | 1800 | 1800 | 1800 | ||
Machine height | mm | 1880 | 1930 | 1930 | ||
CNC system | - | FANUC/GSK/SIEMENS | FANUC/GSK/SIEMENS | FANUC/GSK/SIEMENS | ||
Machine Details
Chuck：
- 3-jaw chuck comes standard to quickly self-centering clamping parts
- Optional 4-jaw independent chuck to clamping special-shape parts.

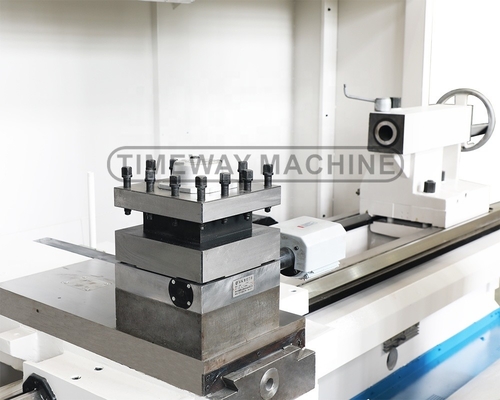

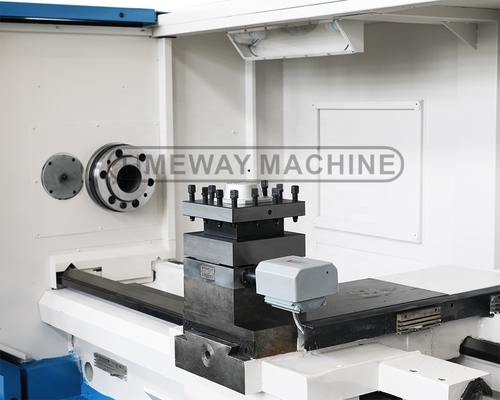

4-stations electric turret:
- Adopt famous brand electric turret, high positioning accuracy.

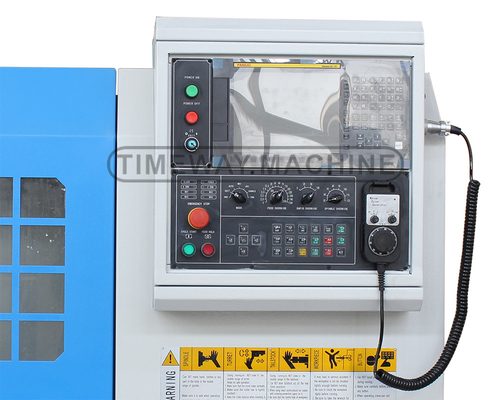

CNC system:
SIEMENS, FANUC, MITSUBISHI, FAGOR, KND, HNC, GSK, etc. for you choice.

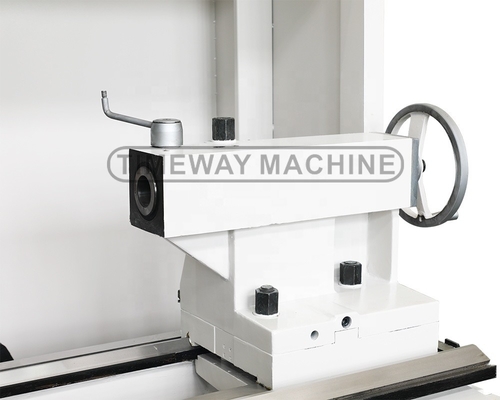

Manual moving tailstock:
Flexible and simple operation, to reduce labor intensity and increase operating pleasure.

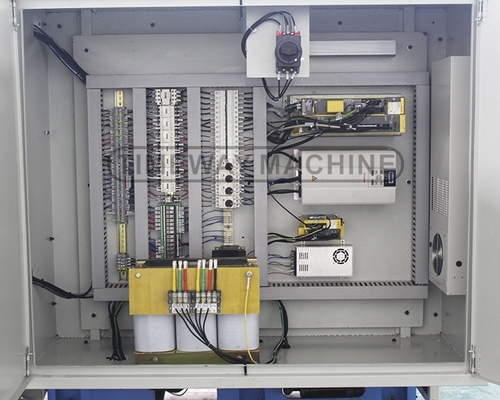

CE-norm electric cabinet:
Clear and neat electric layout;
Adopt CE standard electric components.
Automatic lubrication pump:
Automatically and intermittently lubricate each guide rails to extend the service life of the machine.
4-stations vertical turret:
Standard
6-stations vertical turret:
Optional
6-stations horizontal turret:
Optional
Test - roundness & cylindricity:
Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm
Test - verticality:
Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm
Test - roughness:
Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
Threads turning test:
Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
Comprehensive testing parts:
All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
