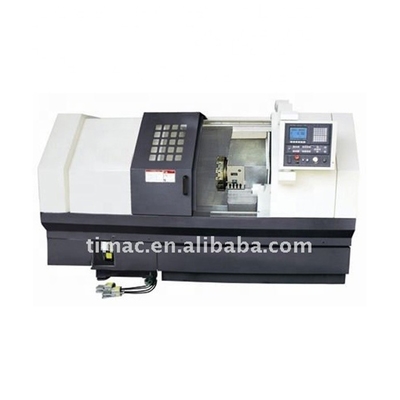

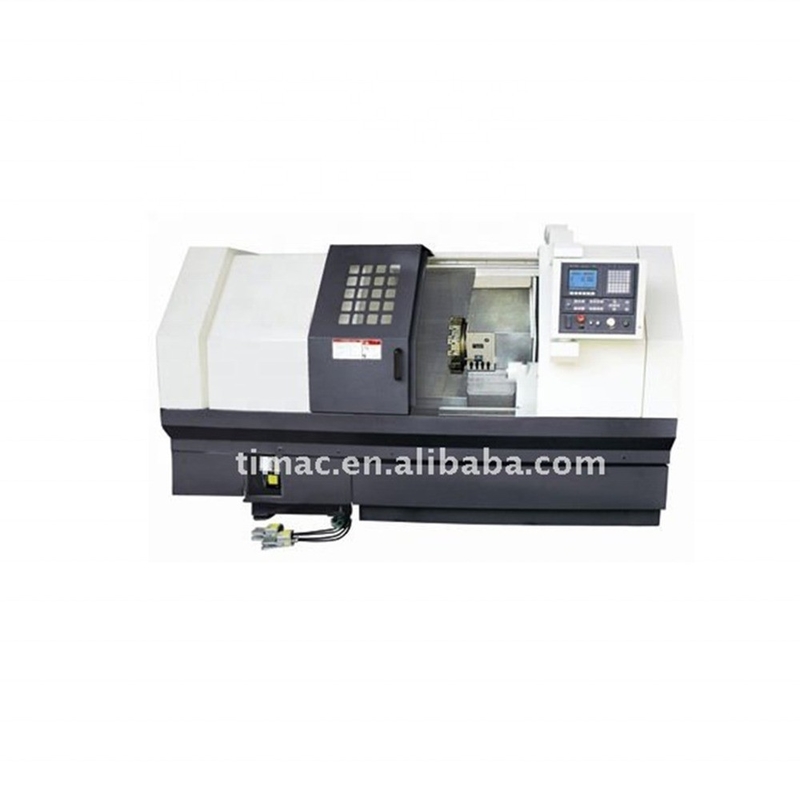

Full Function CNC Lathe with 8 Tool Post Stations and Advanced Features Slant Bed Type
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | ISO, CE Standard |
| Model Number: | KD-40B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $45,000.00/sets 1-2 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 1000 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 500 Mm | Spindle Motor Power(kW): | 11 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 365 Mm | Travel (Z Axis)(mm): | 1050 Mm |
| Positioning Accuracy (mm): | ±0.001 | Repeatability (X/Y/Z) (mm): | ±0.001 |
| Dimension(L*W*H): | 4400x2050x2000 | Voltage: | As Request |
| CNC Control System: | FANUC | Tool Post Stations: | 8 |
| Weight (KG): | 5500 | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Automatic Grade: | Automatic |
| Max. Swing Diameter: | 700mm | Power: | 11kw |
| Max.swing Over Bed: | 700mm | Max.turning Length: | 1000mm |
| Warranty Period: | 1 Year | Machine Type: | Slant Bed Cnc Lathe Machine |
| Condition: | New | Spindle Bore(mm): | 105 |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Peru, Russia, Thailand, Romania, South Africa, Australia |
| Marketing Type: | Ordinary Product | Core Components: | Bearing, Motor, Gear, Engine, Other, Gearbox |
| Max. Turned Length (mm): | 1000 | Max. Spindle Speed (r.p.m): | 1300 R.p.m |
| Port: | China Port. | ||
Product Description
Slant Bed Type CNC Lathe Full Function CNC Lathe
| Model | Unit | KD-40B |
| Max.swing over bed | mm | 700 |
| Max.cutting dia.for disc parts | mm | 670 |
| Max.cutting dia.for axle parts | mm | 440 |
| Max.turning length | mm | 1000 |
| Max.cross travel(X) | mm | 365 |
| Max.Longitudinal travel(Z) | mm | 1050 |
| Rapid feed for Axis X | m/min | 7 |
| Rapid feed for Axis Z | m/min | 12 |
| Max.speed of spindle | r/min | 20-150,150-433,433-1300r/min |
| Spindle bore | mm | 105 |
| Hydraulic chuck | 8″ | |
| Number of tools | 8 | |
| Outside dia.of cutting tool shank | mm | 32×32 |
| Internal dia.of cutting tool shank | mm | 32 |
| Min.input | mm | 0.001 |
| Repeatability(X/Z) | mm | 0.075/0.01 |
| Bed structure | 45°slant bed integrated with stand | |
| Guide ways X&Z | Square(Z),Dovetail(X) | |
| Main motor power | kw | 11 |
| Capacity for coolant | L | 120 |
| Overall dimension(L×W×H) | mm | 4400×2050×2000 |
| Net weight | kg | 5500 |
Standard:
FAUNC 0i mate TD controller; slant bed, hydraulic chuck, hydraulic tool turret, hydraulic tail-stock(if any), precision linear rolling guide ways, high speed spindle, auto. lubricating, auto. chip removal device is optional.
| Why choose TIMEWAY MACHINE? |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
