Max. Turned Length mm 3800 Automatic CNC Machine for 6-tons Big Spindle Hole Processing
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | AK-1250B/AK-1000B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100,000.00/sets 1-2 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 4000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 6000 | Width Of Bed (mm): | 755 Mm |
| Spindle Motor Power(kW): | 30 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 570 Mm |
| Travel (Z Axis)(mm): | 4000 Mm | Positioning Accuracy (mm): | ±0.01 |
| Repeatability (X/Y/Z) (mm): | ±0.008 | Dimension(L*W*H): | 7300x2530x2150mm |
| Voltage: | As Request | CNC Control System: | FANUC |
| Tool Post Stations: | 4 | Weight (KG): | 13000 |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Processing Type: | Automatic |
| Turret Type: | 4/6/8 Station Electric Turret | Tool Change Time: | 2.6s |
| Turret Positioning Accuracy: | 0.01mm | Tool Section Size: | 40x40mm |
| Chuck Size: | 1000mm | Tailstock Quill Taper: | MT6 |
| Tailstock Quill Diameter: | 160mm | Tailstock Quill Travel: | 300mm |
| After-sales Service Provided: | Online Support | Condition: | New |
| Spindle Bore(mm): | 130 | Toolpost Brand: | Yantai |
| Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Restaurant, Retail, Printing Shops, Energy & Mining | Showroom Location: | Canada, Turkey, United Kingdom, United States, Italy, Germany, Brazil, Mexico, Russia, Spain, Uzbekistan, Australia |
| Year: | Latest Day | Max. Spindle Speed (r.p.m): | 320 R.p.m |
| Max. Turned Length (mm): | 3800 | Marketing Type: | Hot Product 2021 |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Gearbox, CNC System | Port: | China Port |
Product Description

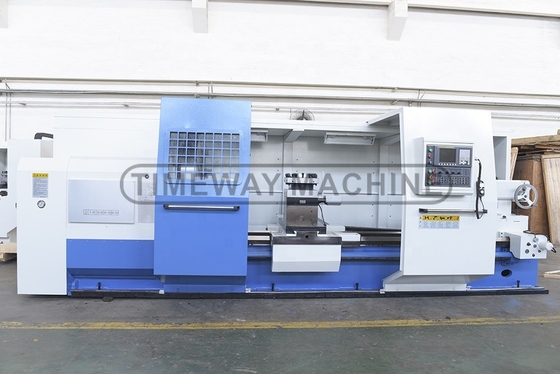

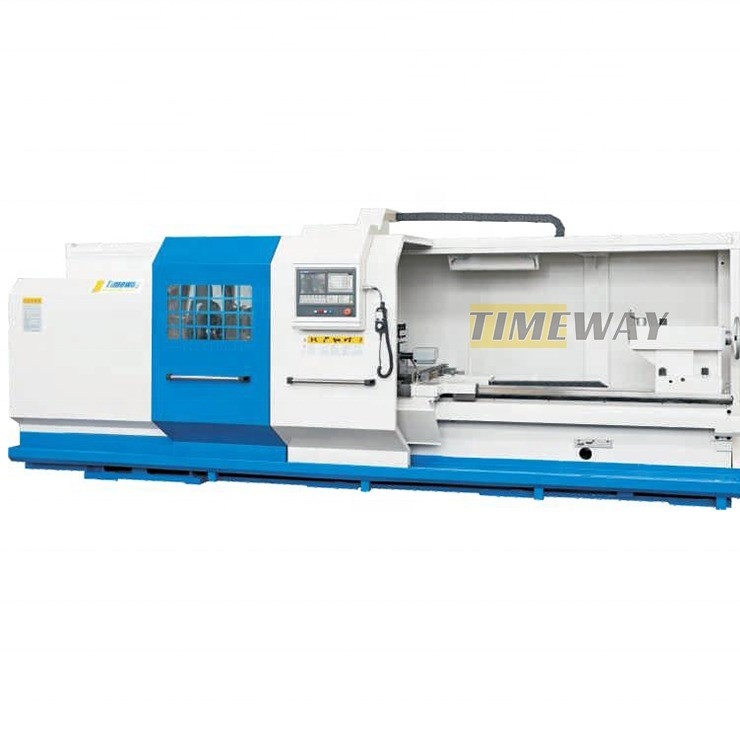

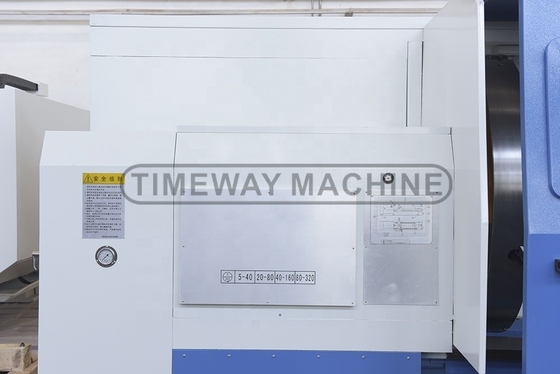

heavy duty horizontal cnc lathe
Products Description
√ FANUC/GSK/SIEMENS CNC system √ 4-jaw chuck √ 4-station electric tool-post √ Work lamp √ Cooling system √ Semi-closed guard √ Manual pulse generator (MPG) √ Dead centers √ Oil gun √ Pilot lamp √ Automatic lubrication pump √ Manual moving tailstock √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | √ Electric moving tailstock √ Steady rest √ Follow rest √ 6-station tool-post √ Live centers √ Air conditioner √ Chip conveyor √ Full guard |
Specification | Unit | AK-1000B | AK-1250B | AK-1400B | AK-1600B | |||
Max. swing over bed | mm | 1000 | 1250 | 1400 | 1640 | |||
Max.. swing over cross slide | mm | 630 | 880 | 1030 | 1250 | |||
Distance between centers | mm | 1000/1500/2000/3000/4000/5000/6000/8000/10000/12000/- | ||||||
Max. turning length | mm | 730/1300/1800/2800/3800/4800/5800/7800/9800/11800/- | ||||||
Bed width | mm | 755 | 755 | 755 | 755 | |||
Loading capacity | kg | 6000 (opt: 8000) | 6000 (opt: 8000) | 6000 (opt: 8000) | 6000 (opt: 8000) | |||
Spindle nose | mm | A2-15 | A2-15 | A2-15 | A2-15 | |||
Spindle bore | mm | 130 | 130 | 130 | 130 | |||
Spindle taper | - | Metric 140 | Metric 140 | Metric 140 | Metric 140 | |||
Spindle speed (Hydraulic 4steps, stepless) | rpm | 5-320 | 5-320 | 5-320 | 5-320 | |||
Center height | mm | 500 | 625 | 700 | 820 | |||
Chuck size (4-jaw) | mm | 1000 | 1000 | 1000 | 1000 | |||
X/Z-axis min. feed unit | mm | 0.001/0.001 | 0.001/0.001 | 0.001/0.001 | 0.001/0.001 | |||
X/Z-axis rapid feed speed | mm/min | 3000/5000 | 3000/5000 | 3000/5000 | 3000/5000 | |||
Cross travel (X) | mm | 570 | 570 | 690 | 630 | |||
Tool post type | - | V4/V6/V8 | V4/V6/V8 | V4/V6/V8 | V4/V6/V8 | |||
Tool change time | s | 2.6 | 2.6 | 2.6 | 2.6 | |||
Turret repeat positioning accuracy | mm | 0.01 | 0.01 | 0.01 | 0.01 | |||
Tool section size | mm | 40x40 | 40x40 | 40x40 | 40x40 | |||
Tailstock quill diameter | mm | 160 | 160 | 160 | 160 | |||
Tailstock quill travel | mm | 300 | 300 | 300 | 300 | |||
Tailstock quill taper | - | MT6 | MT6 | MT6 | MT6 | |||
CNC system | - | FANUC/GSK/SIEMENS | FANUC/GSK/SIEMENS | FANUC/GSK/SIEMENS | FANUC/GSK/SIEMENS | |||
Working accuracy | - | IT6-IT7 | IT6-IT7 | IT6-IT7 | IT6-IT7 | |||
Surface roughness | µm | Ra1.6 | Ra1.6 | Ra1.6 | Ra1.6 | |||
Main motor power | kw | 30 | 30 | 30 | 30 | |||
Machine weight | kg | 9800/10200/10600/11800/13000/14800/16600/20600/24600/28600/- | ||||||
Machine length | mm | 4300/4800/5300/6300/7300/8300/9300/11300/13300/15300/- | ||||||
Machine width | mm | 2530 | 2530 | 2780 | 2780 | |||
Machine height | mm | 2150 | 2150 | 2600 | 2600 | |||
Machine Details
Chuck：

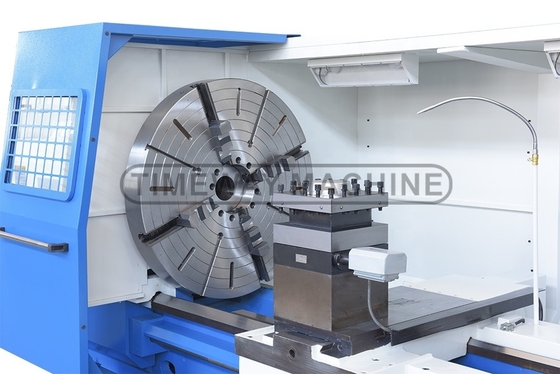

- Standard 4-jaw independent chuck to clamping special-shape parts.
4-stations electric turret:
- Adopt famous brand electric turret, high positioning accuracy.

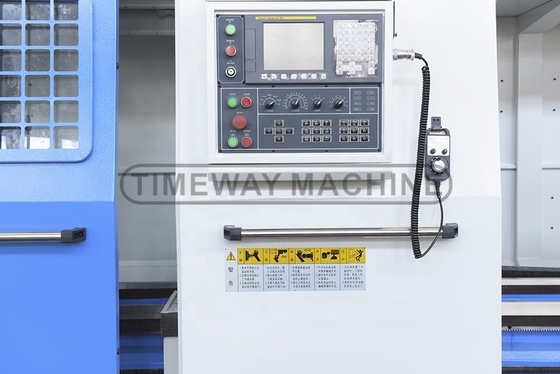

CNC system:
SIEMENS, FANUC, MITSUBISHI, FAGOR, KND, HNC, GSK, etc. for you choice.
Tailstock:

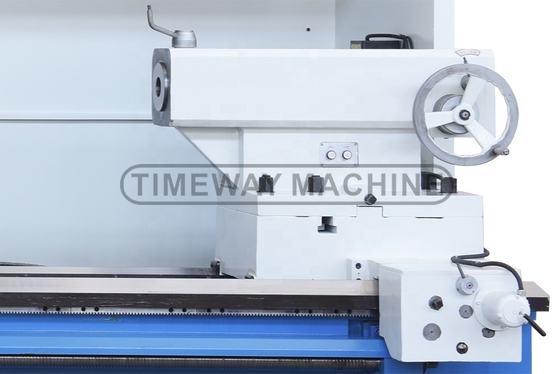

Manual moving tailstock comes standard, the electric moving taisltock comes optional.
CE-norm electric cabinet:
Clear and neat electric layout;
Adopt CE standard electric components.
Automatic lubrication pump:
Automatically and intermittently lubricate each guide rails to extend the service life of the machine.
4-stations vertical turret:
Standard
6-stations vertical turret:
Optional
6-stations horizontal turret:
Optional
Test - roundness & cylindricity:
Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm
Test - verticality:
Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm
Test - roughness:
Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
Threads turning test:
Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
Comprehensive testing parts:
All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
