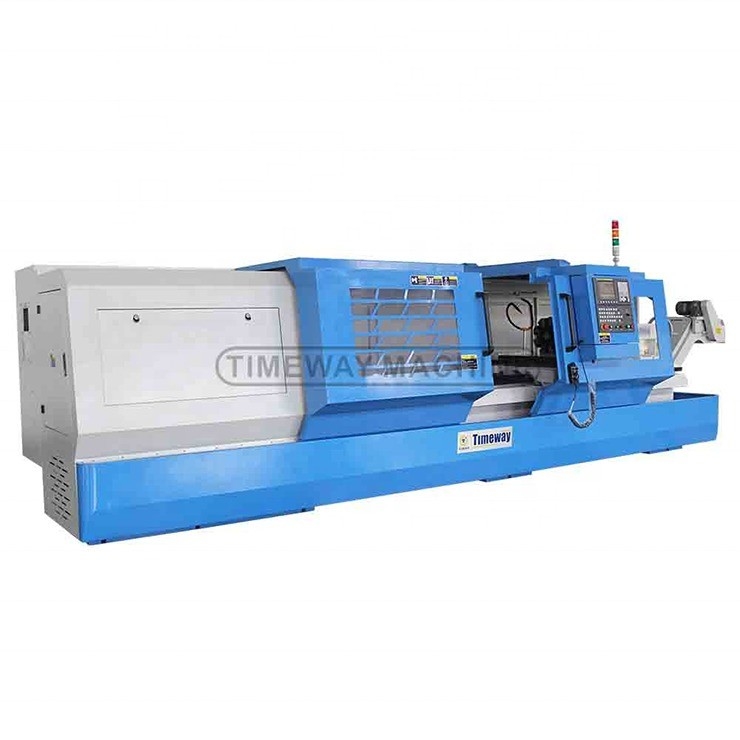

800mm Bed Width Flat Bed CNC Lathe Machine with Full Functions and Max. 520mm Swing
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | CK800U |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-2 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 800 Mm | Spindle Motor Power(kW): | 15 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 420 Mm | Travel (Z Axis)(mm): | 3000 Mm |
| Positioning Accuracy (mm): | 0.02 | Repeatability (X/Y/Z) (mm): | 0.01 |
| Dimension(L*W*H): | As Models. | Voltage: | As Request |
| Tool Post Stations: | 6, 4 | Weight (KG): | 7200 |
| Warranty: | 1 Year | Key Selling Points: | Long Service Life |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Cnc |
| Automatic Grade: | Automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Cnc Lathe: | Flat Bed Type Cnc Lathe/full Function Cnc Lathe | Power (kW): | 11/15 |
| Max.. Swing Over Cross Slide: | 520mm | Spindle Nose: | A2-11 |
| Center Height: | 400mm | Chuck Size: | 325mm |
| Working Accuracy: | IT6mm | Condition: | New |
| Spindle Bore(mm): | 104 | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C |
| Showroom Location: | Canada, United States, Italy, Germany, Mexico, Russia, Spain, South Africa, Australia | Marketing Type: | Ordinary Product |
| Core Components: | Bearing, Motor, Pump, Gear | Max. Spindle Speed (r.p.m): | 1250 R.p.m |
| Max. Turned Length (mm): | 3000 | Port: | China Port. |
Product Description
Features:
* The machine adopts global famous controller RS232 interface.
* Longitudinal and cross feeds are effected by ball leadscrews.
* Either vertical or horizontal 4/6 station tool post or gang tools can be selected.
* The tool post is located on precision contrite gears with a high repeated positioning accurcy.
* Both chuck and tailstock are supplied with hydraulic or manual type.
* The surface of the guideways is supersonic frequency hardened and precision ground with a long service life.
* The spindle system is high in the rigidity and accuracy.
* An inverter is used to realize variable speed.
* Longitudinal and cross feeds are effected by ball leadscrews.
* Either vertical or horizontal 4/6 station tool post or gang tools can be selected.
* The tool post is located on precision contrite gears with a high repeated positioning accurcy.
* Both chuck and tailstock are supplied with hydraulic or manual type.
* The surface of the guideways is supersonic frequency hardened and precision ground with a long service life.
* The spindle system is high in the rigidity and accuracy.
* An inverter is used to realize variable speed.
Products Description
GSK 980TDI 3-jaw chuck 4-station electronic tool post Electronic handwheel Lubrication system Cooling system Work lamp Protection guard Axial fan Leveling blocks & bolts Tools & tool-box Operation manuals | FANUC CNC system SIEMENS CNC system 4-jaw chuck Horizontal 6-station tool post Horizontal 8-station tool post Pilot lamp Air conditioner Heat exchanger Hydraulic chuck Special fixture Tool setter Chain type chip conveyor |
Specification | Unit | CK630U | CK800U | CK6180E |
Max. swing over bed | mm | 630 | 800 | 800 |
Max.. swing over cross slide | mm | 350 | 520 | 480 |
Distance between centers | mm | 1500/3000 | 1500/3000 | 1620/2210/3120 |
Max. turning length | mm | 1500/3000 | 1500/3000 | 1620/2210/3120 |
Bed width | mm | 600 | 600 | 600 |
Spindle nose | mm | A2-11 | A2-11 | C11 |
Spindle bore | mm | 104 | 104 | 105 |
Spindle taper | - | Metric | Metric | Metric |
Spindle speed (steps) | rpm | 11-1250 (3), automatic | 11-1250 (3), automatic | 45-950 (3), Manual |
Center height | mm | 315 | 400 | 400 |
Chuck size | mm | 325 | 325 | 325 |
Cross travel (X) | mm | 420 | 420 | 470 |
Longitudinal travel (Z) | mm | 1500/3000 | 1500/3000 | 1620/2210/3120 |
X/Z-axis rapid feed speed | mm/min | 4/8 | 4/8 | 6/8 |
X/Z-axis min. feed unit | mm | 0.001 | 0.001 | 0.001 |
X-axis feed motor torque | NM | 10 | 10 | 15 |
Z-axis feed motor torque | NM | 15/30 | 15/30 | 18/23/30 |
Tool post type | - | V4/H6 | V4/H6 | V4 |
Tool section size | mm | 32x32 | 32x32 | 32x32 |
Tailstock quill diameter | mm | 100 | 100 | 100 |
Tailstock quill travel | mm | 250 | 250 | 250 |
Tailstock quill taper | - | MT5 | MT5 | MT5 |
Main motor power | kw | 11 | 15 | 11 |
Coolant pump power | kw | 0.12 | 0.12 | 0.12 |
Working accuracy | mm | IT6 | IT6 | IT6 |
X/Z-axis positioning accuracy | mm | 0.03/0.04 | 0.03/0.04 | 0.03/0.04 |
X/Z-axis repositioning accuracy | mm | 0.012/0.016 | 0.012/0.016 | 0.012/0.016 |
Roughness | um | Ra1.6 | Ra1.6 | Ra1.6 |
Machine dimensions (LxWxH) | mm | 4307/5785x2040x1855 | 4307/5785x2040x1855 | 4500/5100/6200x2040x1855 |
Machine weight | kg | 5800/7200 | 5800/7200 | 5400/5750/7080 |
Machine Details

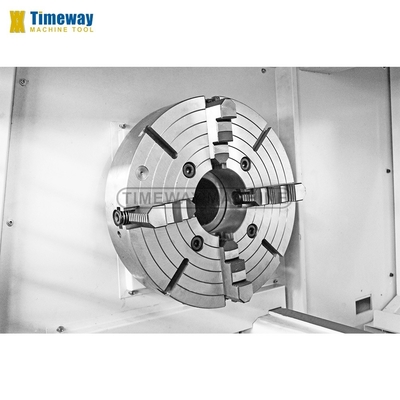

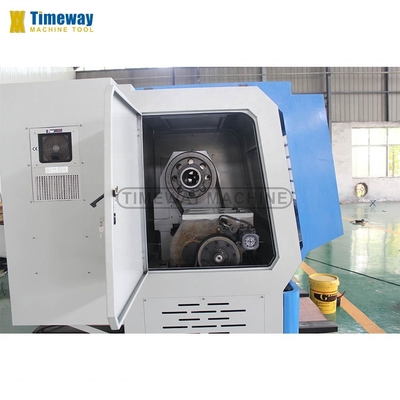

Chuck：
- Standard 4-jaw independent chuck to clamping special-shape parts.
4-stations electric turret:
- Adopt famous brand electric turret, high positioning accuracy.

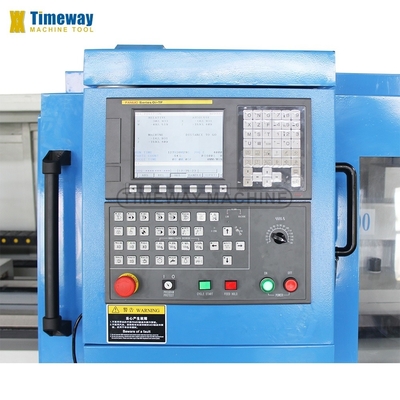

CNC system:
SIEMENS, FANUC, MITSUBISHI, FAGOR, KND, HNC, GSK, etc. for you choice.

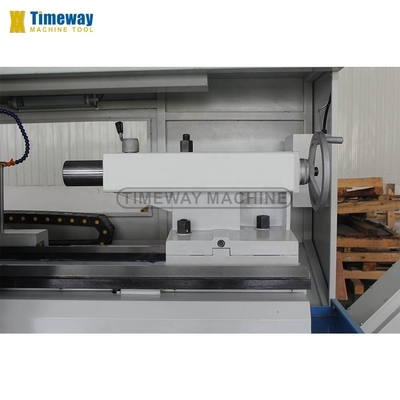

Tailstock:
Manual moving tailstock comes standard, the electric moving taisltock comes optional.

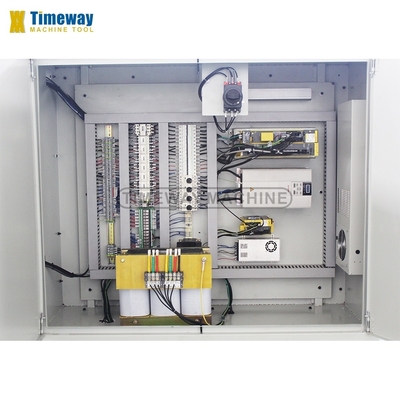

CE-norm electric cabinet:
Clear and neat electric layout;
Adopt CE standard electric components.
Automatic lubrication pump:
Automatically and intermittently lubricate each guide rails to extend the service life of the machine.
4-stations vertical turret:
Standard
6-stations vertical turret:
Optional
6-stations horizontal turret:
Optional
Test - roundness & cylindricity:
Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm
Test - verticality:
Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm
Test - roughness:
Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
Threads turning test:
Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
Comprehensive testing parts:
All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
Why Choose Us
Renishaw laser interferometer：
Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
