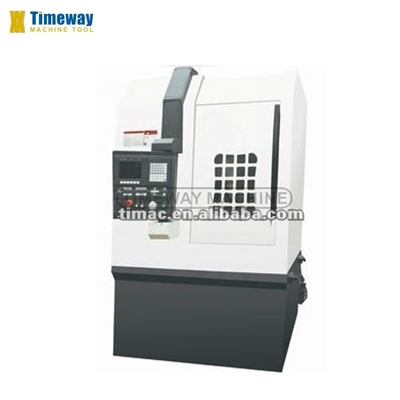

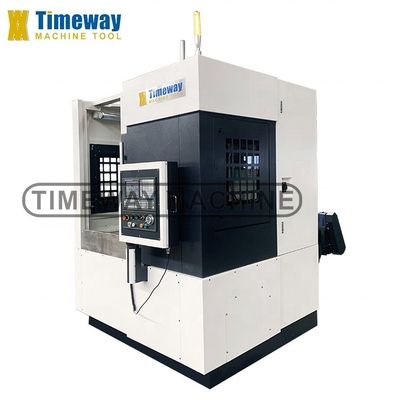

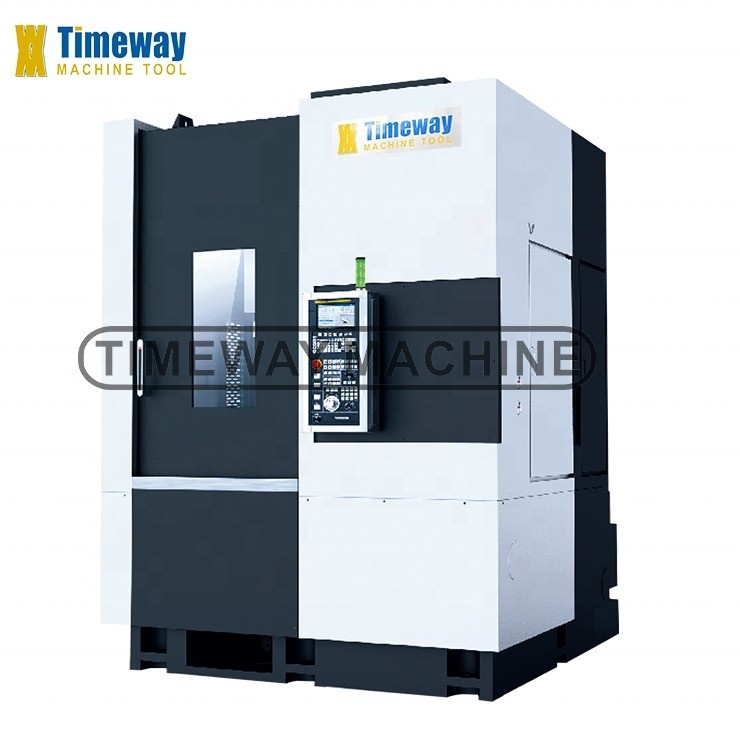

Rapid Z Axis Feed of 10m/min Small CNC Vertical Lathe Machine for Machinery Repair Shops
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | VK500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets 1-2 sets |
| Packaging Details: | wooden case |
| Supply Ability: | 100 Set/Sets per Month . |
|
Detail Information |
|||
| Type: | VERTICAL | Max. Length Of Workpiece (mm): | 500 |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 530 Mm |
| Spindle Motor Power(kW): | 11 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 250 Mm |
| Travel (Z Axis)(mm): | 450 Mm | Dimension(L*W*H): | 1590x2670x2545mm |
| Tool Post Stations: | 8 | Weight (KG): | 4500 |
| Warranty: | 1 Year | Key Selling Points: | Sustainable |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Main Motor: | 11KW |
| Max. Cutting Diameter: | 500mm | Max. Height Of Turning: | 40mm |
| Spindle Nose: | A2-8 | Front Spindle Bearing ID: | 120mm |
| Spindle Speed Range: | 100-2000mm | Travel Of Z Axis: | 50-250mm |
| Travel Of X Axis: | 450mm | Rapid Feed Of X Axis: | 8m/min |
| Rapid Feed Of Z Axis: | 10m/min | Condition: | New |
| Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Retail, Energy & Mining | Showroom Location: | Canada, United States, Italy, Germany |
| Marketing Type: | Ordinary Product | Core Components: | Bearing, Motor, Engine |
| Max. Spindle Speed (r.p.m): | 2000 R.p.m | Spindle Bore(mm): | 120 |
| Port: | China Port | ||
Product Description
Products Description
Features:
1. Compact structure, rigid spindle component and good for heavy cutting.
2. Easy to chuck and remove, workpiece roundness and other precision are ensured.
3. The turret on the slide moves along longitudinal or cross rails.
4. There are three cross rails to support the slide. Ball screws and linear rails are used to ensure smooth feed and high precision.
5. Different handles, electric buttons and CRT displayer are all on the same rocking panel for easy operation.
6. Machine totally sealed guard structure. Back side chip removal conveyor.
2. Easy to chuck and remove, workpiece roundness and other precision are ensured.
3. The turret on the slide moves along longitudinal or cross rails.
4. There are three cross rails to support the slide. Ball screws and linear rails are used to ensure smooth feed and high precision.
5. Different handles, electric buttons and CRT displayer are all on the same rocking panel for easy operation.
6. Machine totally sealed guard structure. Back side chip removal conveyor.
Model | VK500 |
Max. swing | Φ530mm |
max. cutting diameter | Φ500mm |
Max. height of turning | 40mm |
Spindle nose | A2-8 |
Front spindle bearing ID | Φ120mm |
Spindle speed range | 100-2000mm |
Spindle nose | A2-8 |
Travel of X axis | -50; +250mm |
Travel of Z axis | 450mm |
Rapid feed of X axis | 8m/min |
Rapid feed of Z axis | 10m/min |
Type of tool stations | Horizontal 8-position |
Number of tool stations | 8 |
Tool shank size (square) | 25x25mm |
Tool shank size (round) | Φ40mm |
Main motor | 11KW |
Coolant pump motor | 0.9Kw |
Net weight | 5500kg |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
