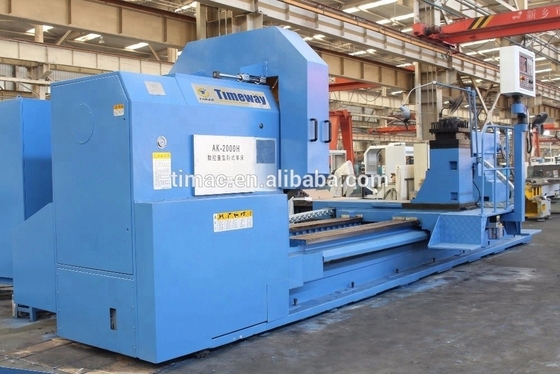

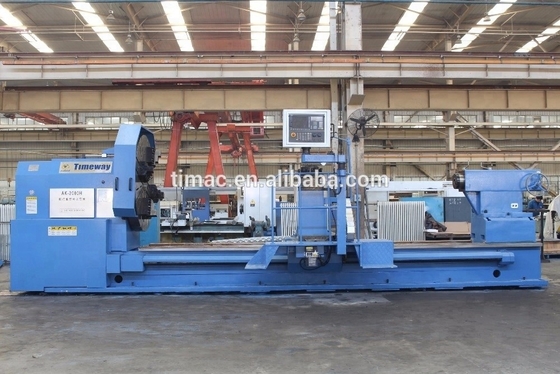

SIEMENS CNC System Giant CNC Lathe for Machining of Workpieces up to 5000mm in Length
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE ISO |
| Model Number: | AK-2000x5M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $300,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 10 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 5000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 16000 | Width Of Bed (mm): | 1100 Mm |
| Spindle Motor Power(kW): | 30 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 850 Mm |
| Travel (Z Axis)(mm): | 5000 Mm | Positioning Accuracy (mm): | ±0.015 |
| Repeatability (X/Y/Z) (mm): | ±0.008 | Dimension(L*W*H): | 8400x3200x2950mm |
| Voltage: | 200V-460V | CNC Control System: | Siemens |
| Tool Post Stations: | 4 | Weight (KG): | 19400 |
| Warranty: | 1 Year | Key Selling Points: | High Safety Level |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 2 Years | CNC Or Not: | CNC |
| Automatic Grade: | Automatic | Color: | Customized Option |
| Bed Guideway Type: | Double Rectangles | Bed Width: | 1100mm |
| Max. Weight Of Workpiece: | 16000kg | Spindle Speed: | 4shifts, 3-320rpm |
| Spindle Bore: | 100mm | Spindle Taper: | Metric 140 |
| Max. Swing Diameter: | 2000mm | After-sales Service Provided: | Online Support, Video Technical Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Canada, United Kingdom, United States, Italy, France, Germany, Brazil, Mexico, Russia, Spain, Australia, South Africa, Uzbekistan |
| Condition: | New | Toolpost Brand: | Yantai |
| Applicable Industries: | Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Construction Works , Energy & Mining | Showroom Location: | Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Brazil, Mexico, Russia, Spain, Uzbekistan, Australia |
| Marketing Type: | Ordinary Product | Spindle Bore(mm): | 100 |
| Max. Turned Length (mm): | 4800 | Year: | 2021 |
| Core Components: | SIEMENS CNC System | Max. Spindle Speed (r.p.m): | 250 R.p.m |
| Port: | China Port | ||
Product Description
Products Description
√ FANUC/GSK/SIEMENS CNC system √ 4-jaw chuck √ 4-station electric tool-post √ Work lamp √ Cooling system √ Manual pulse generator (MPG) √ Dead centers √ Oil gun √ Pilot lamp √ Automatic lubrication pump √ Manual moving tailstock √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | _ Steady rest _ Follow rest _ Semi-closed guard _ 6/8-station tool-post _ Live centers _ Air conditioner _ Chip conveyor |
Specification | Unit | AK-1250 | AK-1600 | AK-1800 | AK-2000 | |||
Max. swing over bed | mm | 1250 | 1600 | 1800 | 2000 | |||
Max.. swing over cross slide | mm | 900 | 1250 | 1450 | 1600 | |||
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/- | ||||||
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800/- | ||||||
Bed width | mm | 1100 | 1100 | 1100 | 1100 | |||
Chuck size (4-jaw) | mm | 1250 | 1400 | 1400 | 1600 | |||
Loading capacity | tons | 16 (opt: 20) | 16 (opt: 20) | 16 (opt: 20) | 16 (opt: 20) | |||
Spindle nose | mm | A2-15 | A2-15 | A2-15 | A2-15 | |||
Spindle bore | mm | 100 | 100 | 100 | 100 | |||
Spindle taper | - | Metric 140 | Metric 140 | Metric 140 | Metric 140 | |||
Spindle speed (Hydraulic 4steps, stepless) | rpm | 3-320 | 3-320 | 3-250 | 3-250 | |||
Spindle speed (manual) | rpm | Forward: 3.15-315 (21); Reverse: 3.5-291 (12) | ||||||
Max. cutting force | N | 39200 | 39200 | 39200 | 39200 | |||
X/Z-axis rapid feed speed | mm/min | 4000/6000 | 4000/6000 | 4000/6000 | 4000/6000 | |||
Cross travel (X) | mm | 850 | 850 | 850 | 850 | |||
Tool post type | - | V4 | V4 | V4 | V4 | |||
Tool post size | mm | 380x380 | 380x380 | 380x380 | 380x380 | |||
Max. feed force (X) | N | 10875 | 10875 | 10875 | 10875 | |||
Tool section size | mm | 50x50 | 50x50 | 50x50 | 50x50 | |||
Tailstock quill diameter | mm | 260 | 260 | 260 | 260 | |||
Tailstock quill travel | mm | 300 | 300 | 300 | 300 | |||
Tailstock quill taper | - | Metric 80 | Metric 80 | Metric 80 | Metric 80 | |||
Working accuracy | - | IT7 | IT7 | IT7 | IT7 | |||
Surface roughness | µm | Ra2.5-3.2 | Ra2.5-3.2 | Ra2.5-3.2 | Ra2.5-3.2 | |||
Main motor power | kw | 30 | 30 | 30 | 30 | |||
Machine weight | kg | 15000/17200/19400/21560/26000/30400/34800/- | ||||||
Machine length | mm | 6400/7400/8400/9400/11400/13400/15400/- | ||||||
Machine width | mm | 3200 | 3200 | 3200 | 3200 | |||
Machine height | mm | 2220 | 2750 | 2850 | 2950 | |||

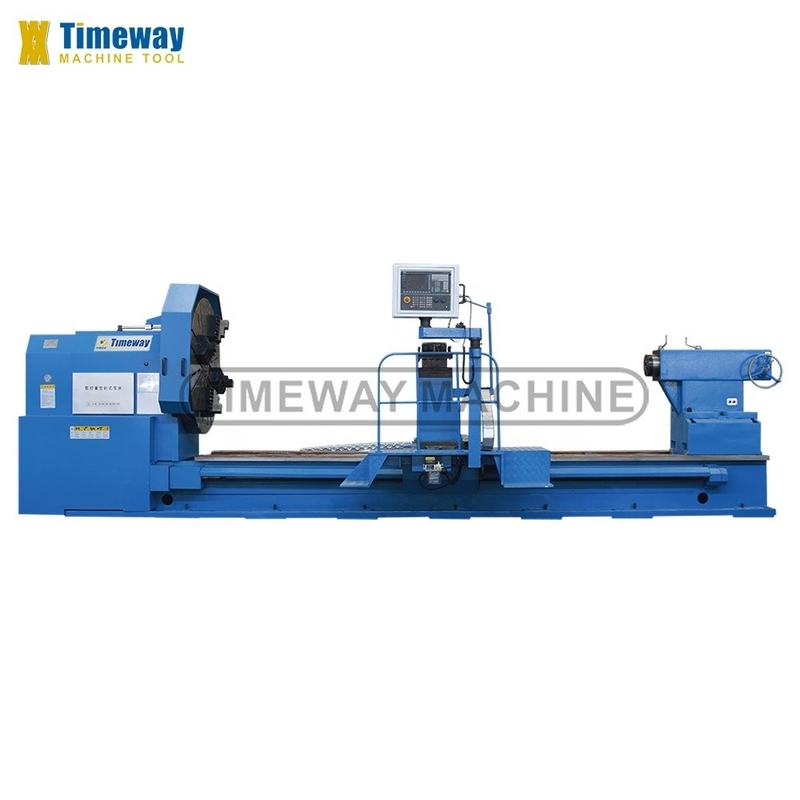

Machine Details

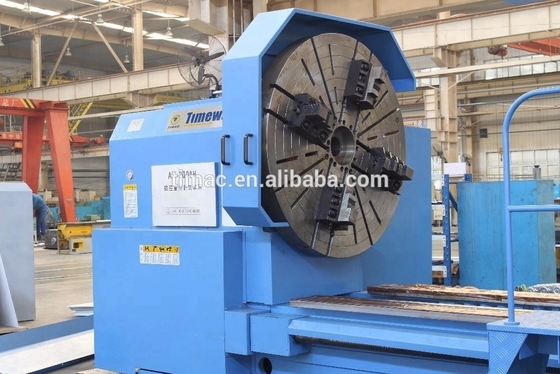

Chuck：
- Standard 4-jaw independent chuck to clamping special-shape parts.

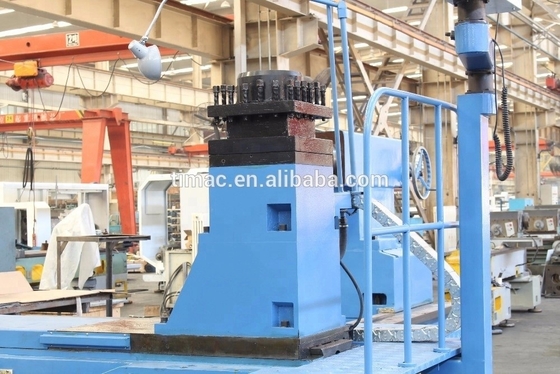

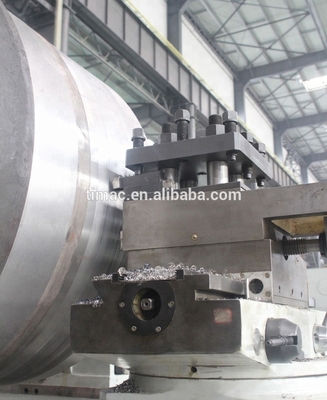

4-stations electric turret:
- Adopt famous brand electric turret, high positioning accuracy.
CNC system:
SIEMENS, FANUC, MITSUBISHI, FAGOR, KND, HNC, GSK, etc. for you choice.
Electric moving tailstock:
Flexible and simple operation, to reduce labor intensity and increase operating pleasure.
CE-norm electric cabinet:
Clear and neat electric layout;
Adopt CE standard electric components.
Automatic lubrication pump:
Automatically and intermittently lubricate each guide rails to extend the service life of the machine.
4-stations vertical turret:
Standard
6-stations vertical turret:
Optional
6-stations horizontal turret:
Optional
Test - roundness & cylindricity:
Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm
Test - verticality:
Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm
Test - roughness:
Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
Threads turning test:
Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
Comprehensive testing parts:
All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
