ISO A2-5 Spindle Nose Single Spindle Automatic Full-Function CNC Lathe for Production
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $60,000.00/sets 1-2 sets |
| Packaging Details: | Woode case/Pallet |
| Supply Ability: | 300 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Spindle Taper: | ISO |
|---|---|---|---|
| No. Of Spindles: | Single | Type: | Horizontal |
| Dimension(L*W*H): | 2290x1460x1650mm | Weight (T): | 4 T |
| CNC Control System: | FANUC | Number Of Axes: | 2 |
| Table Travel (X) (mm): | 300 | Table Travel (Y) (mm): | None |
| Table Travel (Z) (mm): | 400 | Positioning Accuracy (mm): | ±0.01 |
| Repeatability (X/Y/Z) (mm): | ±0.012 | Spindle Motor Power(kW): | 7.5/11 |
| Max. Table Load(kg): | 3 Kg | Feed Speed(mm/min): | 1 - 8000 Mm/min |
| Min. Time Of Tool Change(s): | 4 | Tool Magazine Capacity: | 3 |
| Key Selling Points: | Automatic | Warranty: | 1 Year |
| Voltage: | 220/380V | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Full Function Cnc Lathe: | High Speed Cnc Lathe |
| Max. Swing Diameter Over Bed: | 450mm | Max. Swing Diameter Over Carriage: | 200mm |
| Max. Turning Diameter: | 200mm | Max. Stroke X/Z: | 300/400mm |
| Max.spindle Speed: | 6000rpm | Model Of Spindle Nose: | ISO A2-5 |
| Dia. Of Through Spindle Bore: | 56mm | Power Capacity: | 20KVA |
| After-sales Service Provided: | Online Support | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail |
| Showroom Location: | Canada, United States, Germany, Mexico, Australia | Core Components: | Bearing |
| Port: | China Port | ||
Product Description
Full-Function CNC Lathe
Product Description
Features:
- Clamped by hydraulic pressure, convenient and reliable .Drive in the direction of longitudinal .
- and cross adopts servo motor with high performence, the positioning accuracy is high.
- The design of safe-guarde adopts inner sliding door and completed -closed enclosure, slinky and decent appearance,good protection performence.
- Sufficient and reliable lubrication is due to the automatic centralized lubrication system.
- Horizontal slant bed working with chain type automatic chip conveying system are able
- to solve the chip conveyed problem fundamentally.
Parameters:

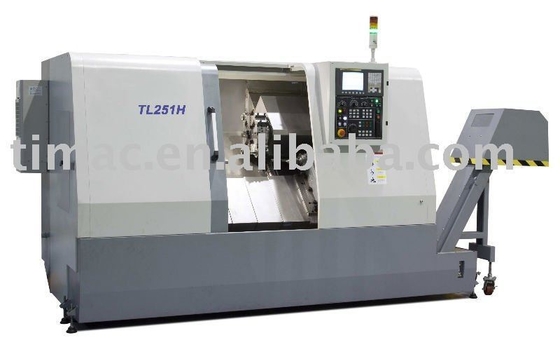

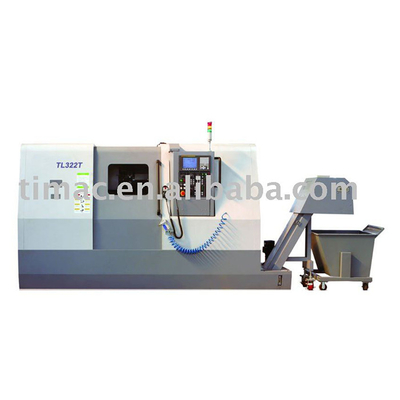

| Model | Unit | TL201HG | TL201HC | TL251H | TL322H | TL635H | ||
| Cutting ranges | Max. swing diameter over bed | mm | 450 | 450 | Φ250/Φ470(hydraulic tailstock) | Φ380/Φ600(hydraulic tailstock) | Φ660 | |
| Max. swing diameter over carriage | mm | 200 | 200 | Φ250/Φ320(hydraulic tailstock) | Φ320/Φ420(hydraulic tailstock) | Φ450 | ||
| Max. turning diameter | mm | 200 | 200 | Φ250 | Φ320 | Φ630 | ||
| Max. turning length | mm | 360 | 360 | 400 | 600 | 1500 | ||
| Max. stroke X/Z | mm | 300/400 | 125/400 | 240/450(Z1)/550(Z2) | 260/670(Z1)/500(Z2) | 350/1600 | ||
| Rapid traverse X/Z | m/min | 24/30 | 24/30 | 24/30(Z1)/24(Z2) | 24/30(Z1)/24(Z2) | 8/12 | ||
| Feed speed X/Z | mm | 1-8000 | 1-8000 | 1-8000 | 1-8000 | 1-8000 | ||
| Spindle | Max.spindle speed | rpm | 6000 | 6000 | 5000 | 4000 | 2000 | |
| Model of spindle nose | ISO | A2-5 | A2-5 | A2-6 | A2-6 | A2-11 | ||
| Dia. of through spindle bore | mm | 56 | 56 | Φ57 | Φ65 | Φ100 | ||
| Taper of spindle taper bore | morse 6# | morse 6# | 6# | 80 | 120 | |||
| Distance from spindle center to floor | mm | 980 | 980 | 1050 | 1020 | 1200 | ||
| Tailstock | Dia. of tailstock sleeve | mm | — | — | programmable tailstock(linear rolling guideways+servo motor ) | programmable tailstock(linear rolling guideways+servo motor ) | Φ160 | |
| Stroke of tailstock sleeve | mm | — | — | hydraulic tailstock(Dia.of sleeve100,stroke100) | hydraulic tailstock(Dia.of sleeve100,stroke100) | 180 | ||
| Tailstock bore’s taper bor | — | — | 5# | 5# | 5# | |||
| Hydraulic turret | Number of tools | 3(rows of tools) | 8 | 8 | 12 | 12 | ||
| Model of tool shank | mm | 20x20 | 25×25 | 25×25 | 25×25 | 32x25 | ||
| Max. dia. of boring shank | mm | 32 | 32 | Φ40 | 40 | Φ50 | ||
| Machine accuracy | Positioning accuracy | X | mm | 0.006 | 0.006 | 0.006 | 0.006 | 0.016 |
| Z | mm | 0.008 | 0.008 | 0.008 | 0.008 | 0.032 | ||
| Repeatability accuracy | X | mm | 0.004 | 0.004 | 0.004 | 0.004 | 0.007 | |
| Z | mm | 0.006 | 0.006 | 0.006 | 0.006 | 0.013 | ||
| Power capacity | KVA | 20 | 20 | 25 | 35 | 50 | ||
| Machine Dimensions (L× W× H) | mm | 2290×1460×1650 | 2290 ×1460× 1650 | 2750 ×1600× 1810 | 3300×1680× 1820 | 6840×2360× 2300 | ||
| Weight of machine(net) | Kg | 4000 | 4000 | 4500 | 4800 | 13000 | ||
| CNC System | FANUC 0i mate{SIMENS 802D sl} | FANUC 0i mate{SIMENS 802D sl} | FANUC 0i TD{SIMENS 802D sl} | FANUC 0i TD{SIMENS 802D sl} | FANUC 0i TD{SIMENS 802D sl} | |||
| Power of main motor | Kw | 7.5/11 | 7.5/11 | 7.5/11 | 11/15 | 22/30 | ||
| Torque of servo motor | X | Nm | 7 | 7 | 8 | 12 | 12 | |
| Z | Nm | 7 | 7 | 8 | 12 | 22 | ||
| Hydraulic chuck | Inch | hollow 6" | hollow 6" | hollow 6" | hollow 6" | hollow 6" | ||
| Other | Lighting device, automatic chip conveying device, coolant system, automatic lubrication system, | Lighting device, automatic chip conveying device, coolant system, automatic lubrication system, | Lighting device, automatic chip conveying device, coolant system, automatic lubrication system, | Lighting device, automatic chip conveying device, coolant system, automatic lubrication system, | Lighting device, automatic chip conveying device, coolant system, automatic lubrication system, | |||
| complete closed-enclosure, blowing equipment, electricity gas tank air conditioning, beacon light with 3colors | complete closed-enclosure, blowing equipment, electricity gas tank air conditioning, beacon light with 3colors | complete closed-enclosure, blowing equipment, electricity gas tank air conditioning, beacon light with 3colors | complete closed-enclosure, blowing equipment, electricity gas tank air conditioning, beacon light with 3colors | complete closed-enclosure, blowing equipment, electricity gas tank air conditioning, beacon light with 3colors | ||||
