Max. Turned Length of 2905mm 520mm Swing CNC Lathe Machine with 12 Tool Post Stations
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | AD-25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets >=1 sets |
| Packaging Details: | wooden case(can be fumigated) |
| Supply Ability: | 100 Set/Sets per Month . |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 520 Mm | Spindle Motor Power(kW): | 15 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 230 Mm | Travel (Z Axis)(mm): | 590 Mm |
| Voltage: | As Requested | CNC Control System: | Siemens |
| Tool Post Stations: | 12 | Weight (KG): | 5000 |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| Slant Bed Type: | CNC Lathe | Spindle Speed Range: | 35-3500rpm |
| Spindle Nose: | A2-8 | Hydraulic Chuck Size: | 10''inch |
| Tool Post Type: | H12 | Tool Change Time: | 0.3sec |
| After-sales Service Provided: | Online Support | Max. Swing Diameter (mm): | 520 |
| Condition: | New | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Food Shop |
| Showroom Location: | Canada, United States, Italy, Germany | Marketing Type: | Ordinary Product |
| Core Components: | Bearing, Motor, Pump, Engine | Max. Spindle Speed (r.p.m): | 3500 R.p.m |
| Spindle Bore(mm): | 87 | Max. Turned Length (mm): | 2905 |
| Port: | China Port | ||
Product Description

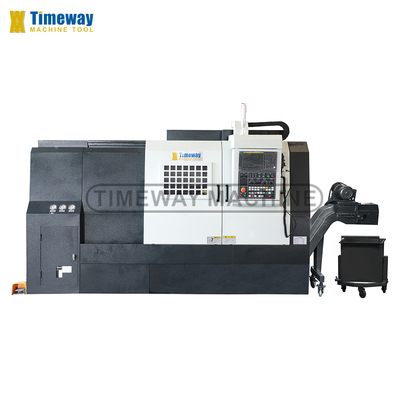

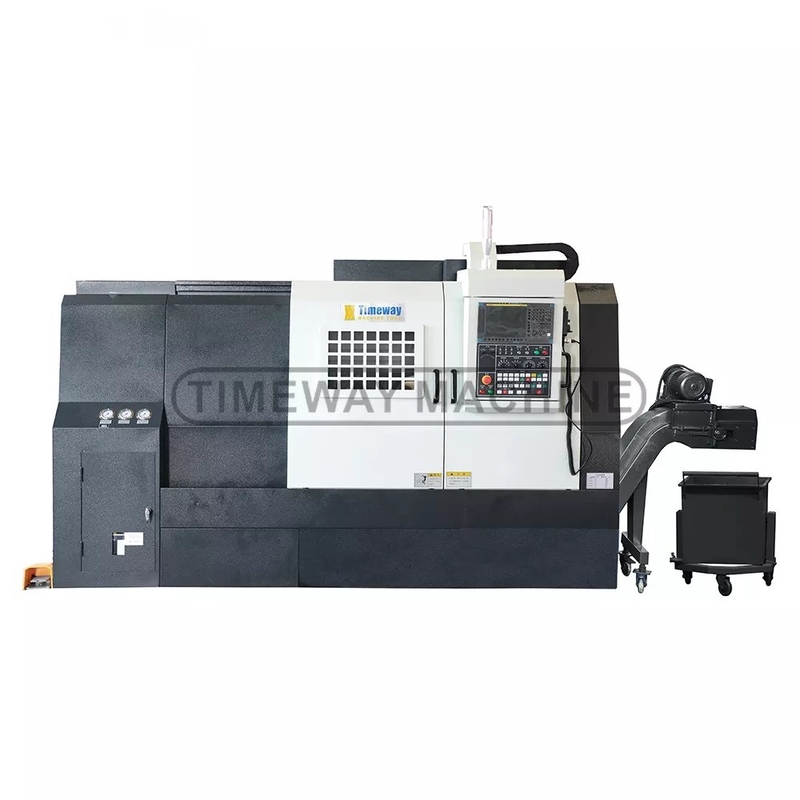

520mm Swing Precision Slant Bed CNC Lathe Machine
1. The unique construction developed using FEA techniques to provide maximum stiffness under the heaviest cutting conditions. 2. Main motor uses Japan FANUC wide-area high-performance AC servo motor, stepless speed, spindle box without gear structure, high speed and low noise. 3. Imported hydraulic solid chuck and high-speed fuel cylinder, and equipped with foot switch made in Taiwan, it is easier to quickly clamping the workpieces. 4. X/Z-axis transmission system uses high-precision ball screw driven by FANUC AC motor directly, there are no belt and gear drive, avoided the backlash and vibration generated. 5. Taiwan 8/12-stations hydraulic turret comes standard, tool change quick and accurate, and large locking force. 6. The Hydraulic tailstock is standard equipment, tailstock sleeve is controlled by programmable. 7. CNC system uses the internationally renowned FANUC, SIEMENS or China GSKAC servo control system, big functions and stable performances. 8. This CNC lathe machine has fully enclosed protection, and equipped with emergency stop safety button, when it suddenly encounters a sudden power failure or other failures, as a result of the special design of the control circuit, the machine can be self-protected to ensure the safety of itself and personnel. 9. The operation panel is about 1500mm from the ground, it is highly moderate, ergonomic, pleasant and easy to operate and understand the operation of the machine. 10. Automatic central lubrication, coolant system and chain conveyors extend intervals between maintenance and reduce down-times. 11. This CNC lathe machine can be added C-axis used as turning centre, also can be added online detection function; hydraulic clamping force grading automatic adjustment function; In accordance with the special needs of users added automatic bar feeder, automatic doors and other automation peripherals device. AK-55 can be choosen, bed slant angle 75°; Standard accessories: FANUC 0i-TF Hydraulic chuck Hydraulic turret Hydraulic tailstock Electronic handwheel Lubrication system Cooling system Work lamp Pilot lamp Full protection guard Air conditioner Chip conveyor Leveling blocks & bolts Tools & tool-box Operation manuals Optional accessories: GSK CNC system SIEMENS CNC system Hydraulic hollow chuck Heat exchanger Special fixture Tool setter Bar feeder
PRODUCT SPECIFICATIONS
Specification | Unit | AK-10 | AK-15 | AK-25 | AK-35 | AK-45 |
Max.swing over bed | mm | 400 | 440 | 520 | 660 | 850 |
Max. turning diameter | mm | 300 | 300 | 420 | 550 | 800 |
Max. length of workpiece | mm | 600/850/100 | 600 | 625/1000/1500/2000/3000 | 890/1640/2000/3000 | 1500/2000/3000 |
Max. turning length | mm | 500/700/950 | 450 | 530/905/1405/1905/2905 | 780/1530/1890/2890 | 1420/1920/2920 |
Cross travel (X) | mm | 210 | 180 | 230 | 305 | 450 |
Longitudinal travel (Z) | mm | 530/710/1050 | 480 | 590/965/1465/1965/2965 | 855/1605/1965/2965 | 1450/1950/2950 |
X-axis rapid feed speed | m/min | 12 | 20 | 12 | 12 | 12 |
Z-axis rapid feed speed | m/min | 15 | 24 | 15 | 15 | 15 |
X/Z-axis feed speed | mm/min | 1260 | 1260 | 1260 | 1260 | 1260 |
Spindle speed range | rpm | 45-4500 | 50-4500 | 35-3500 | 25-2500 | 10-2000 |
Spindle nose | - | A2-5 | A2-6 | A2-8 | A2-8 | A2-11 |
Spindle bore | mm | 50 | 62 | 87 | 92 | 131 |
Hydraulic chuck size | inch | 6" | 8" | 10" | 12" | 15"/18" |
Front bearing inner diameter | mm | 80 | 100 | 130 | 160 | 200/240 |
Tool post type | - | H8 | H8 | H12 | H12 | H12 |
Tool section size (turning) | mm | 25x25 | 25x25 | 25x25 | 25x25 | 25x25 |
Tool section size (boring) | mm | 32 | 40 | 40 | 50 | 60 |
Tool change time | sec | 0.4 | 0.72 | 0.3 | 1 | 1 |
Tailstock travel | mm | 530/730/980 | 460 | 490/865/1365/1865/2865 | 706/1456/1816/2816 | 1400/1900/2900 |
Tailstock quill diameter | mm | 80 | 80 | 85 | 110 | 140 |
Tailstock quill taper | - | MT4 | MT4 | MT5 | MT5 | MT6 |
Tailstock quill travel | mm | 80 | 130 | 80 | 100 | 130 |
Main motor power | kw | 7.5 | 11 | 15/18.5 | 22/30 | 100 |
Total power | kw | 17 | 25 | 30 | 46 | 130 |
Working accuracy | mm | IT6 | IT6 | IT6 | IT6 | IT6 |
Roughness | µm | Ra0.8 | Ra0.8 | Ra0.8 | Ra0.8 | Ra0.8 |
Bed structure | - | 45° | 45° | 45° | 45° | 45° |
CNC system | - | FANUC or SIEMENS | FANUC or SIEMENS | FANUC or SIEMENS | FANUC or SIEMENS | FANUC or SIEMENS |
Machine length | mm | 2875/3415/3440 | 2270 | 3000/3380/4550/4960/6160 | 3620/4725/5825/7000 | 6360/6860/7860 |
Machine width & height | mm | 1500x1500 | 1470x1470 | 1545x1950 | 1820x2130 | 2350x2600 |
Machine weight | tons | 3.5/4/4.5 | 4.5 | 5/5.5/6.5/7.5/8.5 | 8/10/11.5/15.5 | 15/16/18 |
