7000mm Max. Turned Length 40Ton Load CNC Heavy Duty Horizontal Roller Turning Lathe Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC, TIMEWAY |
| Model Number: | AK-1600SRx7000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $149,999.00/sets >=1 sets |
| Packaging Details: | wooden case or plate |
| Supply Ability: | 50 Set/Sets per Year |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 7000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 40000 | Width Of Bed (mm): | 1600 Mm |
| Spindle Motor Power(kW): | 75 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 800 Mm |
| Travel (Z Axis)(mm): | 7000 Mm | Positioning Accuracy (mm): | ±0.03 |
| Repeatability (X/Y/Z) (mm): | ±0.03 | Dimension(L*W*H): | 11000x3000x3200mm |
| Voltage: | 220V/380V/400V/415V/440V | CNC Control System: | GSK |
| Tool Post Stations: | Special Use Tool Post | Weight (KG): | 55500 |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| Automatic Grade: | Automatic | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Max. Diameter Of Roller: | 1250mm | Max. Length Of Workpiece: | 7000mm Or As Required |
| Max. Swing Diameter: | 1600mm | Rapid Speed Of Tailstock: | 2000mm/min |
| Spindle Diameter: | 300mm | Max. Cutting Force Of Tool Post: | 25KN |
| Total Power: | 100KVA | Condition: | New |
| Spindle Bore(mm): | 80 | Toolpost Brand: | Other |
| Applicable Industries: | Machinery Repair Shops, Food & Beverage Factory, Energy & Mining | Showroom Location: | Canada, United Kingdom, United States, Italy, France, Germany, Brazil, Peru, Pakistan, Mexico, Russia, Chile, UAE, Algeria, Uzbekistan, Australia |
| Max. Spindle Speed (r.p.m): | 80 R.p.m | Max. Turned Length (mm): | 7000 |
| Marketing Type: | Special Use Machine Tool | Core Components: | Bearing, Motor, Pump, Gear, Pressure Vessel, Gearbox, GSK-980TDc |
| Port: | China Ports | ||
Product Description
Products Description

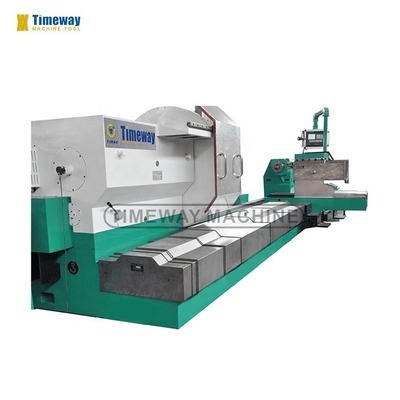

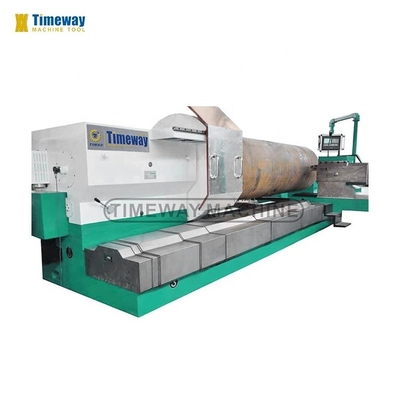

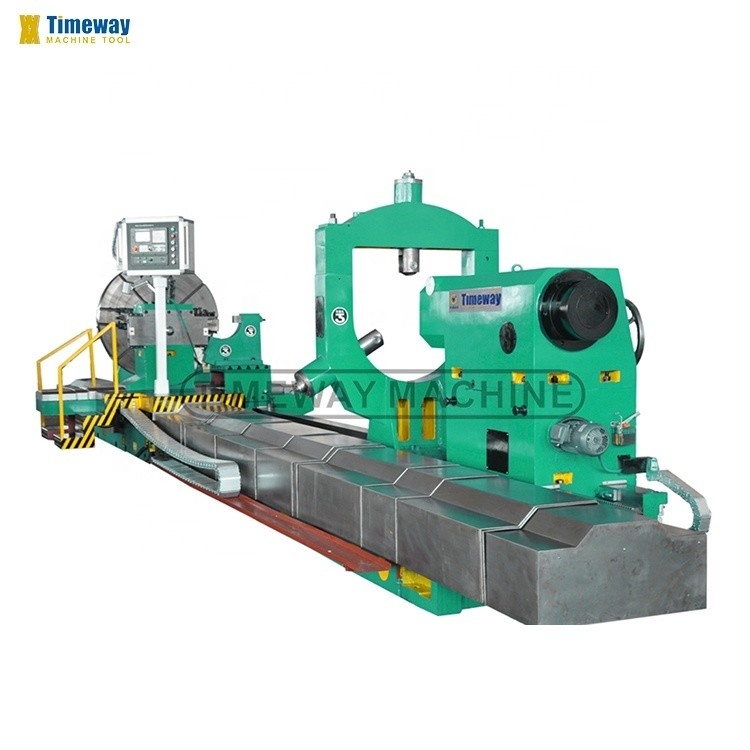

horizontal heavy duty lathe（roll turning machine）
Features:
1. The heavy duty lathe machine is suitable for machining different material shafts, cylinder and rollers, can be able to turning the cylindrical, conical surface, hook face, inner bore, end face, and groove cutting, etc.
2. Adopt high rigidity HT250 Meehannite cast iron, the whole machine has excellent rigidity, stability, precision retaining ability, which is much suitable for heavy cutting.
3. Fixed structure and widen rectangular guide ways ensure the resistance and stability when heavy cutting.

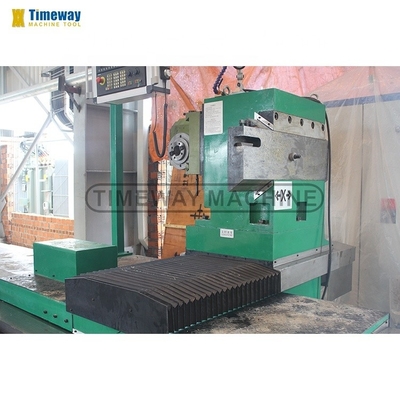

4. The tool post adopts frame reinforced structure, has big loading capacity.
1. The heavy duty lathe machine is suitable for machining different material shafts, cylinder and rollers, can be able to turning the cylindrical, conical surface, hook face, inner bore, end face, and groove cutting, etc.
2. Adopt high rigidity HT250 Meehannite cast iron, the whole machine has excellent rigidity, stability, precision retaining ability, which is much suitable for heavy cutting.
3. Fixed structure and widen rectangular guide ways ensure the resistance and stability when heavy cutting.
4. The tool post adopts frame reinforced structure, has big loading capacity.
Specification | Unit | AK-1600SR/7000 |
Max. swing over bed | mm | 1600 |
Max. swing over cross slide | mm | 1250 |
Max. working length of workpiece | mm | 7000 |
Max. weight of workpiece | kg | 40,000 |
Length of machine bed | mm | 9500 |
Width of machine bed | mm | 1600 |

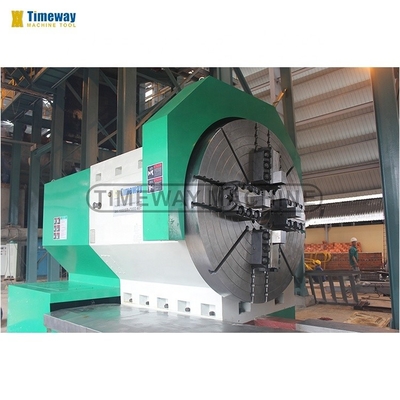

Diameter of face plate | mm | 1600 |
Max. torque of face plate | KN.m | 40 |
Max. cutting force of tool post | KN | 25 |
Center angle | ° | 75 |
Spindle diameter | mm | 300 |
Spindle speed steps | / | stepless |
Spindle speed range | rom | 2~80 |
Machine weight | kg | 55,500 |
Floor space (LxW) | mm | 11000x3000 |
Re-positioning accuracy | mm | 0.03/300 |
Cylindrical surface roughness | μm | <Ra3.2 |

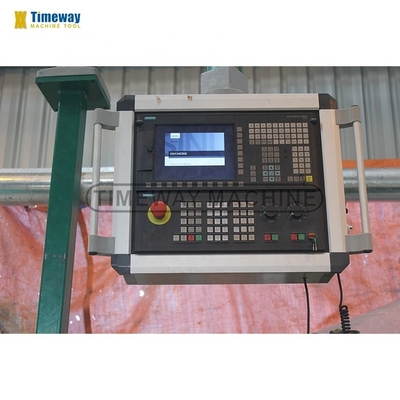

1. GSK-980TDc CNC system 2. 8.4' color screen display 3. 75° center, precision bearings 4. Hanging control button station and service bench 5. Circulating cooling device 6. Protective cover for X, Z axis guideways 7. Closed steady rest 8. Open steady rest 9. Servo motors with cable 15m and drag chain 10. Auto. lubrication system 11. Separated wire control type handwheel 12. Auto. power-off protective device 13. Electric control cabinet 14. Work lamp, general tools 15. Foundation bolts 16. Operation and maintenance manual |
