30kW Spindle Motor Power Multi-Functions CNC Flat-bed Lathe for Long Workpiece 9800mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | AK-1250x10M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $300,000.00/sets >=1 sets |
| Packaging Details: | wooden case or plywood case |
| Supply Ability: | 5 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 10000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 16000 Or 20000 | Width Of Bed (mm): | 1100 Mm |
| Spindle Motor Power(kW): | 30 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 850 Mm |
| Travel (Z Axis)(mm): | 10000 Mm | Positioning Accuracy (mm): | ±0.025 |
| Repeatability (X/Y/Z) (mm): | ±0.012 | Dimension(L*W*H): | 13400x3200x2220mm |
| Voltage: | 220V/380V/400V/415V/440V | CNC Control System: | SIEMENS 828D |
| Tool Post Stations: | 4 | Weight (KG): | 30400 |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 2 Years | Color: | Customized Option |
| Workpiece Length: | 10000mm | Machine Type: | Horizontal CNC Lathe |
| Max. Swing Over Carriage: | 900mm | 4-jaw Chuck Size: | 1250mm |
| Spindle Speed: | 3-320rpm (stepless) | Spindle Taper: | 140mm, 1:20 |
| Turret Size: | 380x380mm | Tool Section Size: | 50x50mm |
| Tailstock Quill Diameter: | 260mm | Condition: | New |
| Spindle Bore(mm): | 100 | Toolpost Brand: | Yantai Huanqiu |
| Applicable Industries: | Machinery Repair Shops, Food & Beverage Factory, Printing Shops, Energy & Mining | Showroom Location: | Canada, United Kingdom, United States, Italy, France, Germany, Brazil, Mexico, Russia, Spain, Chile, Uzbekistan, Australia |
| Year: | Latest Day | Max. Spindle Speed (r.p.m): | 320 R.p.m |
| Max. Turned Length (mm): | 9800 | Marketing Type: | Heavy Duty Equipment |
| Core Components: | SIEMENS CNC Sysem | Port: | China Port |
Product Description

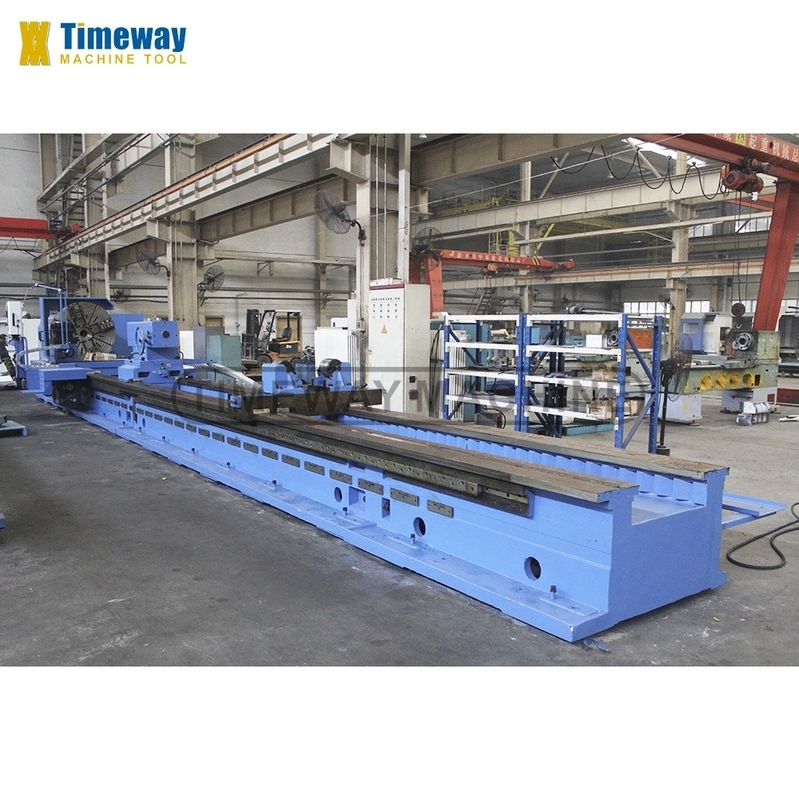

Heavy Duty Horizontal CNC Lathe
Products Description
√ FANUC/GSK/SIEMENS CNC system √ 4-jaw chuck √ 4-station electric tool-post √ Work lamp √ Cooling system √ Manual pulse generator (MPG) √ Dead centers √ Oil gun √ Pilot lamp √ Automatic lubrication pump √ Manual moving tailstock √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | _ Steady rest _ Follow rest _ Semi-closed guard _ 6/8-station tool-post _ Live centers _ Air conditioner _ Chip conveyor |
Specification | Unit | AK-1250 | AK-1600 | |
Max. swing over bed | mm | 1250 | 1600 | |
Max.. swing over cross slide | mm | 900 | 1250 | |
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/- | ||
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800/- | ||
Bed width | mm | 1100 | 1100 | |
Chuck size (4-jaw) | mm | 1250 | 1400 | |
Loading capacity | tons | 16 (opt: 20) | 16 (opt: 20) | |
Spindle bore | mm | 100 | 100 | |
Cross travel (X) | mm | 850 | 850 | |
Main motor power | kw | 30 | 30 | |
Machine weight | kg | 15000/17200/19400/21560/26000/30400/34800/- | ||
Machine length | mm | 6400/7400/8400/9400/11400/13400/15400/- | ||
Machine width | mm | 3200 | 3200 | |
Machine height | mm | 2220 | 2750 | |

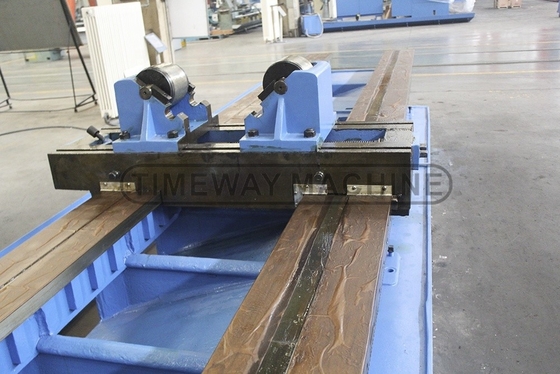

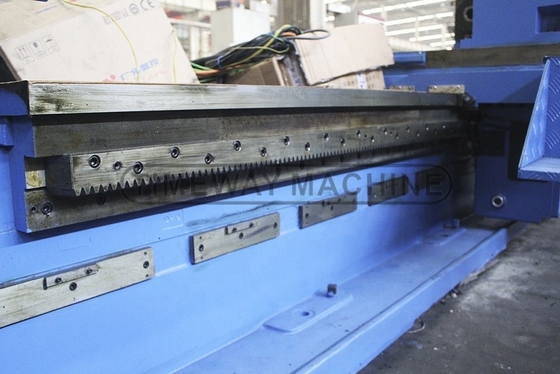

Machine Details
Chuck：

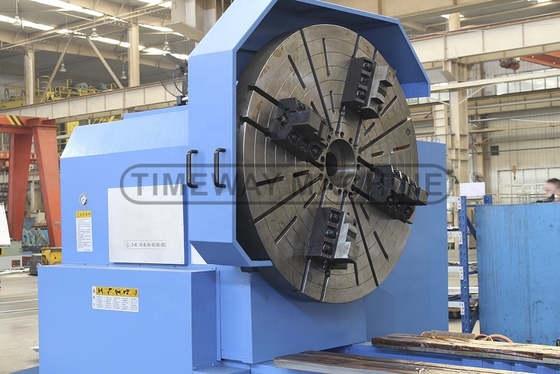

- Standard 4-jaw independent chuck to clamping special-shape parts.
4-stations electric turret:
- Adopt famous brand electric turret, high positioning accuracy.

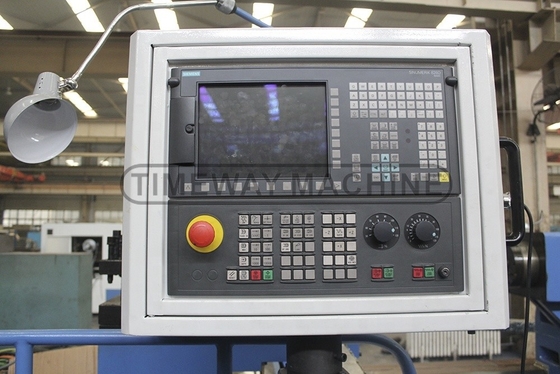

CNC system:
SIEMENS, FANUC, MITSUBISHI, FAGOR, KND, HNC, GSK, etc. for you choice.

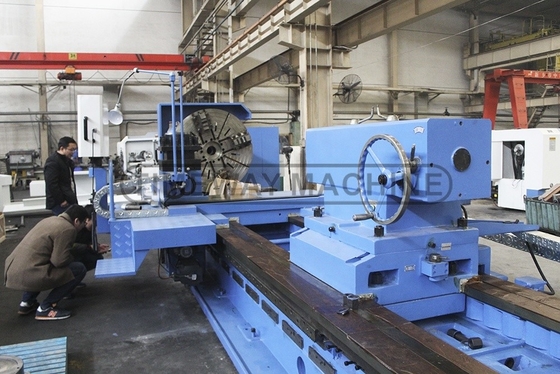

Electric moving tailstock:
Flexible and simple operation, to reduce labor intensity and increase operating pleasure.
CE-norm electric cabinet:
Clear and neat electric layout;
Adopt CE standard electric components.
Automatic lubrication pump:
Automatically and intermittently lubricate each guide rails to extend the service life of the machine.
4-stations vertical turret:
Standard
6-stations vertical turret:
Optional
6-stations horizontal turret:
Optional
Test - roundness & cylindricity:
Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm
Test - verticality:
Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm
Test - roughness:
Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
Threads turning test:
Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
Comprehensive testing parts:
All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
