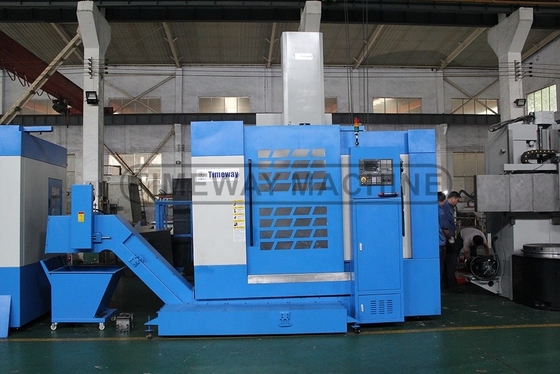

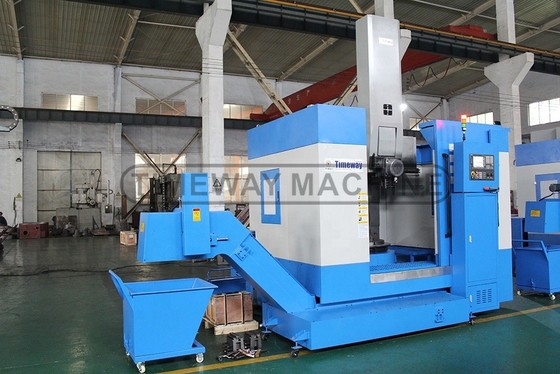

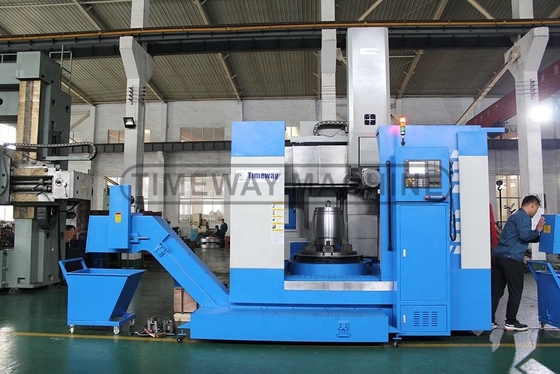

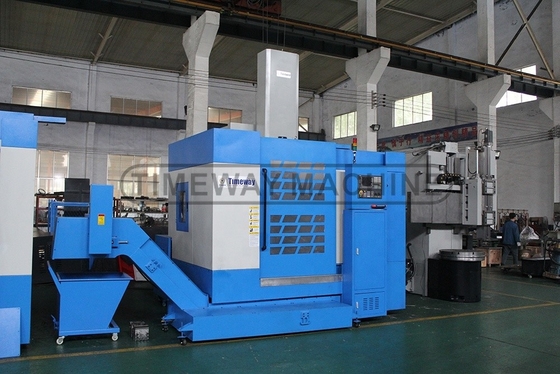

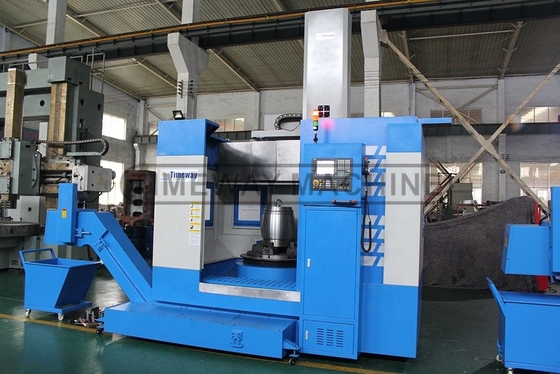

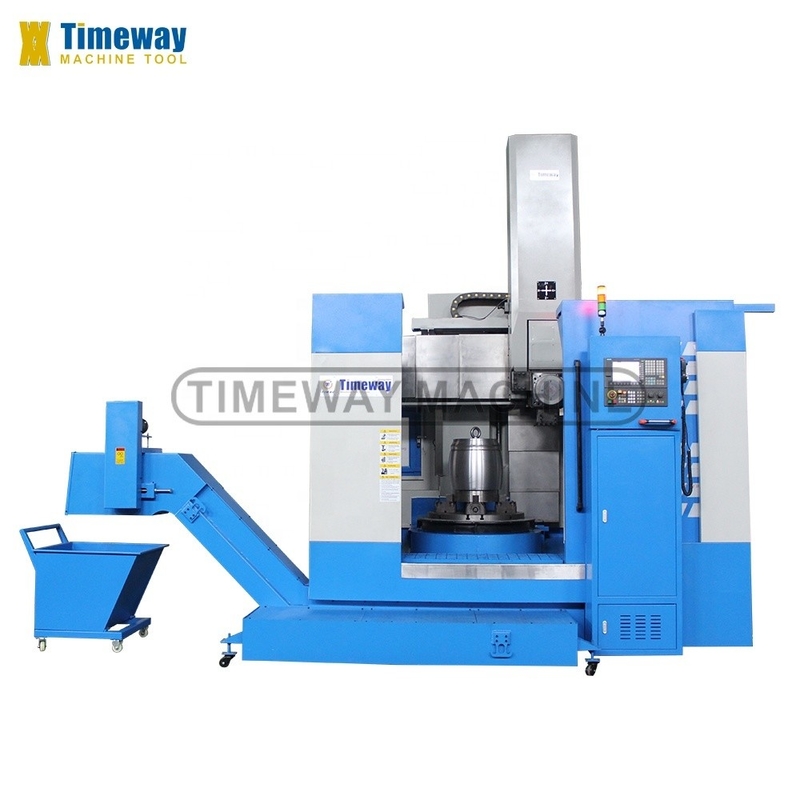

800mm Worktable and 1070mm Bed Width CNC Vertical Lathe for Boring Big Hole Machining
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | VLK800E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $50,000.00/sets 1-2 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Max. Length Of Workpiece (mm): | 800 |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Max. Weight Of Workpiece(kg): | 2000 |
| Width Of Bed (mm): | 1070 Mm | Spindle Motor Power(kW): | 22 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 570 Mm | Travel (Z Axis)(mm): | 650 Mm |
| Positioning Accuracy (mm): | ±0.01 | Repeatability (X/Y/Z) (mm): | ±0.008 |
| Dimension(L*W*H): | 4300x2380x4290mm | Voltage: | 220V-480V |
| CNC Control System: | Siemens | Tool Post Stations: | 4 |
| Weight (KG): | 8500 | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 2 Years |
| Max. Swing Diameter: | 950mm | Max. Turning Diameter: | 800mm |
| Max. Weight Height: | 800mm | Spindle Speed Steps: | 2steps, Stepless In Step |
| Spindle Speed Ranges: | 2-320rpm | Worktable Size: | 800mm |
| Loading Capacity: | 2000kg | X/Z-axis Feed Speed: | 0.1-500mm/min |
| X/Z-axis Rapid Feed Speed: | 2000mm/min | Max.length Of Workpiece: | 800mm |
| Condition: | New | Toolpost Brand: | Yantai China |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Canada, United States, Italy, France, Germany, Brazil, Peru, Mexico, Russia, Spain, Chile, Colombia, Algeria, Romania, Uzbekistan, Australia |
| Marketing Type: | Ordinary Product | Year: | 2021 |
| Max. Spindle Speed (r.p.m): | 320 R.p.m | Spindle Bore(mm): | 150 |
| Max. Turned Length (mm): | 800 | Core Components: | Bearing, Motor, Gear, Other, Gearbox, SIEMENS 828D |
| Port: | China Ports | ||
Product Description
CNC vertical lathe
Products Description
Automatic lubrication system, Full closed guard, air conditioner, Oil cooler | SIEMENS 828D, FANUC 0i-TF, special fixture |
Specifications | Unit | VLK800E | VLK1250E | VLK1600E | VLK2000E | |||
Max. swing diameter | mm | 950 | 1250 | 1600 | 2000 | |||
Max. turning diameter | mm | 800 | 1250 | 1600 | 2000 | |||
Max. height of workpiece | mm | 800 | 1000 | 1000 | 1250 | |||
Max. weight of workpiece | kg | 2000 | 5000 | 8000 | 12000 | |||
Main motor power | kw | 22 | 22 | 30 | 37 | |||
Worktable diameter | mm | 800 | 1010 | 1400 | 1800 | |||
Max. torque of worktable | KN.m | 10 | 17.5 | 25 | 32 | |||
Worktable speed range | rpm | 2-320 | 1.25-200 | 1-160 | 4-125 | |||
Number of tool station | pcs | 4 | 4 | 4 | 4 | |||
Tool shank section of external turning tool | mm | 32x40 | 32x40 | 32x40 | 32x40 | |||
Drive type | - | Electric | Electric | Electric | Electric | |||
X-axis ball screw size (dia. x screw pitch) | mm | 50x10 | 50x10 | 50x10 | 50x10 | |||
Z-axis ball screw size (dia. x screw pitch) | mm | 50x10 | 50x10 | 50x10 | 50x10 | |||
X-axis travel | mm | -20~550 | -20~800 | -20~1030 | -20~1150 | |||
Z-axis travel | mm | 650 | 650 | 800 | 800 | |||
Feed range(X/Z) | mm | 0.1-500 | 0.1-500 | 0.1-500 | 0.1-500 | |||
Rapid feed speed | mm/min | 2000 | 2000 | 2000 | 2000 | |||
CNC system | - | SIEMENS 808D | SIEMENS 808D | SIEMENS 808D | SIEMENS 808D | |||
Servo motor torque(X/Z) | N.m | 11/11 | 11/11 | 15/11 | 15/11 | |||
Power capacity | Kva | 30 | 37 | 45 | 52 | |||
Machine net weight | kg | 8500 | 11000 | 14500 | 18500 | |||
Machine dimension (LxWxH) | cm | 430x238x429 | 478x257x440 | 563x301x466 | 580x368x494 | |||
Chip conveyor | - | Chain type | Chain type | Chain type | Chain type | |||
Standard | - | Automatic lubrication system, Full closed guard, air conditioner, Oil cooler | ||||||
Optional | - | SIEMENS 828D, FANUC 0i-TF, special fixture | ||||||
Machine Details
1. The series CNC single column vertical lathe is designed by absorbing modern advanced design and manufacturing techniques and using CAD optimization design method, using the latest design concept and equipping with domestic and foreign advanced features. 2. Realize strong cutting on the structure performance, the worktable overweight load, machine high dynamic and static stiffness, all movement safety and stability, long service life and high processing efficiency. 3. The machine is suitable for high speed steel and carbide cutting tools, processing workpieces of all ferrous and non-ferrous metals and some nonmetal materials. 4. The machine can complete the process of rough and finish turning inside and outside cylinder, inside and outside cone surface, plane surface, the circular arc surface and grooving. 5. The machine is mainly composed of column, worktable, beam, vertical tool post, main drive gearbox, beam lifting mechanism, vertical tool post feeding mechanism, beam guide protection device, complete machine full enclosure, electrical system, hydraulic system, cooling system, etc.
===================================
>> Worktable uses integrated, highrigidity, high precision and short fixed-type spindle structure, the spindle is equipped with a set high precision thrust ball bearing and a set double row short cylindrical roller bearing. Compact structure, at the same time bear radial load, the axial load and tilting moment, and under the overloading elastic deformation is small, improved the precision of the rotation of the worktable and carrying capacity.
===================================
>> Four station electrical tool-post: high positioning accuracy, large clamping force, large loading capacity, stable and reliable. The unique dovetail cutter holder, more accurate positioning, greater clamping force.
===================================
>> Customers can choose FANUC, SIEMENS, or KND, other CNC systems.
===================================
>> According to special requirements, the whole machine cover, chip conveyor。
Test - roundness & cylindricity:
Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm
Test - verticality:
Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm
Test - roughness:
Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
Threads turning test:
Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
Comprehensive testing parts (only for CNC lathe):
All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
