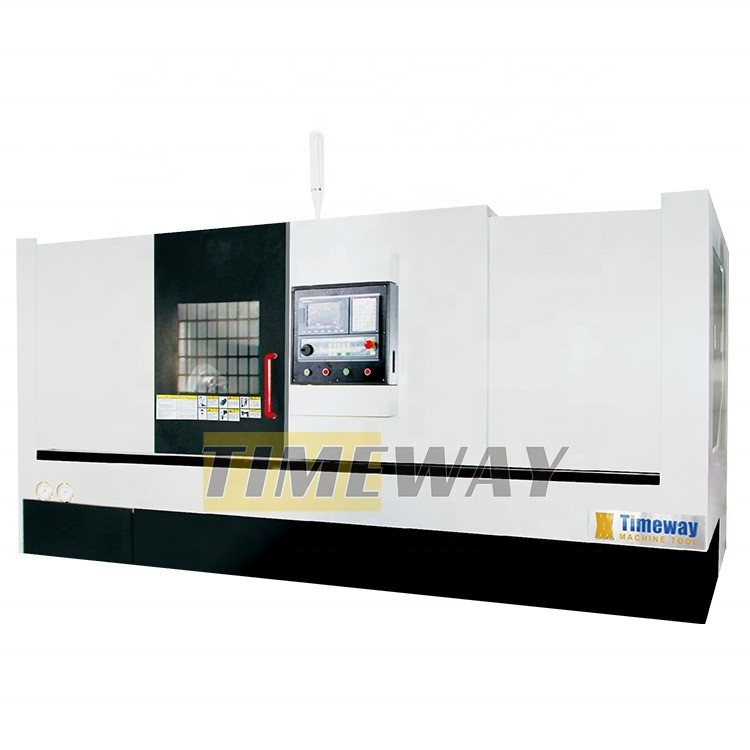

400 Cross Travel Slant Bed CNC Lathe Machine CK-63 for Customer's Requirement Voltage
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | CK-63 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $56,000.00/sets >=1 sets |
| Packaging Details: | in pallet/plywood case |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal, CNC | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 600 Mm | Spindle Motor Power(kW): | 22 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 400 Mm | Travel (Z Axis)(mm): | 3200 Mm |
| Dimension(L*W*H): | 2700*1730*1900mm | Voltage: | Customer's Requirement |
| CNC Control System: | FANUC | Tool Post Stations: | 8 |
| Weight (KG): | 7300 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Swing Over Bed: | 660mm | Max.swing Over Cross Slide: | 500mm |
| Max.turning Length: | 3000mm | Spindle Bore: | 112mm |
| Cross Travel (X): | 400 | Longitudinal Travel(Z): | 3200mm |
| Spindle Speed: | 1500rpm | Warranty Period: | 1 Year |
| Condition: | New | Applicable Industries: | Building Material Shops, Machinery Repair Shops |
| Showroom Location: | Turkey, Italy, Brazil, Peru, Indonesia, Mexico, Russia, Argentina | Marketing Type: | Ordinary Product |
| Core Components: | Bearing, Motor, PLC, Other, Gearbox | Max. Spindle Speed (r.p.m): | 1500 R.p.m |
| Spindle Bore(mm): | 112 | Max. Turned Length (mm): | 3000 |
| Port: | China Port | ||
Product Description
Product Description

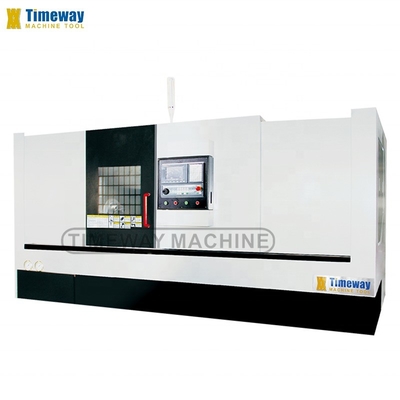

slant bed CNC lathe
Specification
Specification | Unit | CK-63 |
Max.Swing over bed | mm | 660 |
Swing over over cross slide | mm | 500 |
Standard turning diameter | mm | 380 |
Max.turning diameter | mm | 550 |
Max.turning length | mm | 750/1500/3000 |
Max.diameter of bar | mm | 90 |
Spindle speed | rpm | 1500 |
Spindle nose | - | A2-11 |
Spindle bore | - | 112 |
Chuck size | mm | 380 |
Cross travel (X) | mm | 400 |
Longitudinal travel(Z) | mm | 860/1640/3200 |
X/Z-axis Rapid feed speed | m/min | 12/16(slinding:12/12) |
Hyraulic tool post type | - | 125-12T |
Tool section size | mm | 25X25/φ40 |
Tailstock quill diameter | mm | 150 |
Tailstock quill travel | mm | 150 |
Tailstock quill travel taper | - | MT5,rotary |
Bed structure | - | 30°integral bed |
Guideway type | - | Linear/sliding |
Working accuracy | mm | IT6 |
X-axis repositioning accuracy | mm | 0.008 |
Z-axis repositioning accuracy | mm | 0.01/0.013 |
Roughness | um | Ra1.6 |
Power motor power | kw | 22 |
Power supply | kva | 50 |
Machine dimensions(LxWxH) | mm | 3800/4400/5900x2200x2200 |
Machine weight | kg | 5800/6500/7800 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
