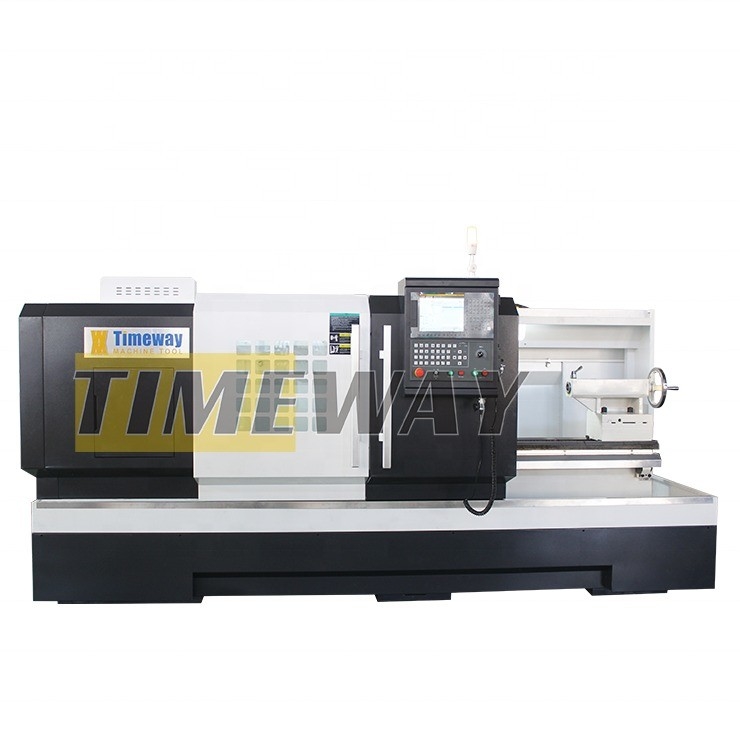

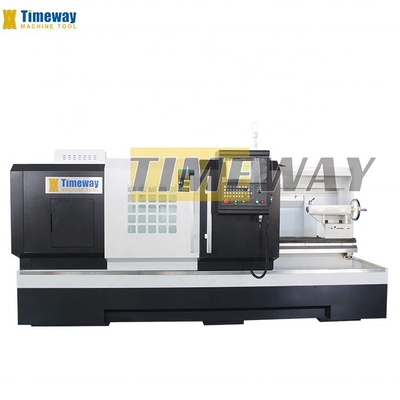

2630x1400x1550mm High Precision Flat Bed CNC Turning Lathe with 4 Tool Post Stations
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | CK-400/CK-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-2 sets |
| Packaging Details: | wooden case or plywood case |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 1000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Light Duty |
| Width Of Bed (mm): | 405 Mm | Spindle Motor Power(kW): | 5.5 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 290 Mm | Travel (Z Axis)(mm): | 920 Mm |
| Dimension(L*W*H): | 2630x1400x1550mm | Voltage: | As Customers' Request |

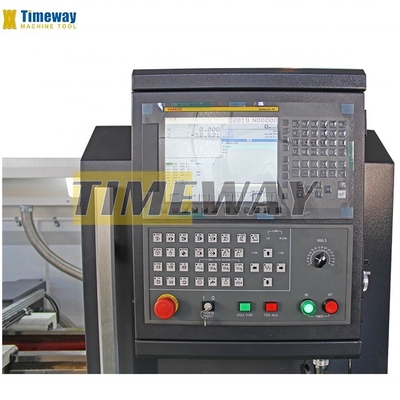

| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 2700 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Automatic Grade: | Automatic |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | High Precision CNC Lathe: | Flat Bed Type CNC Lathe |
| Max. Swing Diameter: | 400mm | Weight: | 2700kg |
| Power(W): | 5.5KW | Max.swing Over Bed: | 400mm |
| Max.turing Length: | 750mm | Spindle Nose: | A2-6 |
| Condition: | New | Toolpost Brand: | Hongda |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Italy, Brazil, India |
| Marketing Type: | Hot Product 2019 | Core Components: | Bearing |
| Max. Turned Length (mm): | 900 | Max. Spindle Speed (r.p.m): | 2800 R.p.m |
| Spindle Bore(mm): | 56 | Port: | China Port |
Product Description
Products Description
Features:
1. Longitudinal and cross feeds are effected by ball leadscrews. Driven by servo motors.

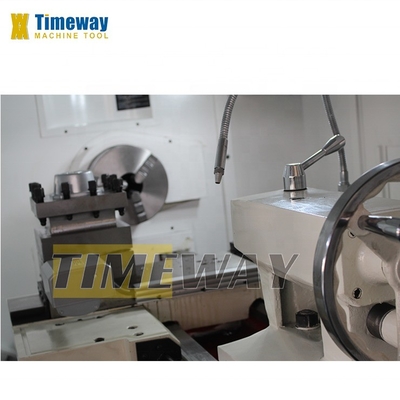

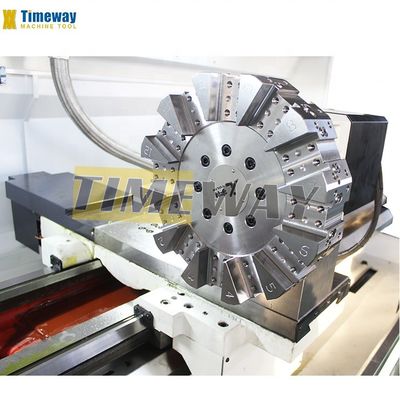

2. Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected. The post is located on precision contrite gears with a high repeated positioning accuracy.

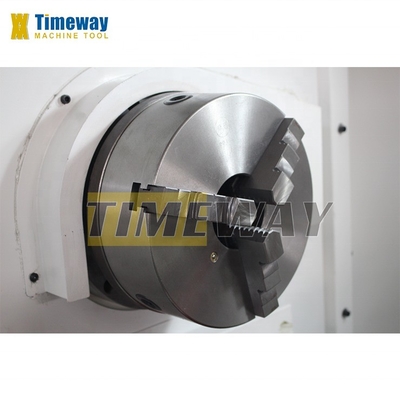

3. Both chuck and tailstock are supplied with hydraulic or manual type.
4. The spindle system is high in the rigidity and accuracy.
1. Longitudinal and cross feeds are effected by ball leadscrews. Driven by servo motors.
2. Either vertical or horizontal 4-station or 6-station tool post or gang tools can be selected. The post is located on precision contrite gears with a high repeated positioning accuracy.
3. Both chuck and tailstock are supplied with hydraulic or manual type.
4. The spindle system is high in the rigidity and accuracy.
Specification | CK-400 | CK-500 | |
Max. swing over bed | Ø400mm | Ø500mm | |
Max. swing over carriage | Ø210mm | Ø290mm | |
Width of bed | 405mm | 405mm | |
Maximum turned length | 1000mm | 1000mm/1500mm | |
Max. turning length | 900mm | 900mm | |
Spindle nose | A2—6 | D8 | |
Spindle bore | Ø56mm | Ø80mm | |
Cone hole diameter and taper of spindle hole | MT.No6 | MT.No7 | |
Steps of spindle speed(Manual) | Variable | 3(variable within each step) | |
Range of spindle speed | 450~2800 r/min | 40~165,160~660,660~2000r/min | |
Rapid feed for Axis Z | 10m/min | ||
Rapid feed for Axis X | 8 m/min | ||
Max. travel of Axis Z | 920mm | ||
Max. travel of Axis X | 290mm | 310mm | |
Min. input | 0.001 mm | ||
Tool post stations | 4-ways | ||
Tool cross section | 25×25 mm | 32×32 mm | |
External diameter | Ø75mm | ||
Taper of bore | MT.No.5 | ||
Max. Traverse | 150mm | ||
X/Z motor torque | 4.7/7Nm | 7/9.5Nm | |
Power of main motor | 5.5 KW | 7.5 KW | |
Power of cooling pump | 90W | ||
Overall dimensions(L×W×H) | 2630×1400×1550mm | 2530×1400×1600mm | |
Net weight | 2700kg | 2850kg | |
· 3 jaw chuck · 4 jaw chuck · Dead center · Face plate · Steady rest · Follow rest · Reduction sleeve · Oil gun · Coolant system · Working light · Chasing dial indicator | · Quick change tool post · 2/3 axis DRO · Living center · Taper turning attachment · Chuck guard · Leadscrew guard · Tool post guard |
