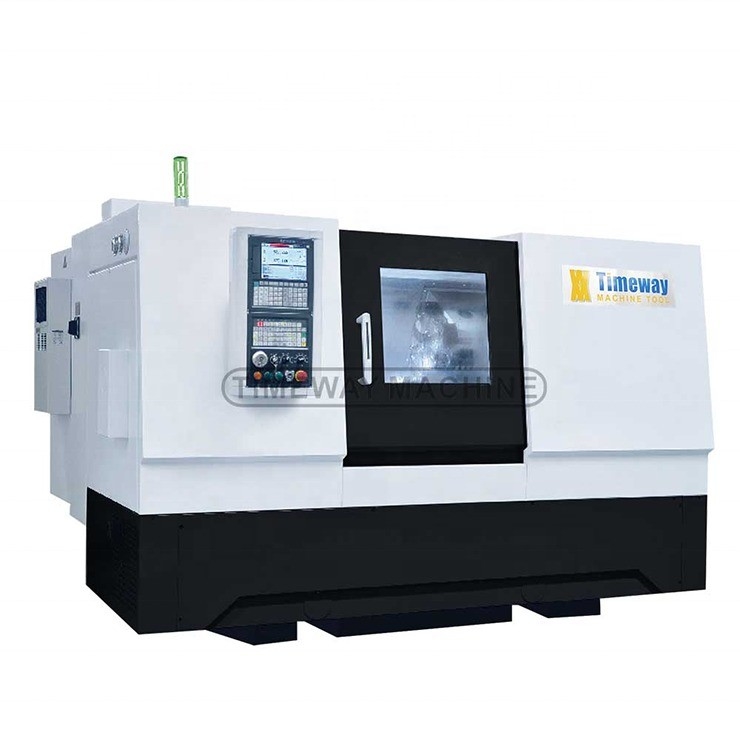

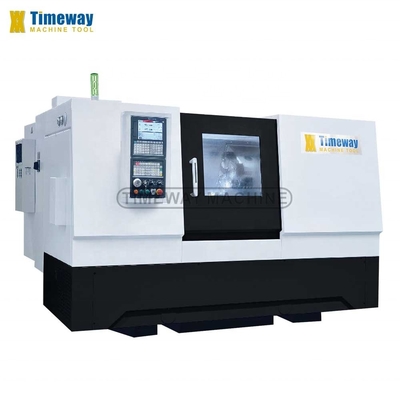

Medium Duty Machining Capacity CNC Slant-type Lathe Machine with A2-5 Spindle Nose
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | CK4035 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,000.00/sets 1-2 sets |
| Packaging Details: | Wooden case, can be fumigated |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 320 | Range Of Spindle Speed(r.p.m): | 50 - 3500 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 420 |
| Type: | VERTICAL | Spindle Motor Power(kW): | 7.5 |
| Voltage: | 220/380v | Dimension(L*W*H): | 2600x1800x1600mm |
| Weight (KG): | 2700 KG | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Swing Over Cross Slide: | 220mm |
| Standard Turning Diameter: | 210mm | Spindle Nose: | A2-5 |
| Hydraulic Chuck Size: | 160mm | Cross Travel (X): | 210mm |
| Longitudinal Travel (Z): | 450mm | X/Z-axis Rapid Feed Speed: | 20/12 M/min |
| After-sales Service Provided: | Online Support | Tailstock Quill Travel: | 50mm |
| Tailstock Quill Taper: | MT4 | Condition: | New |
| Spindle Bore(mm): | 56 | Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops |
| Showroom Location: | Canada, United States, Italy, Germany, Mexico, Spain, South Africa, Australia | Core Components: | Motor, Engine |
| Max. Turned Length (mm): | 320 Mm | Port: | China Port |
Product Description
Products Description
Specifications | Unit | CK4035 | CK3650 | CK4575 |
Max. swing over bed | mm | 420 | 550 | 500 |
Max. swing over cross slide | mm | 220 | 220 | 220 |
Standard turning diameter | mm | 210 | 210 | 210 |
Max. turning diameter | mm | 320 | 360 | 360 |
Max. turning length | mm | 320 | 500 | 750 |
Spindle speed | rpm | 50-3500 | 50-3000 | 2500 |
Spindle nose | - | A2-5 | A2-6 | A2-6 |
Spindle bore | mm | 56 | 62 | 66 |
Hydraulic chuck size | mm | 160 | 200 | 200 |
Cross travel (X) | mm | 210 | 230 | 220 |
Longitudinal travel (Z) | mm | 450 | 600 | 850 |
X/Z-axis rapid feed speed | m/min | 20/12 | 24/24 | 20/20 |
Hydraulic cool post type | - | 80-8T | 80-8T | 80-8T |
Tool section size | mm | 25x25/Φ32 | 25x25/Φ32 | 25x25/Φ32 |
Tailstock quill diameter | mm | 52 | 110 | 110 |
Tailstock quill travel | mm | 50 | 100 | 100 |
Tailstock quill taper | - | MT4 | MT5 | MT4 |

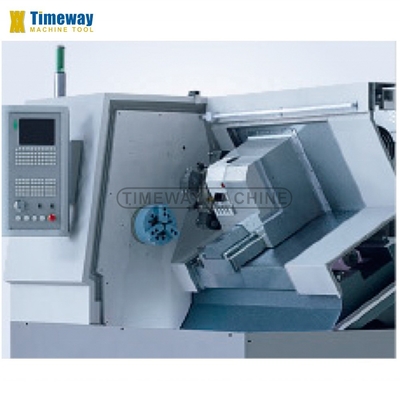

Bed structure | - | 45° Integral bed | 45° Integral bed | 45° Integral bed |

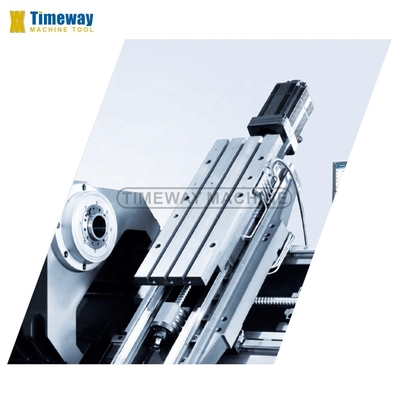

Guideway type | - | Linear/Sliding | Linear/Sliding | Linear/Sliding |
Main motor power | kw | 7.5 | 11 | 7.5 |
Power supply | kva | 30 | 25 | 30 |
Machine dimensions (LxWxH) | mm | 2600x1800x1600 | 2900x1800x1750 | 2900x1800x1600 |
Machine weight | kg | 2700 | 3200 | 3200 |
Standard accessories:
GSK 980TDI,
8-station hydraulic tool post,

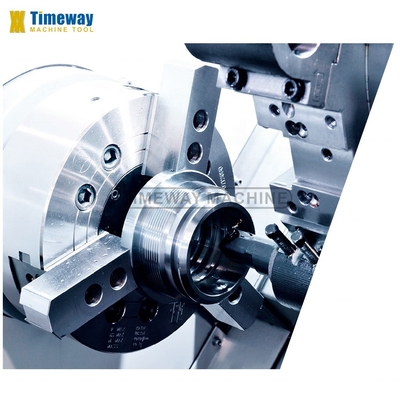

Hydraulic chuck,
Electronic handwheel,
Lubrication system,
Cooling system,
Work lamp,
Protection guard,
Protection guard,
Leveling blocks & bolts,
Tools & tool-box,
Operation manuals.
Optional accessories:
FANUC CNC system,
SIEMENS CNC system,
Pilot lamp,
Air conditioner,
Heat exchanger,
8-station servo tool post,
Hydraulic hollow chuck,
Special fixture,
Tool setter,
Bar feeder,
Hydraulic tailstock,
Chain type chip conveyor.
