High Productivity Flat Bed Lathe with X/Z-axis Rapid Traverse Rate of 6/12m/min
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | CK400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $45,000.00/sets 1-2 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal, Horizontal Flat Bed Cnc Lathe | Max. Length Of Workpiece (mm): | 1850 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 400 Mm | Spindle Motor Power(kW): | 7.5 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 275 Mm | Travel (Z Axis)(mm): | 650 Mm |
| Positioning Accuracy (mm): | 0.01 | Repeatability (X/Y/Z) (mm): | 0.005 |
| Dimension(L*W*H): | As Model | Voltage: | 220/380V |
| CNC Control System: | FANUC | Tool Post Stations: | 6, 4 |
| Weight (KG): | 2200 | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Workpiece Length: | 1850mm |
| Spindle Bore: | 77mm | Length: | 750, 1000, 1500, 2000mm |
| Max. Swing Diameter: | 400/500mm | Max.quill Travel: | 150mm |
| Tailstock Cross Movement: | ±15mm | Tool Section: | 25x25mm |
| X/Z-axis Rapid Traverse Rate: | 6/12m/min | Condition: | New |
| Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction Works , Energy & Mining, Food & Beverage Shops, Advertising C | Showroom Location: | Canada, United States, Italy, Germany, Mexico, Russia, Spain, South Africa, Australia |
| Marketing Type: | Ordinary Product | Core Components: | Bearing, Motor, Pump, Gear |
| Max. Spindle Speed (r.p.m): | 1620 R.p.m | Spindle Bore(mm): | 77 |
| Max. Turned Length (mm): | 1750 | Port: | China Port |
Product Description
Products Description

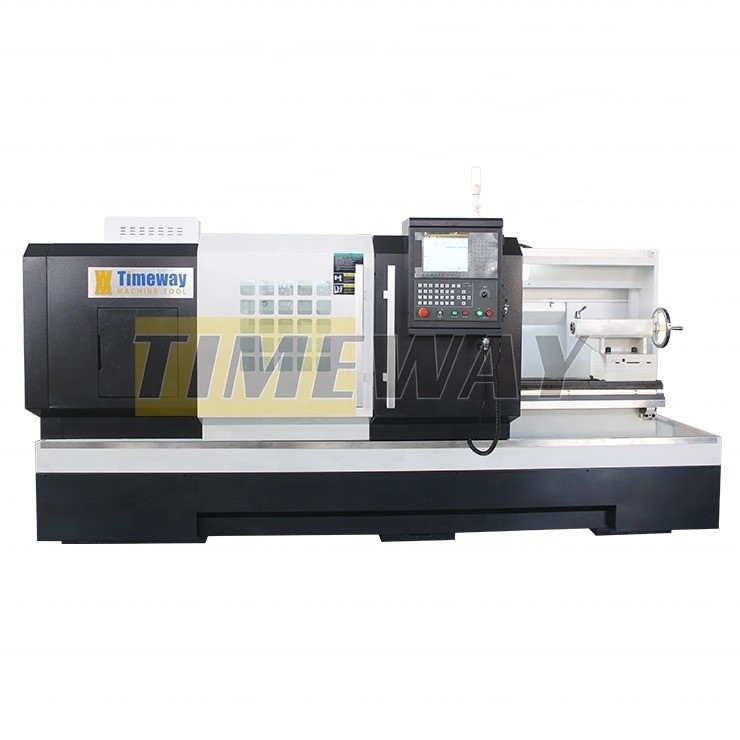

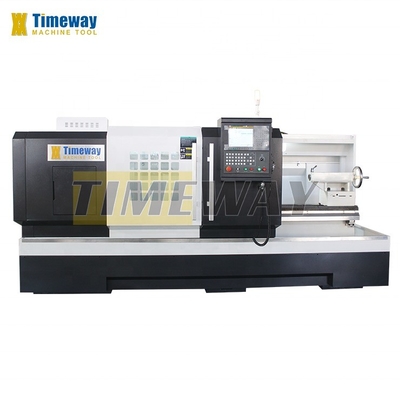

Flat Bed CNC Lathe
Features:
1. They are CNC horizontal lathes. Spindle speed is changed mechanically in three gears together with control of a frequency changer.

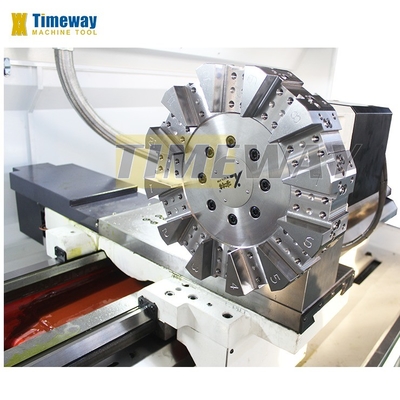

2. Complete with 4-station(standard)/6-station turret(optional), the lathes are available for different cuttings. The sliding door ensures the operators' safety.

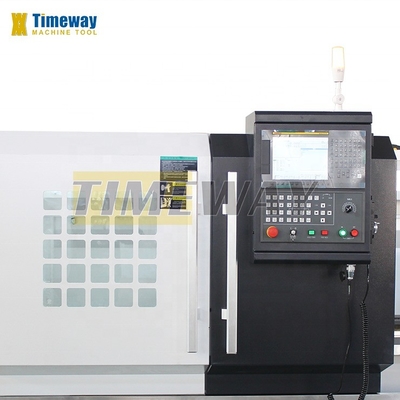

3. CNC systems such as FANUC 0i mate TD, Sinumerik 802D or GSK980TD system etc. is provided on request.
4. These lathes can perform internal and external cylindrical turning, arbitrary taper turning, facing and threading.
5. They are suitable for various middle or small batch production, especially for complicated and high accuracy workpieces.
1. They are CNC horizontal lathes. Spindle speed is changed mechanically in three gears together with control of a frequency changer.
2. Complete with 4-station(standard)/6-station turret(optional), the lathes are available for different cuttings. The sliding door ensures the operators' safety.
3. CNC systems such as FANUC 0i mate TD, Sinumerik 802D or GSK980TD system etc. is provided on request.
4. These lathes can perform internal and external cylindrical turning, arbitrary taper turning, facing and threading.
5. They are suitable for various middle or small batch production, especially for complicated and high accuracy workpieces.
Specification | Unit | CK400 | CK500 | ||
Capacity | Max. swing over bed | mm | Φ400 | Φ500 | |
Max. swing over cross slide | mm | Φ200 | Φ280 | ||
Max. turning dia. | mm | Φ400 / Φ350* | Φ500/Φ350* | ||
Distance between centers | mm | 710/960/1460/1960/(620/870/1370/1870)* | |||
Max.turning length | mm | 570/820/1320/1820/(500/750/1250/1750)* | |||
Spindle | Spindle nose | ISO 702/IID8 or ISO 702/IA2-8 | |||
Spindle thru-hole | mm | Φ77 | |||
Spindle speeds | r/min | 3 gears stepless 21-1620, H:162-1620 M:66-660 L:21-210 | |||
Spindle motor power | kw | 7.5 | |||
Tailstock | Tailstock quill diameter | mm | Φ75 | ||
Tailstock quill taper | MT No. | Morse No.5 | |||
Max.quill travel | mm | 150 | |||
Tailstock cross movement | mm | ±15 | |||
Turret | X/Z-axis rapid traverse rate | m/min | 6/12 | ||
Number of tool stations | 4(standard)/6(optional) | ||||
Tool section | mm | 25X25 | |||
Turret travel | mm | X-axis: 275 Z-axis: 650/900/1400/1900 | |||
Others | Dimensions(LXWXH) | mm | 2250/2500/3000/3500x1370x1690 | ||
Package dimensions(LxWxH) | mm | 2550/2800/3300/3800x1920x2200 | |||
Net weight | kg | 2050/2100/2150/2200 | 2100/2150/2200/2260 | ||
