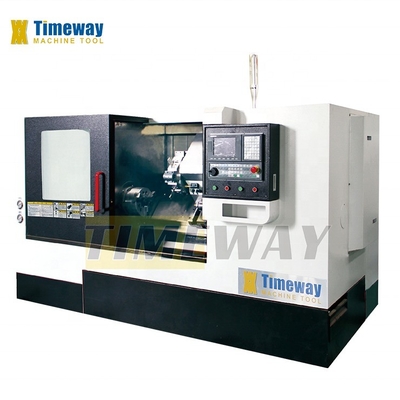

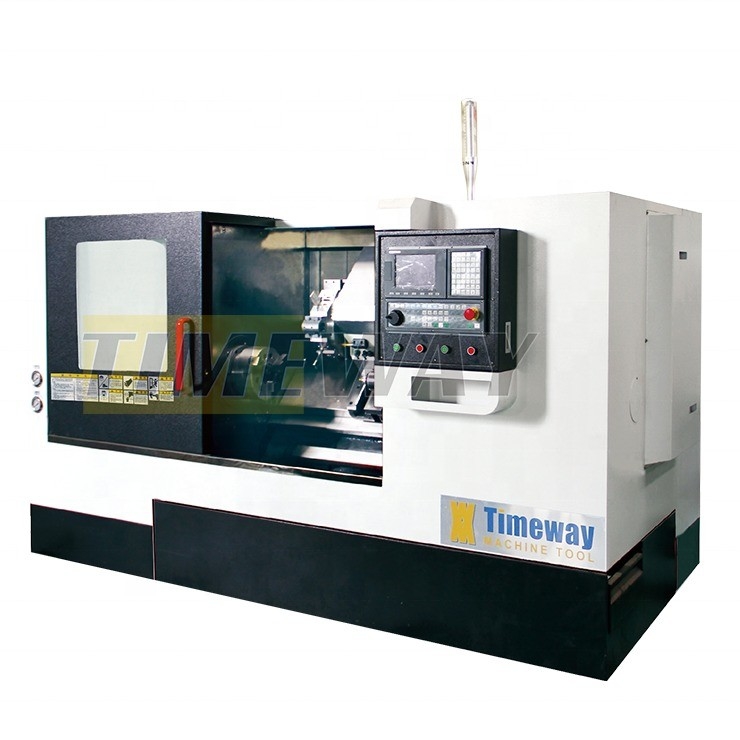

2022 Automatic Turning Lathe with 4 Tool Post Stations and 7.5kW Spindle Motor Power
Product Details:
| Place of Origin: | China |
| Brand Name: | timac |
| Model Number: | ck32/ck36/ck45 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $80,000.00/sets 1-2 sets |
| Packaging Details: | Woode case/Pallet |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | TURNING CENTER | Max. Length Of Workpiece (mm): | 1000 |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 200 Mm |
| Spindle Motor Power(kW): | 7.5 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 295 Mm |
| Travel (Z Axis)(mm): | 1500 Mm | Positioning Accuracy (mm): | ±0.003 |
| Repeatability (X/Y/Z) (mm): | ±0.003 | Voltage: | 220-380v |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 2700 | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max, Swing Over Bed: | 420 | Max. Swing Over Cross Slide: | 220 |
| Standard Turning Diameter: | 210 | Max,turning Length: | 350 |
| Spindle Speed: | 3500 | Spincle Nose: | A2-5 |
| Hydraulic Chuck Sizc: | 160 | X/Z-axis Rapid Feed Speed: | 20/12 |
| Hydraulic Cool Post Type: | 80-8T | Condition: | New |
| Spindle Bore(mm): | 105 | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Egypt, Turkey, United States, France, Viet Nam, Brazil, Indonesia, Spain, Morocco, Algeria, Romania, South Africa, Kazakhstan, Kyrgyzstan, Uzbekistan | Marketing Type: | Other |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Gearbox | Max. Turned Length (mm): | 250 |
| Max. Spindle Speed (r.p.m): | 1600 R.p.m | Port: | China Port |
Product Description
Products Description
SPECIFICATION | UNIT | CK-32 | CK-36 | CK-45 | ||
Max, swing over bed | mm | 420 | 550 | 500 | ||
Max. swing over cross slide | mm | 220 | 220 | 220 | ||
Standard turning diameter | mm | 210 | 210 | 210 | ||
Max. turning diameter | mm | 320 | 340 | 360 | ||
Max,turning length | mm | 350 | 500 | 750 | ||
Spindle speed | rpm | 3500 | 3000 | 2500 | ||
Spincle nose | - | A2-5 | A2-6 | A2-6 | ||
Spindle bore | mm | 56 | 62 | 66 | ||
Hydraulic chuck sizc | mm | 160 | 200 | 200 | ||
Cross travel(X) | mm | 210 | 230 | 220 | ||
Longitudinal travel(Z) | mm | 450 | 600 | 850 | ||
X/Z-axis rapid feed speed | m/min | 20/12 | 24/24 | 20/20 | ||
Hydraulic cool post type | 80-8T | 8O-AT | ||||
Tool section size | mm | 25×25/32 | 25x25/32 | 25x25/32 | ||
Tailstock quill diameter | mm | 52 | 110 | 110 | ||
Tailstock quill travel | mm | 60 | 100 | 100 | ||
Tailstock quill taper | MT4 | MT5 | MT4 | |||

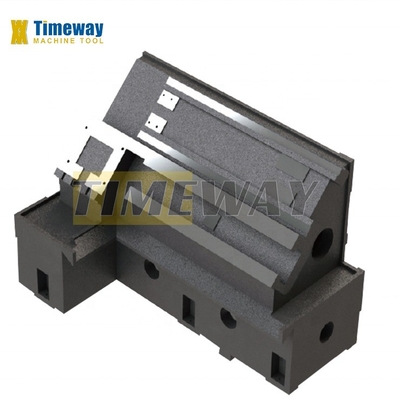

Bed structure | 45° Inlegral bed | 45° Integral bed | 45* Integral bed | |||
Guideway type | Linear/Sliding | Linear/Sliding | Linear/Sliding | |||
Main motor power | kw | 7.5 | 11 | 7.5 | ||
Power supply | kva | 30 | 25 | 30 | ||
Machine dimensions(LxWxH) | mm | 2600x1800x1600 | 2900x1800x1750 | 2900x1800x1600 | ||
Machine weight | kg | 2700 | 3200 | 3200 | ||
