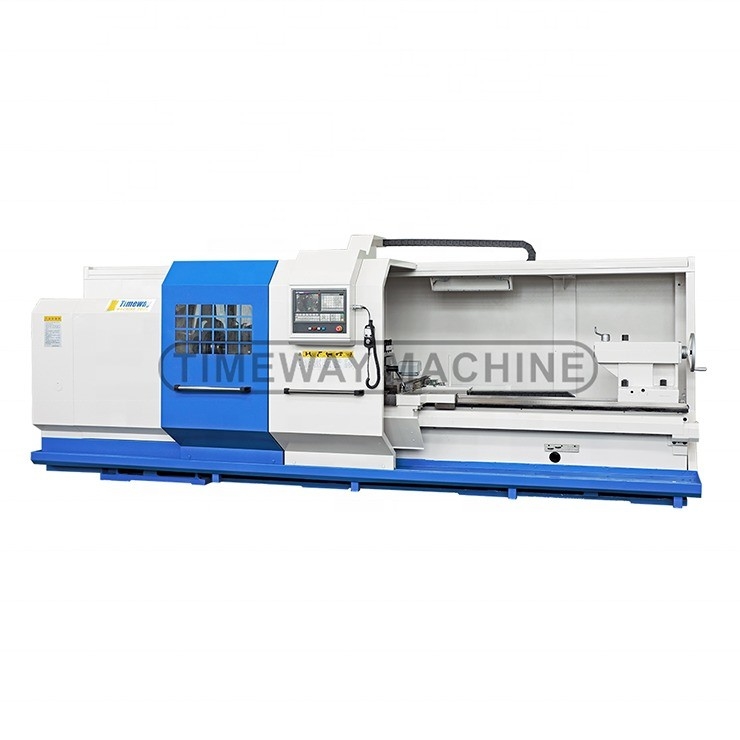

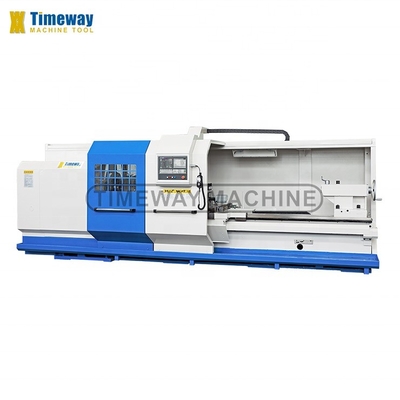

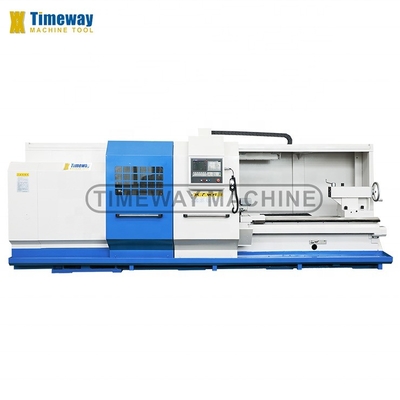

8000mm Max. Workpiece Length Cnc Lathe for Type Cnc Automatic and Perfect Design Power
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | AK800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $110,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 8000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 500 Mm | Spindle Motor Power(kW): | 15 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 420 Mm | Travel (Z Axis)(mm): | 500 Mm |
| Dimension(L*W*H): | 104852219x1830 | Voltage: | 220V/380V |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 9750 | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max.swing Over Bed: | 800 | Max..swing Over Cross Slide: | 480 |
| Distance Between Centers: | 1000/1500/2000/3000/4000/5000/6000/8000/- | Max.turning Length: | 850/1350/1850/2850/3850/4850/5850/7850/- |
| Bed Width: | 600 | Loading Capacity: | 3000 |
| Spindle Nose: | C11(C15 Optional) | Spindle Bore: | 100 (140 Optional) |
| Spindle Taper: | Metric 120 (Metric 150 Optional) | Center Height: | 400mm |
| Condition: | New | Spindle Bore(mm): | 100 |
| Toolpost Brand: | Pragati | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Egypt, Turkey, Italy, Brazil, Peru, Indonesia, Mexico, Russia, Argentina | Marketing Type: | Ordinary Product |
| Core Components: | Bearing, PLC | Max. Turned Length (mm): | 7850 |
| Max. Spindle Speed (r.p.m): | 800 R.p.m | Port: | China Port |
Product Description
Products Description
Features:
-This series CNC lathe adopts standard cast iron (HT300) a molding casting, after the second aging treatment, it has feature of stable.performance; guide-way width (600mm), good rigidity, anti-vibration ability; Processed by medium-frequency hardening (hardness more than SHAW 68) and machined by the imported guideway grinding machine, to ensure a long service life, high precision and good maintainability. The bed (from 1000mm-5000mm) is one-piece type, 6000mm and above bed is two pieces butted.
-This series machine spindle bore has two kinds, one is Φ100mm, the other is Φ140mm . Spindle bearing uses China's well-known bearing made by HRB, LYC and ZWZ, aslo can be configured NSK, SKF and other imported bearings. Bore diameter of Φ140mm to meet the larger bar or tube parts processing.
-Automatic hydraulic 4 shifts exchange controlled by M-code, automatically stepless speed change controlled by the S-code selection; Manual 4steps changing speed controlled by hand, automatically stepless speed change controlled by the S-code selection; Manual 18 steps changing speed controlled by hand.
-The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The front end of the main shaft adopts a three-support structure of a two-way angular contact ball bearing. Improve accuracy and increase rigidity. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise.

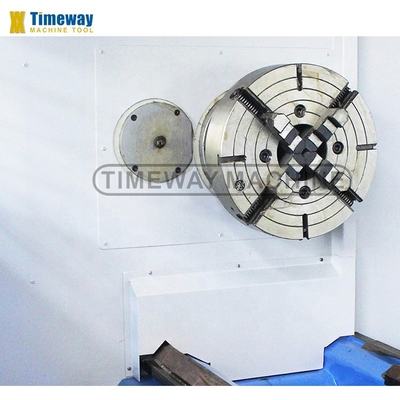

-The main motor is 15kw high-power frequency motor; equipped with Ф400 standard manual three-jaw self-centering chuck, according to endusers requirement different size manual, pneumatic and hydraulic three-jaw and four- jaw chuck can be chosen.

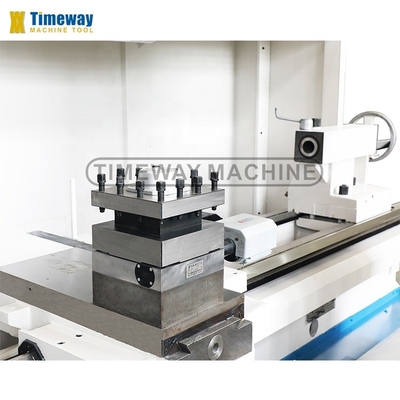

-All the lathe machines are equipped with electric turret, free lifting, tool change quickly and easily, there are vertical 4 and 6 station, horizontal 6 station and other electric turret for choice.
-Before delivery all lathe machines will be tested by British RENISHAW laser detector for dynamic accuracy detection and compensation, so the lathe machine has a high positioning accuracy and repeat positioning accuracy.

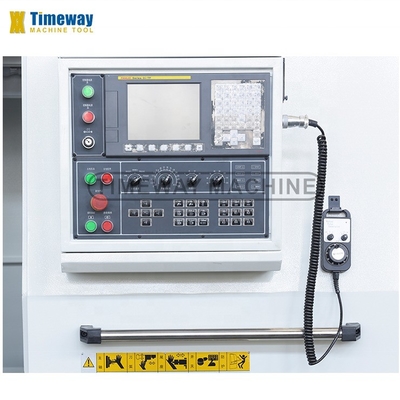

-CNC system uses the internationally renowned FANUC, SIEMENS or China GSK AC servo control system. The lathe machine adopts semiclosed protection or fully enclosed protection, equipped with emergency stop safety button, when the machine suddenly encountered a sudden power failure or other failures, due to the special design of the control circuit, it can be self-protection to ensure that the
machine and personnel safety. The operation panel is about 1500mm from the ground, highly moderate, ergonomic, pleasant and easy to operate and understand the operation of the machine.
-This series of lathe machine is used widely, flexible operation, suitable for processing all kinds of complex shapes of shafts, sets, disk parts, such as turning inner and outer cylindrical surface, conical surface, circular surface, end face, grooving, chamfer, threading,
-Especially for multi-species, small batch of turns processing, process adaptability, high processing efficiency, low scrap rate, good product consistency, easy programming, simple operation, reducing the technical requirements of workers, it is the ideal medium mechanical processing
-This series CNC lathe adopts standard cast iron (HT300) a molding casting, after the second aging treatment, it has feature of stable.performance; guide-way width (600mm), good rigidity, anti-vibration ability; Processed by medium-frequency hardening (hardness more than SHAW 68) and machined by the imported guideway grinding machine, to ensure a long service life, high precision and good maintainability. The bed (from 1000mm-5000mm) is one-piece type, 6000mm and above bed is two pieces butted.
-This series machine spindle bore has two kinds, one is Φ100mm, the other is Φ140mm . Spindle bearing uses China's well-known bearing made by HRB, LYC and ZWZ, aslo can be configured NSK, SKF and other imported bearings. Bore diameter of Φ140mm to meet the larger bar or tube parts processing.
-Automatic hydraulic 4 shifts exchange controlled by M-code, automatically stepless speed change controlled by the S-code selection; Manual 4steps changing speed controlled by hand, automatically stepless speed change controlled by the S-code selection; Manual 18 steps changing speed controlled by hand.
-The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. The front end of the main shaft adopts a three-support structure of a two-way angular contact ball bearing. Improve accuracy and increase rigidity. The gears in the headstock are quenched and grounded to ensure accurate transmission and low noise.
-The main motor is 15kw high-power frequency motor; equipped with Ф400 standard manual three-jaw self-centering chuck, according to endusers requirement different size manual, pneumatic and hydraulic three-jaw and four- jaw chuck can be chosen.
-All the lathe machines are equipped with electric turret, free lifting, tool change quickly and easily, there are vertical 4 and 6 station, horizontal 6 station and other electric turret for choice.
-Before delivery all lathe machines will be tested by British RENISHAW laser detector for dynamic accuracy detection and compensation, so the lathe machine has a high positioning accuracy and repeat positioning accuracy.
-CNC system uses the internationally renowned FANUC, SIEMENS or China GSK AC servo control system. The lathe machine adopts semiclosed protection or fully enclosed protection, equipped with emergency stop safety button, when the machine suddenly encountered a sudden power failure or other failures, due to the special design of the control circuit, it can be self-protection to ensure that the
machine and personnel safety. The operation panel is about 1500mm from the ground, highly moderate, ergonomic, pleasant and easy to operate and understand the operation of the machine.
-This series of lathe machine is used widely, flexible operation, suitable for processing all kinds of complex shapes of shafts, sets, disk parts, such as turning inner and outer cylindrical surface, conical surface, circular surface, end face, grooving, chamfer, threading,
-Especially for multi-species, small batch of turns processing, process adaptability, high processing efficiency, low scrap rate, good product consistency, easy programming, simple operation, reducing the technical requirements of workers, it is the ideal medium mechanical processing
SPECIFICATION | UNIT | AK-800 |
Max.swing over bed | mm | 800 |
Max..swing over cross slide | mm | 480 |
Distance between centers | mm | 1000/1500/2000/3000/4000/5000/6000/8000/- |
Max.turning length | mm | 850/1350/1850/2850/3850/4850/5850/7850/- |
Bed width | mm | 600 |
Loading capacity | kg | 3000 |
Spindle nose | mm | C11(C15 optional) |
Spindle bore | mm | 100 (140 optional) |
Spindle taper | Metric 120 (Metric 150 optional) | |
Spindle speed (Manual steps) | rpm | 6-750（18) |
Spindle speed (Manual 4steps stepless) | rpm | 8-800 |
Spindle speed (Hydraulic 4steps, stepless) | rpm | 8-800 |
Center height | mm | 400 |
Chuck size | mm | 400 |
X/Z-axis min.feed unit | mm | 0.001/0.001 |
X/Z-axis rapid feed speed | mm/min | 4000/5000 |
Cross travel (X) | mm | 420 |
Tool post type | V4 (V6/H6/H8 optional) | |
Tool change time | S | 2.4 |
Turret repeat positioning accuracy | mm | 0.008 |
Tool section size | mm | 40x40 |
Tailstock quill diameter | mm | 100 |
Tailstock quill travel | mm | 250 |
Tailstock quill taper | MT6 (MT5 optional) | |
Working accuracy | IT6 | |
Surface roughness | pm | Ra1.6 |
Main motor power | kw | 15 |
Machine weight | kg | 4800/5300/5600/6000/6800/7600/8250/9750/- |
Machine length | mm | 3605/4105/4645/5600/6430/7600/8485/10485/- |
Machine width | mm | 2219 |
Machine height | mm | 1830 |
STANDARD ACCESSORIES: | OPTIONAL ACCESSORIES: |
FANUC/GSK/SIEMENS CNC system, 3-jaw chuck, 4-station electric tool-post, Work lamp, Cooling system, Semi-closed guard, Manual pulse generator (MPG), Dead centers, Oil gun, Pilot lamp, Automatic lubrication pump, Manual moving tailstock, Tools & tool-box, Leveling wedge & bolts, Operation manual (English). | 4-jaw chuck, Steady rest, Follow rest, Hydraulic chuck, Penumatic chuck, Hydraulic tailstock, 6-station tool-post, Live centers, Air conditioner, Chip conveyor, Full guard. |
