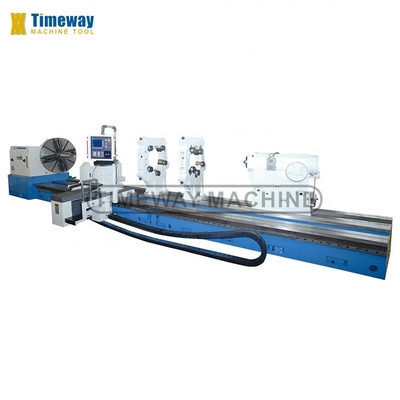

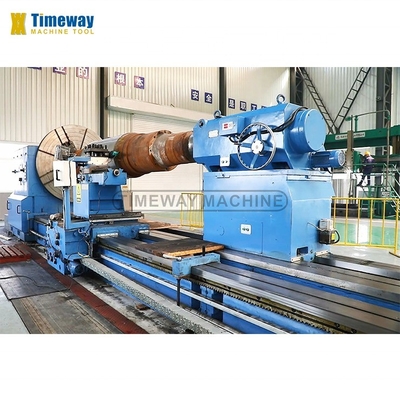

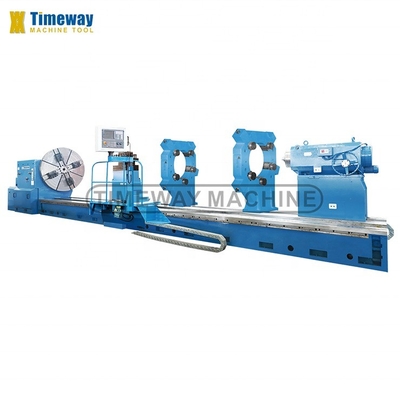

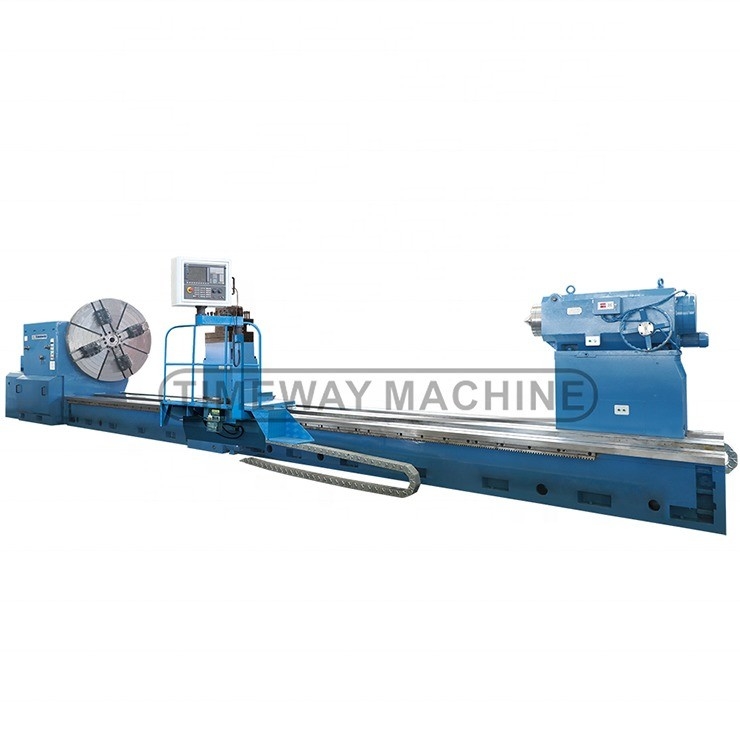

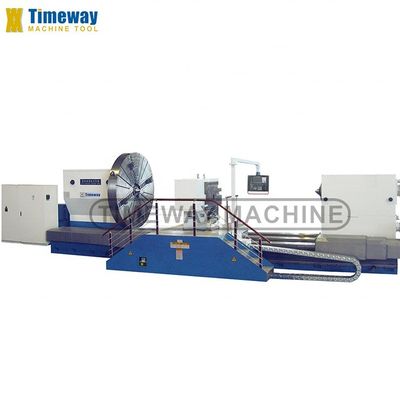

20000mm Max. Turned Length CNC Metal Turning Full Automatic Flat Bed Lathe for Brands
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | AK-1600H/AK-2000H |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $110,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 20000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 40000 | Width Of Bed (mm): | 2200 Mm |
| Spindle Motor Power(kW): | 75 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 20000 Mm |
| Travel (Z Axis)(mm): | 725 Mm | Dimension(L*W*H): | 20000x3000x4000 |
| Voltage: | 220v/380v | CNC Control System: | FANUC |
| Tool Post Stations: | 4 | Weight (KG): | 30000 |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Swing Diameter Over Bed: | 1700mm |
| Max. Swing Diameter Over Carriage: | 1250mm | Max. Length Of Workpiece: | 1000-16000mm |
| Loading Capacity: | 25t | Width Of Bed: | 1100mm |
| Front Bearing Diameter Of Spindle: | 280mm | Spindle Bore: | 100mm |
| Spindle Taper: | Metric 140 | Spindle Speed Steps: | Manual 4steps, Stepless In Steps |
| Spindle Speed Range: | 2-200 Rpm | Condition: | New |
| Spindle Bore(mm): | 100 | Toolpost Brand: | Hongda |
| Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, R | Core Components: | Bearing, Motor, PLC, Engine |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Mould, Mental Process | Max. Turned Length (mm): | 20000 |
| Marketing Type: | Hot Product | Max. Spindle Speed (r.p.m): | 160 R.p.m |
| Port: | China Port | ||
Product Description
Products Description
Application:
This pneumatic forging hammer is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forge, welding, bending and twisting. It is also used for forging in bolster dies.
Features:
--- This lathe bed is whole box-shaped three guide-way structure, adopting high standard cast iron (HT300) one molding casting, after the second aging treatment, it has the feature of stable performance; guide-way width (1600mm), good rigidity, anti-vibration ability.
---The main mechanism is driven by the 75KW DC motor, using the method of adjustable magnetic regulation, adjustment voltage and hybrid speed regulating mode, the ratio is 1: 22.2, speed change is three steps, mechanical and electrical integrated speed ratio is 1: 200, spindle speed range is 0.8 ~ 160r / min and stepless speed change.
---The spindle bore diameter is large, headstock adopts the split type structure, and the contact rigidity is improved after scraping. The spindle adopts the front and rear bearing structure, so that the radial and axial stiffness and rotation accuracy are high.
---Heavy duty four-jaw chuck. Standard configuration has two steady rest, one is closed type, the other is open type.
---It is equipped with protective device and emergency stop safety button, when the machine suddenly encountered a sudden power failure or other failures, due to the special design of the control circuit, it can be self-protection to ensure that the lathe and personnel safety.
---The tailstock is composed of upper and lower body, the upper body is equipped with a sleeve, a spindle and a pressure sensor, and the lower body is equipped with a rapid moving mechanism.
---This series lathe is based on the international market and the latest development trend of CNC lathes with semi-closed-loop control of the popular CNC heavy-duty lathes, 1600mm wide flat bed guide way provide users with a larger workpiece load, it is the ideal mechanical processing equipment for production of large parts .
This pneumatic forging hammer is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forge, welding, bending and twisting. It is also used for forging in bolster dies.
Features:
--- This lathe bed is whole box-shaped three guide-way structure, adopting high standard cast iron (HT300) one molding casting, after the second aging treatment, it has the feature of stable performance; guide-way width (1600mm), good rigidity, anti-vibration ability.
---The main mechanism is driven by the 75KW DC motor, using the method of adjustable magnetic regulation, adjustment voltage and hybrid speed regulating mode, the ratio is 1: 22.2, speed change is three steps, mechanical and electrical integrated speed ratio is 1: 200, spindle speed range is 0.8 ~ 160r / min and stepless speed change.
---The spindle bore diameter is large, headstock adopts the split type structure, and the contact rigidity is improved after scraping. The spindle adopts the front and rear bearing structure, so that the radial and axial stiffness and rotation accuracy are high.
---Heavy duty four-jaw chuck. Standard configuration has two steady rest, one is closed type, the other is open type.
---It is equipped with protective device and emergency stop safety button, when the machine suddenly encountered a sudden power failure or other failures, due to the special design of the control circuit, it can be self-protection to ensure that the lathe and personnel safety.
---The tailstock is composed of upper and lower body, the upper body is equipped with a sleeve, a spindle and a pressure sensor, and the lower body is equipped with a rapid moving mechanism.
---This series lathe is based on the international market and the latest development trend of CNC lathes with semi-closed-loop control of the popular CNC heavy-duty lathes, 1600mm wide flat bed guide way provide users with a larger workpiece load, it is the ideal mechanical processing equipment for production of large parts .
Specifications | Units | AK-1600H | AK-2000H | |
Capacity | ||||
Max. swing diameter over bed | mm | 1700 | 2100 | |
Max. swing diameter over carriage | mm | 1250 | 1650 | |
Max. length of workpiece | mm | 1000-16000 | 1000-16000 | |
Loading capacity | t | 25 | 25 | |
Width of bed | mm | 1100 | 1100 | |
Spindle | ||||
Front bearing diameter of spindle | mm | 280 | 280 | |
Spindle bore | mm | 100 | 100 | |
Spindle taper | - | Metric 140 | Metric 140 | |
Spindle speed steps | - | Manual 4steps, stepless in steps | Manual 4steps, stepless in steps | |
Spindle speed range | rpm | 2-200 | 2-200 | |
Main motor power | kw | 55 | 55 | |
Feed | ||||
Longitudinal servo motor torque (SIEMENS) | N.m | 48 | 48 | |
Cross servo motor torque (SIEMENS) | N.m | 36 | 36 | |
Longitudinal servo motor torque (FANUC) | N.m | 50 | 50 | |
Cross servo motor torque (FANUC) | N.m | 40 | 40 | |
Section of tool shank | mm | 60×60 | 60×60 | |
Number of stations | - | V4 | V4 | |
Repeat positioning accuracy of turret | mm | 0.01 | 0.01 | |
Longitudinal rapid feed speed | mm/min | 4000 | 4000 | |
Cross rapid feed speed | mm/min | 4000 | 4000 | |
Longitudinal feed speed | mm/min | 1-2000 | 1-2000 | |
Cross feed speed | mm/min | 1-2000 | 1-2000 | |
Tailstock | ||||
Tailstock quill diameter | mm | 280 | 280 | |
Tailstock quill taper | - | 1:7 | 1:7 | |
Tailstock quill travel | mm | 300 | 300 | |
