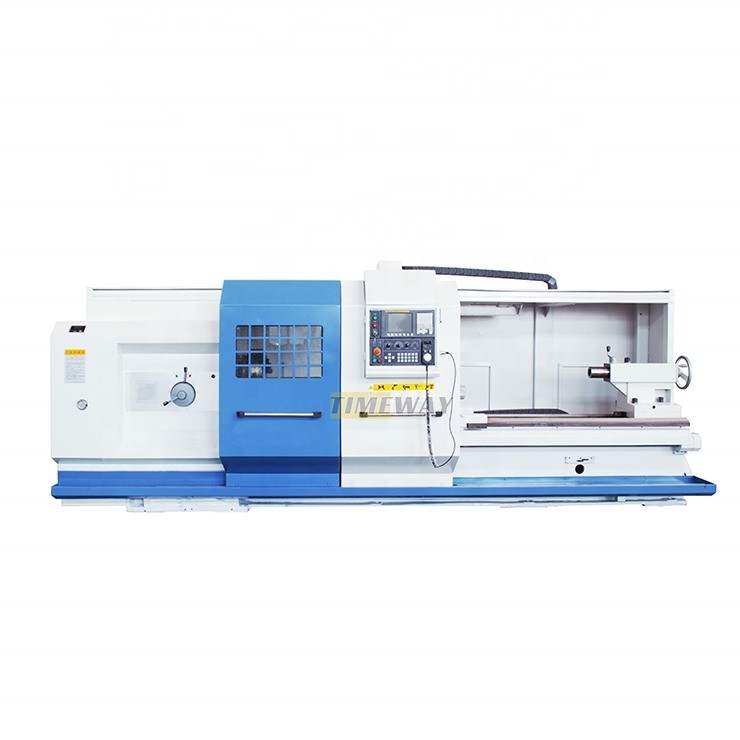

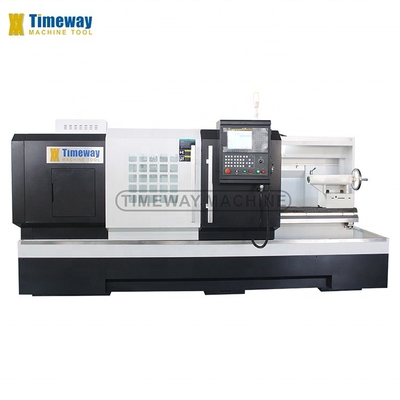

Professional Full Automatic Flat Bed Metal Chinese Horizontal Lathe for Industrial
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | CK-400/CK-500/CK-660 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 2000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 500 Mm | Spindle Motor Power(kW): | 5.5 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 295 Mm | Travel (Z Axis)(mm): | 750 Mm |
| Dimension(L*W*H): | Dfferent | Voltage: | 220V/380V |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 2800 | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max.swing Over Bed: | 400 (420) | Max.. Swing Over Cross Slide: | 210 |
| Distance Between Centers: | 750/1000 | Max.turning Length: | 750/1000 |
| Bed Width: | 335 | Spindle Nose: | A2-6 |
| Spindle Bore: | 58 | Spindle Taper: | MT6 |
| Spindle Speed (Manual Steps): | 60-2000(3) | Center Height: | 210 |
| Condition: | New | Spindle Bore(mm): | 58 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Egypt, France, Viet Nam, India, Morocco, Ukraine, Uzbekistan |
| Marketing Type: | Ordinary Product | Core Components: | Gear, PLC, Engine |
| Max. Turned Length (mm): | 2000 | Max. Spindle Speed (r.p.m): | 2000 R.p.m |
| Port: | China Port | ||
Product Description
Products Description
SPECIFICATION | UNIT | CK-400 | CK-500 | CK-660 |
Max.swing over bed | mm | 400 (420) | 500 | 660 |
Max.. swing over cross slide | mm | 210 | 290 | 430 |
Distance between centers | mm | 750/1000 | 1000/1500/2000 | 1000/1500/2000 |
Max.turning length | mm | 750/1000 | 1000/1500/2000 | 1000/1500/2000 |
Bed width | mm | 335 | 390 | 390 |
Spindle nose | mm | A2-6 | A2-8 | D10 |
Spindle bore | mm | 58 | 82 | 105 |
Spindle taper | MT6 | Metric 90 | Metric 90 | |
Spindle speed (Manual steps) | rpm | 60-2000（3) | 45-1600 （3) | 45-1600(3) |
Center height | mm | 210 | 250 | 330 |
Chuck size | mm | 200 | 250 | 320 |
Cross travel (X) | mm | 295 | 295 | 365 |
Longitudinal travel (Z) | mm | 750 | 1000/1500/2000 | 1000/1500/2000 |
X/Z-axis rapid feed speed | m/min | 8/10 | 8/12 | 8/12 |
X/Z-axis min.feed unit | mm | 0.001 | 0.001 | 0.001 |
X/Z-axis feed motor torgue | NM | 5/7 | 5/7 | 7.5/10 |
Tool post type | V4 | V4 | V4 | |
Tool section size | mm | 25x25 | 25x25 | 25x25 |
Tailstock quill diameter | mm | 65 | 75 | 75 |
Tailstock quill travel | mm | 150 | 150 | 150 |
Tailstock quill taper | MT4 | MT5 | MT5 | |
Main motor power | kw | 5.5 | 7.5 | 11/15 |
Coolant pump power | kw | 0.12 | 0.12 | 0.12 |
Machine weight | kg | 1800/1900 | 2100/2300/2600 | 2100/2500/2800 |

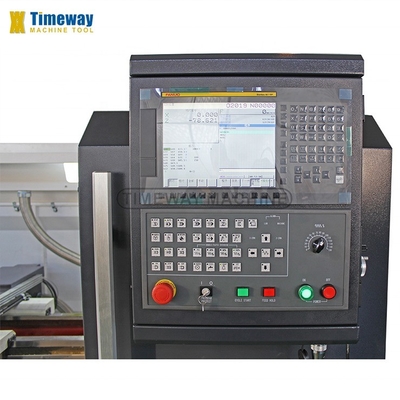

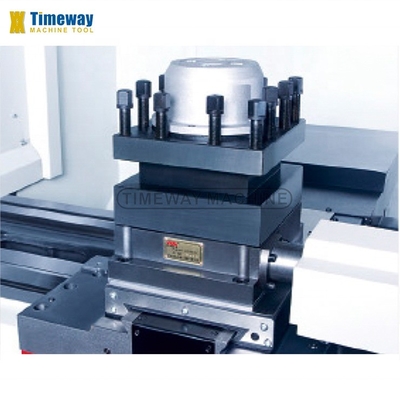

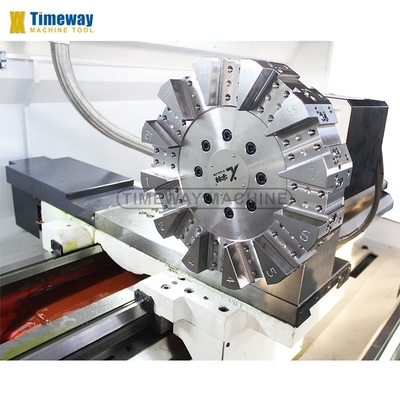

· FANUC CNC system, · Manual system, · Work lamp, · Manual 3-jaw chuck, · 4-station electronic tool post, · Electronic handwheel (MPG), · Lubrication system, · Cooling · Pilot lamp, · Protection guard, · Heat exchanger, · Leveling blocks & bolts, · Tools & tool-box, · Operation manuals | · GSK, SIEMENS CNC system, · Hydraulic chuck, · 6-station tool post, · Air conditioner, ·Tool setter, ·Chain type chip conveyor |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
